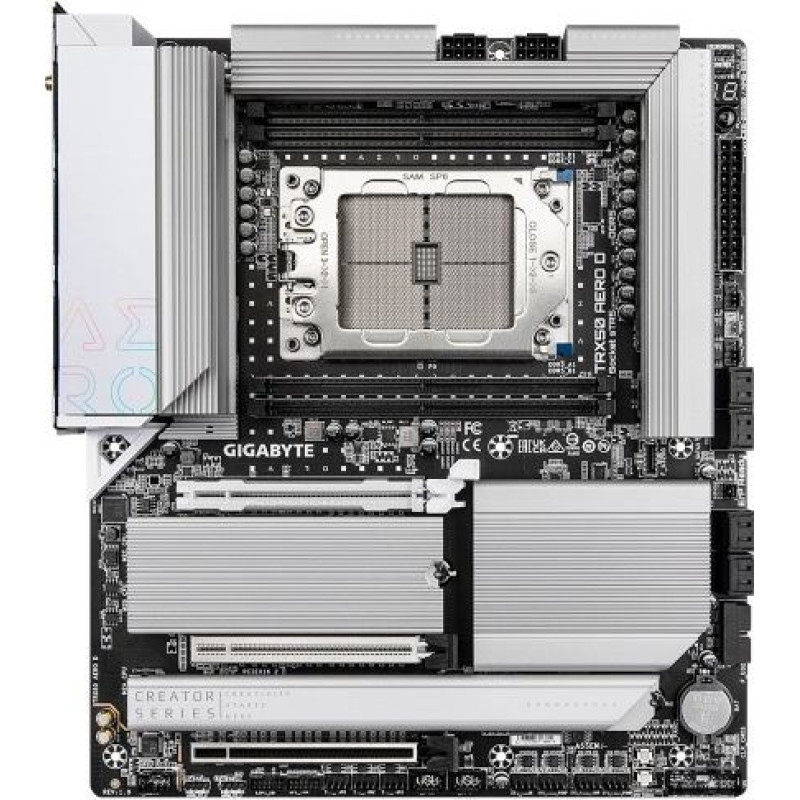

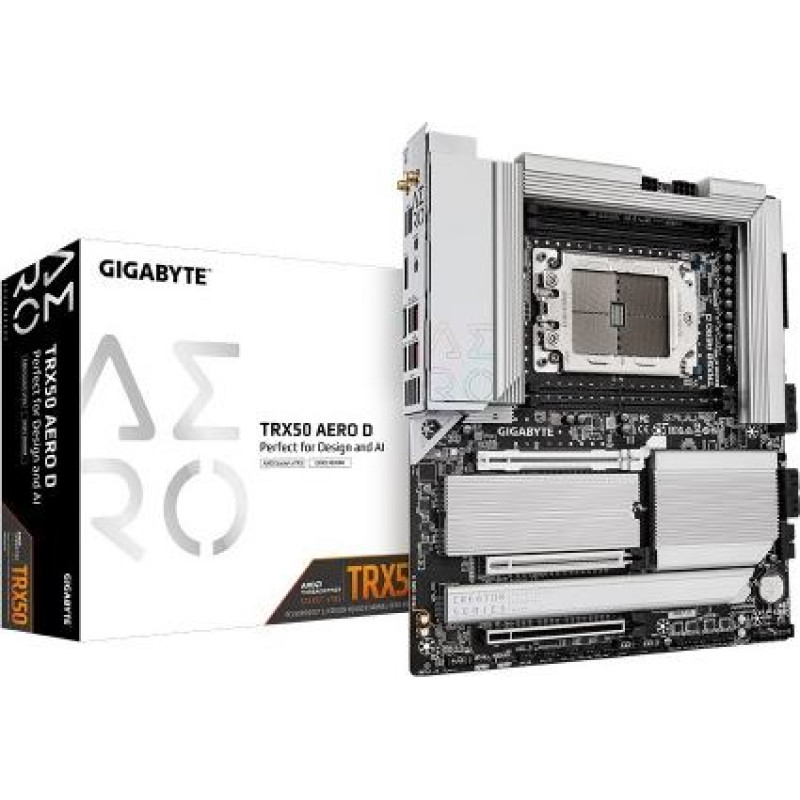

Gigabyte TRX50 AERO D sTR5 4DDR5 HDMI USB/4M.2 eATX

GIGABYTE

Gigabyte TRX50 AERO D sTR5 4DDR5 HDMI USB/4M.2 eATX

Delivery to the store in 5 to 7 business days.
ID: 170525
Model TRX50 AERO D
Barcode 4719331859480
606.51€
(Ex Tax: 489.12€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAT5TRX5E01
svītrkods: 4719331859480
Description
SKUKBGBAAT5TRX5E01
Barcode4719331859480
ModelTRX50 Aero D
CPU socketSocket sTR5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD TRX50
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6400 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7600 MHz
Memory bus frequency6000 MHz
Memory bus frequency5600 MHz
Memory bus frequency5200 MHz
Memory bus frequency4800 MHz
Memory bus frequency7800 MHz
Memory bus frequency4400 MHz
Max memory size1
Expansion slots3 x PCIe x 16
Expansion slots2 x PCIe 5.0 x16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices8
RAIDYes
Detailed data on disk/drive interfacesCPU:   1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 type 25110/2280 SSDs) (M2C_CPU) 2 x M.2 connectors (Socket 3, M key, support for PCIe 5.0 x4/x2 SSDs type 22110/2280) (M2A_CPU/M2B_CPU) 1 x M.2 connector (Socket 3, M key, support for 2280 PCIe 4.0 x4/x2 SSDs) (M2D_CPU)   Processor + chipset:   8 SATA 6 Gb/s connectors   RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
Sound cardRealtek ALC4080 codec (back panel audio) DTS:X Ultra support High quality sound 2-channel Realtek ALC897 codec (front panel audio)
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceMarvell AQtion AQC113C 10GbE LAN Chip (10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s) (LAN1) Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) (LAN) Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for the 11be 320 MHz wireless standard
USB ports at back panel10
USB ports on motherboard4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x MIC
External connectors2 x SMA
External connectors1 x Q-Flash Plus button
External connectors2 x USB4 Type-C
External connectors2 x RJ-45
External connectors4 x USB 3.0
External connectors1 x Line In
External connectors1 x DisplayPort
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset button
Onboard connectors2 x temperature sensor
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors8 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x TPM header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB C
BIOSFlash memory 1 x 256 Mbit Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorE-ATX
Dimensions30.5 x 26.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
