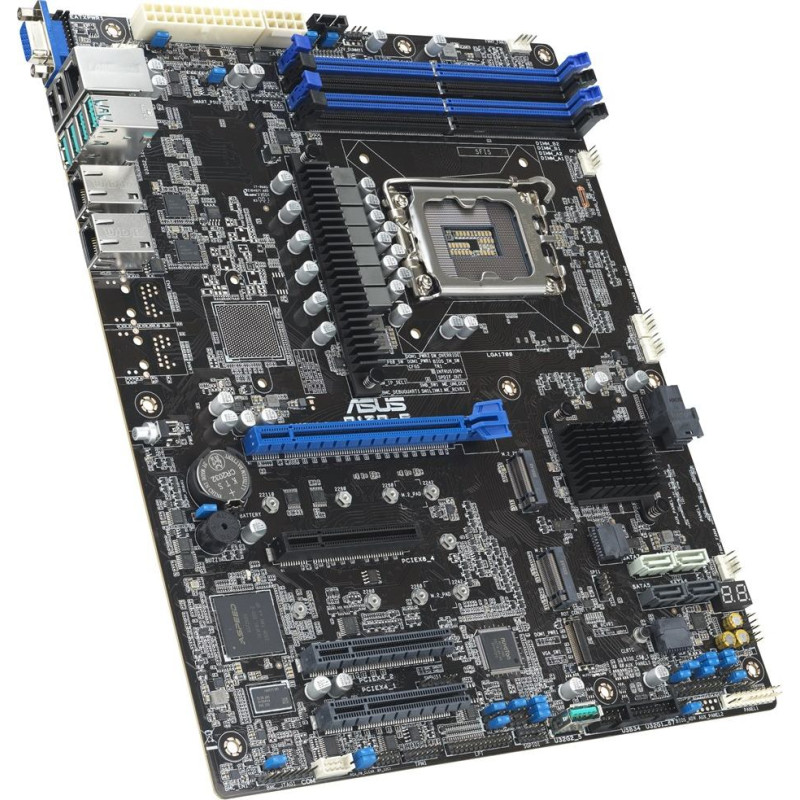

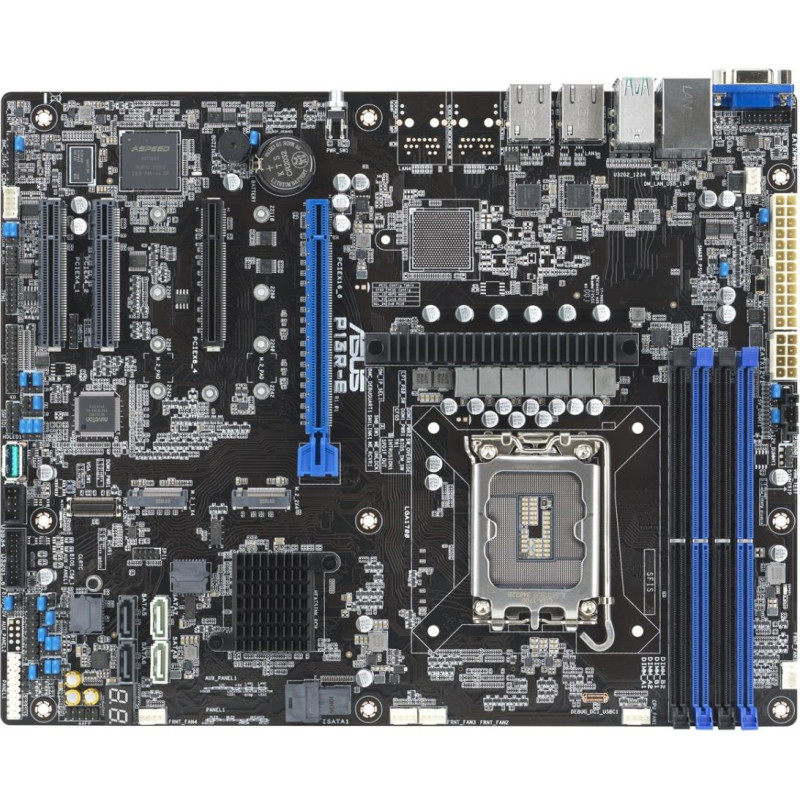

Asus P13R-E Intel C266 LGA 1700 ATX

Asus P13R-E Intel C266 LGA 1700 ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 101186
Product Code: 90SB0CS0-M0UAY1
Barcode 4711636234283
420.88€
(Ex Tax: 339.42€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1700
Compatible processor seriesIntel Xeon E
Processor manufacturerIntel
Processor socketLGA 1700
Parallel processing technology supportNot supported
Product colourBlack
PC health monitoringTemperature
Motherboard chipset familyIntel
Component forServer
Power source typeATX
Cooling typePassive
Motherboard chipsetIntel C266
Motherboard form factorATX
Supported memory clock speeds4400 MHz
Maximum internal memory128 GB
Memory channelsDual-channel
Maximum internal memory per slot32 GB
Memory slots typeDIMM
ECC сompatibilityECC
Supported memory clock speed (max)4400 MHz
Number of memory slots4
Supported memory typesDDR5-SDRAM
Operating temperature (T-T)10 - 50 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C
Width305 mm
Depth244 mm
Height68 mm
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
EPS power connector (8-pin)Yes
TPM connectorYes
Chassis intrusion connectorYes
Number of SATA III connectors8
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel connectorYes
USB 2.0 connectors1
Number of chassis fan connectors6
ATX Power connector (24-pin)Yes
Number of EPS power connectors (8-pin)1
Number of COM connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
12V power connectorYes
Package width341 mm
Package weight1.5 kg
Package depth281 mm
Package height78 mm
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, SATA III
Number of HDDs supported8
Number of storage drives supported10
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
VGA (D-Sub) ports quantity1
PCI Express x4 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
1st M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
PCI Express x8 (Gen 5.x) slots1
Number of M.2 (M) slots2
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size22110
Weight800 g
