Home Computers and equipment Computer components Motherboard Asus TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

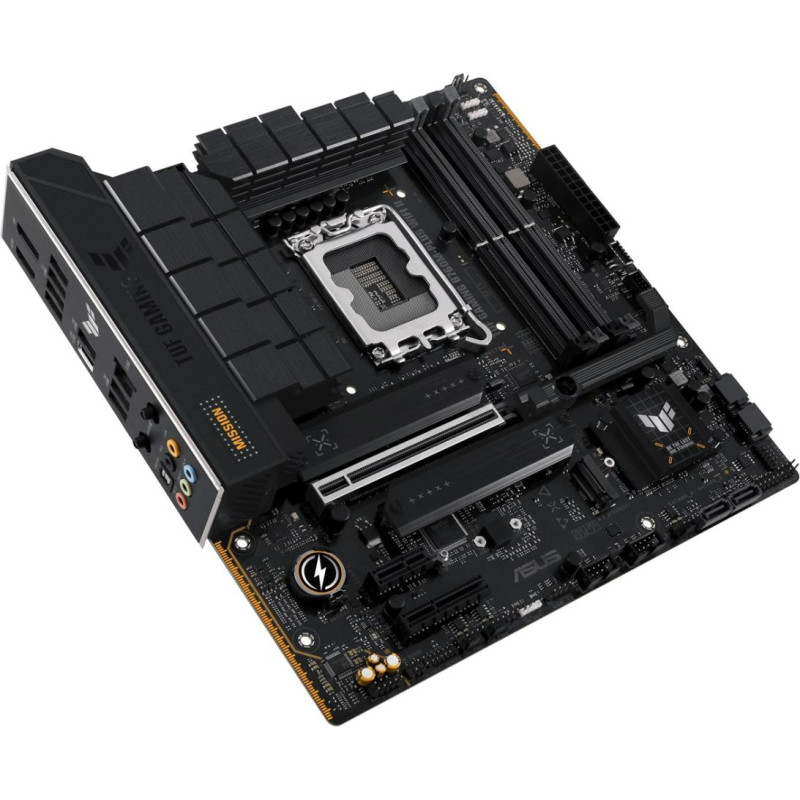

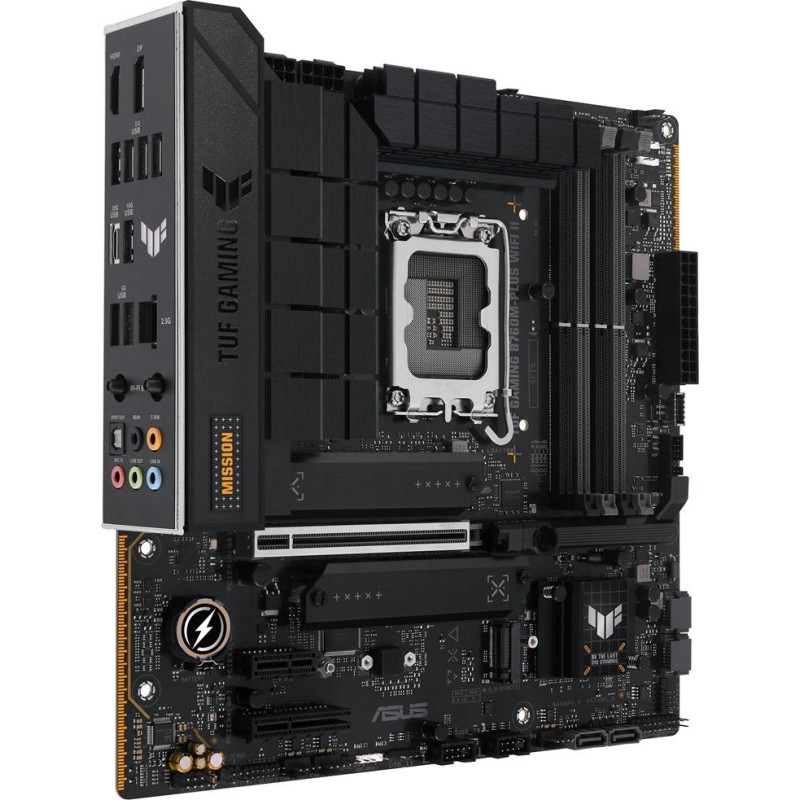

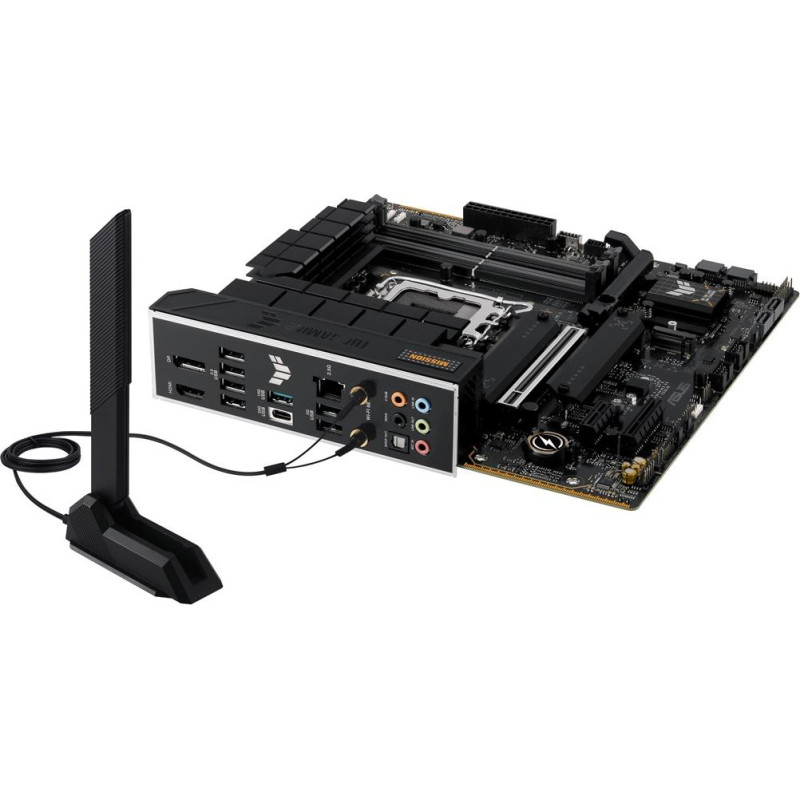

Asus TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

Asus TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 102177
Product Code: 90MB1HE0-M0EAY0
Barcode 4711387461365
186.57€
(Ex Tax: 150.46€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i7
Supported processor socketsLGA 1700
Processor manufacturerIntel
Parallel processing technology supportNot supported
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipsetIntel B760
Motherboard chipset familyIntel
Power source typeATX
Product colourBlack
Windows operating systems supportedWindows 10
Cooling typePassive
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)7800 MHz
Number of memory slots4
ECC сompatibilityNon-ECC
Supported memory clock speeds6000
Maximum internal memory192 GB
Unbuffered memoryYes
Memory channelsDual-channel
Width244 mm
Depth244 mm
Ethernet LANYes
Wi-FiYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
12V power connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RGB LED pin headerYes
Thunderbolt headers1
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
USB 2.0 connectors3
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
CPU fan connectorYes
BIOS typeUEFI AMI
Package weight1.65 kg
Package height67.5 mm
Package depth275 mm
Package width275 mm
Cables includedSATA
User guideYes
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Microphone inYes
Line-inYes
Headphone outputs1
WiFi-AP antenna jack2

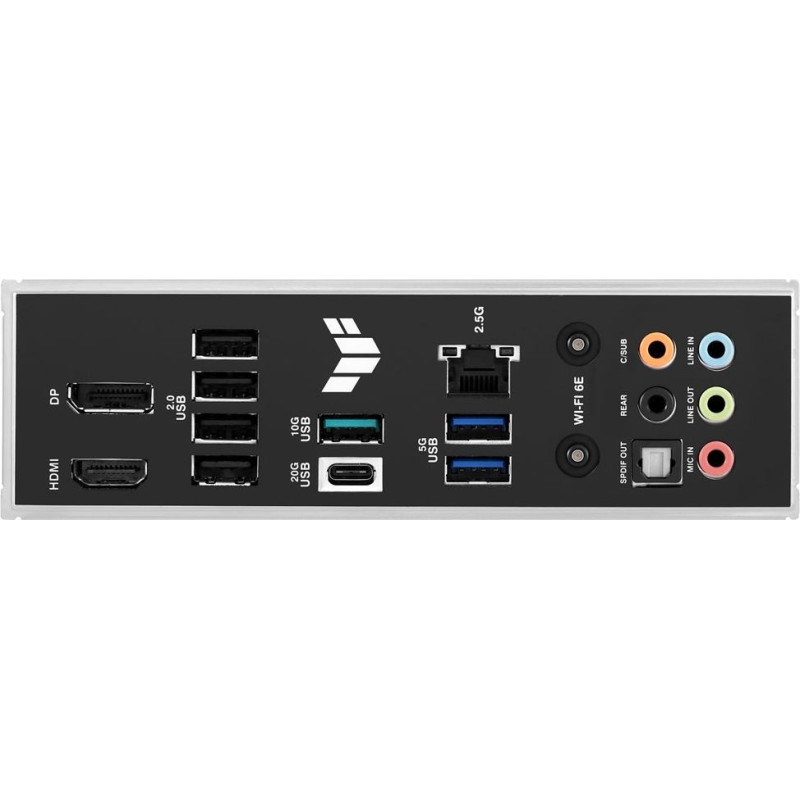

DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 2.0 ports quantity4
S/PDIF out portYes
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots1
Number of M.2 (M) slots3
PCI Express x1 (Gen 3.x) slots1
Weight982 g
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
