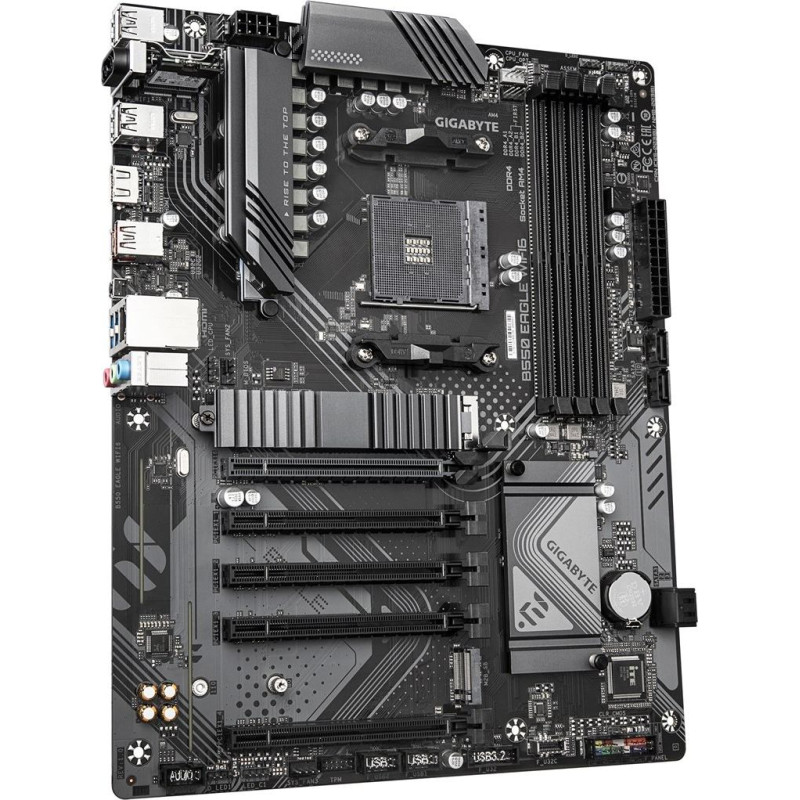

Gigabyte B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

Gigabyte B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 102783
Product Code: B550 EAGLE WIFI6
Barcode 4719331868406
118.88€
(Ex Tax: 95.87€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM4
Compatible processor seriesAMD Ryzen 4000 Series
Processor socketSocket AM4
Processor manufacturerAMD
DirectX version12.0
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
Audio output channels7.1 channels
Power source typeATX
PC health monitoringVoltage
Windows operating systems supportedWindows 10 x64
Motherboard chipsetAMD B550
Motherboard form factorATX
Cooling typePassive
Audio chipRealtek ALC897
Product colourDark brown
Motherboard chipset familyAMD
Maximum internal memory128 GB
Memory channelsDual-channel
Supported memory clock speeds2133
Unbuffered memoryYes
Supported memory clock speed (max)3200 MHz
Maximum internal memory per slot32 GB
ECC сompatibilityECC & Non-ECC
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Number of memory slots4
Width305 mm
Height35 mm
Depth244 mm
BluetoothYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
LAN controllerRealtek RTL8111H
Wi-Fi standards802.11g
Wi-FiYes
Ethernet LANYes
WLAN controller modelRealtek RTL8851BE
Ethernet interface typeGigabit Ethernet
Bluetooth version5.3
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
ATX Power connector (24-pin)Yes
Number of SATA III connectors4
USB 2.0 connectors2
TPM connectorYes
CPU fan connectorYes
Front panel connectorYes
Number of water pump connectors1
Number of RGB LED pin headers5
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
RGB LED pin headerYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Package weight1.48 kg
Package width335 mm
Package height80 mm
Package depth270 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Antenna includedYes
Screws includedYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
RAID levels1
RAID supportYes
Number of storage drives supported6
Number of HDDs supported4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
Microphone inYes
WiFi-AP antenna jack2
Line-inYes
Headphone outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots4
2nd M.2 highest PCI Express generation3.0
2nd M.2 largest key size22110
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size22110
PCI Express x16 (Gen 4.x) slots1
Battery typeCR2032
Lithium weight per battery0.07 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Number of battery cells1
Weight1.25 kg
Products per shipping (inner) case1 pc(s)
