Home Computers and equipment Computer components Motherboard MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX

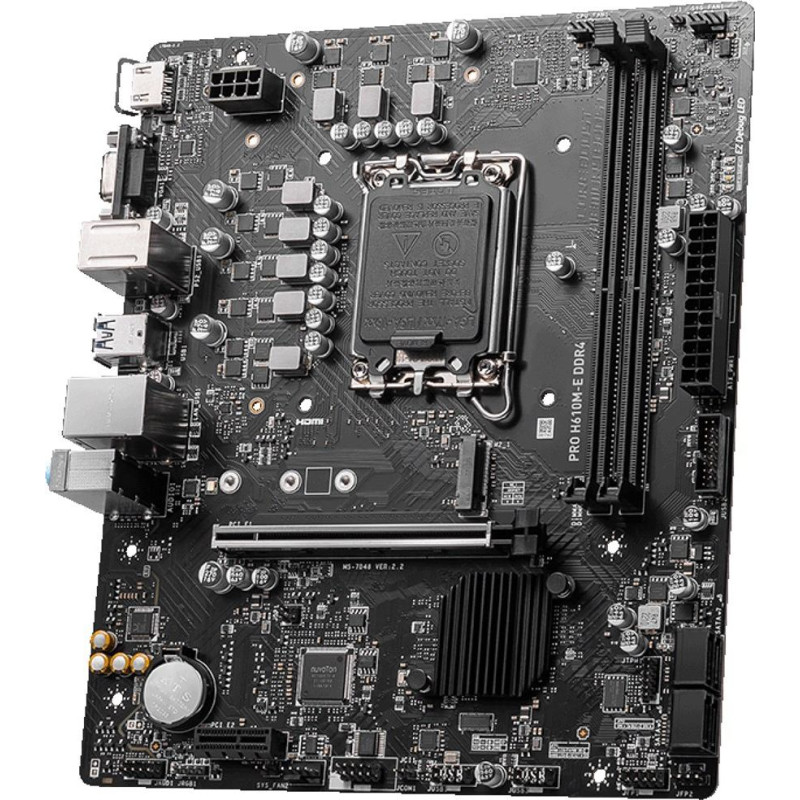

MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX

MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 103553
Product Code: 7D48-001R
Barcode 4711377002660
55.92€
(Ex Tax: 45.10€)
Payment options

Delivery options

omniva  venipak



Description
Description
Maximum number of SMP processors1
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ i9
Supported processor socketsLGA 1700
Processor socketLGA 1700
Parallel processing technology supportNot supported
Audio chipRealtek ALC897
Motherboard chipset familyIntel
Audio output channels7.1 channels
Motherboard chipsetIntel H610
Motherboard form factormicro ATX
Number of memory slots2
Supported memory clock speeds3200 MHz
Memory channelsDual-channel
Maximum internal memory64 GB
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Supported memory clock speed (max)3200 MHz
Height65 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
ATX Power connector (24-pin)Yes
TPM connectorYes
Front panel audio connectorYes
12V power connectorYes
Number of SATA III connectors4
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors4
Number of chassis fan connectors1
Clear CMOS jumperYes
BIOS typeUEFI AMI
Drivers includedYes
Cables includedSATA
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
Weight760 g
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
