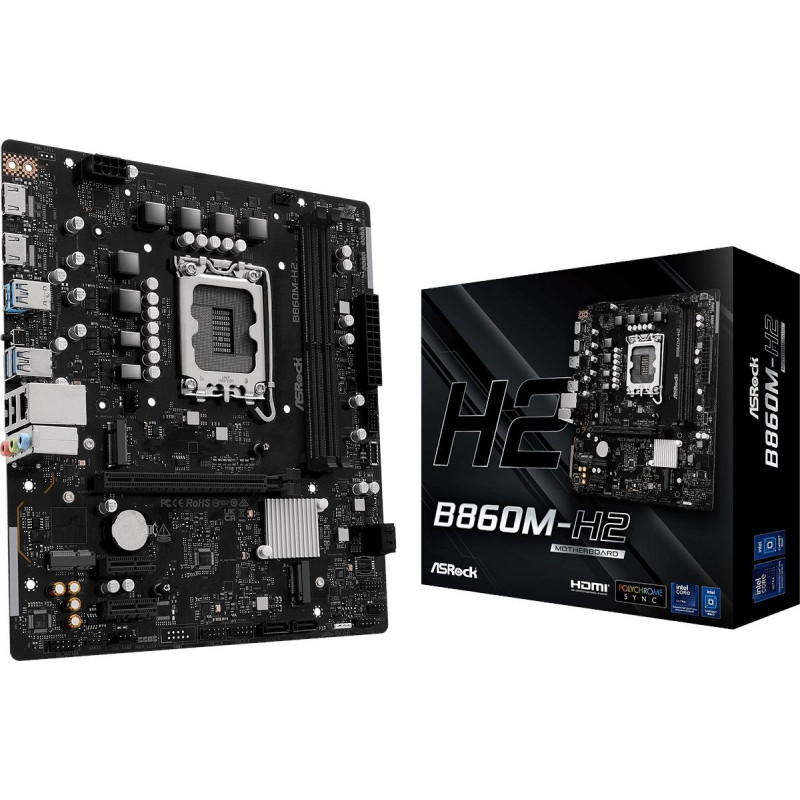

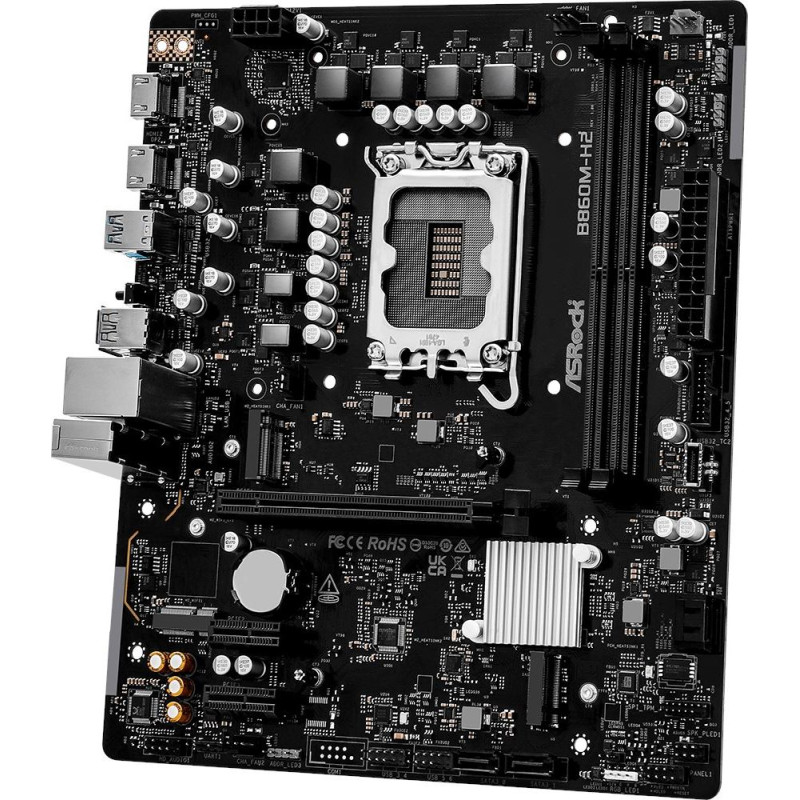

Asrock B860M-H2 motherboard

Asrock B860M-H2 motherboard

Delivery to the store takes 3 - 7 business days.
ID: 104375
Product Code: B860M-H2
Barcode 4711581490437
100.61€
(Ex Tax: 81.14€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor manufacturerIntel
Supported processor socketsLGA 1851
Processor socketLGA 1851 (Socket V1)
CertificationFCC, CE, ErP/EuP
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B860
Windows operating systems supportedWindows 11 x64
Maximum internal memory128 GB
Unbuffered memoryYes
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Number of memory slots2
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Depth211 mm
Width244 mm
BluetoothNo
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerRealtek 8111H
Wi-FiNo
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
USB 2.0 connectors2
ATX Power connector (24-pin)Yes
Number of RGB LED pin headers1
Number of CPU fan connectors1
Number of chassis fan connectors2
CPU fan connectorYes
Number of USB 3.2 Gen 2 Type-C ports1
TPM connectorYes
12V power connectorYes
Number of water pump connectors1
RGB LED pin headerYes
BIOS typeUEFI AMI
Supported storage drive typesHDD & SSD
RAID supportYes
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
USB 2.0 ports quantity2
USB connector typeUSB Type-C
Ethernet LAN (RJ-45) ports1
HDMI version2.1
Antennas quantity2
Flashback BIOS buttonYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
HDMI ports quantity2
Number of SATA III connectors4
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
