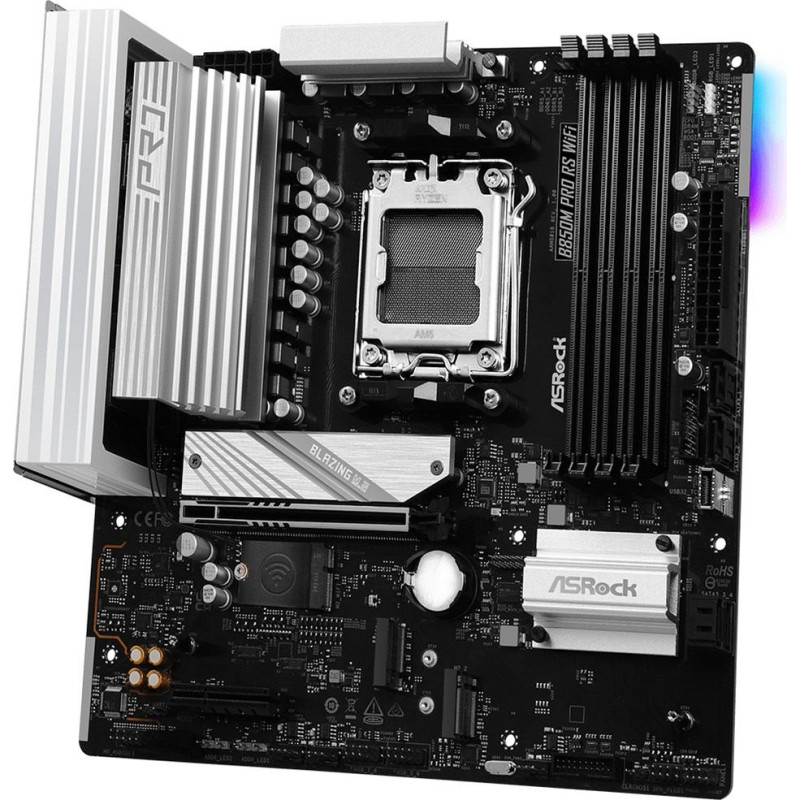

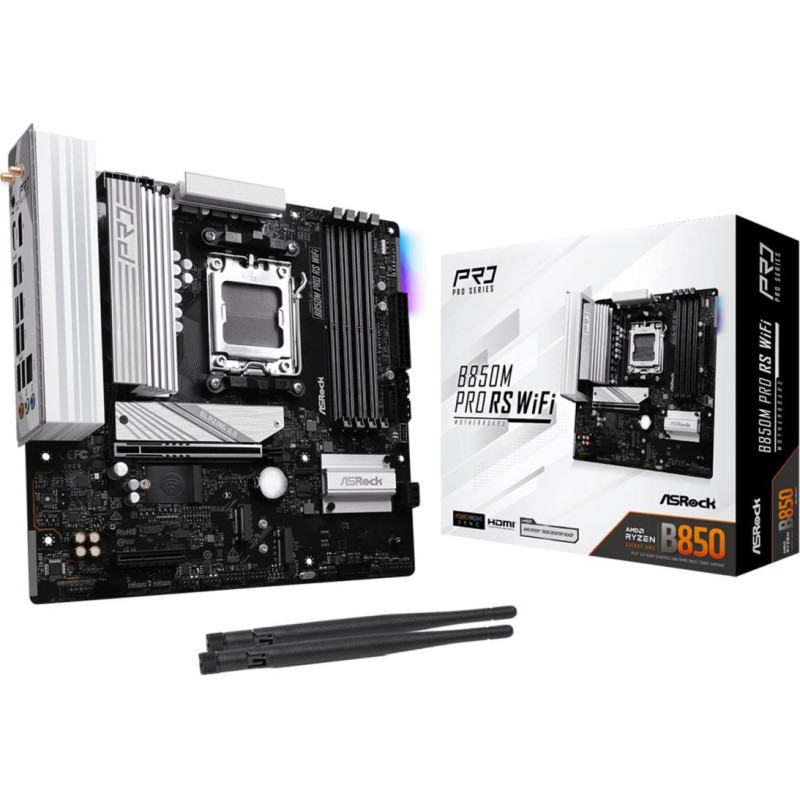

Asrock B850M Pro RS WiFi AMD B850 Socket AM5 micro ATX

Asrock B850M Pro RS WiFi AMD B850 Socket AM5 micro ATX

Availability: Delivery to the store takes 3 - 7 business days.
ID: 104383
Product Code: B850M PRO RS WIFI
Barcode 4711581490352
148.23€
(Ex Tax: 119.54€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 8000 Series
Processor socketSocket AM5
Processor manufacturerAMD
Parallel processing technology supportNot supported
HDCPYes
Maximum resolution3840 x 2160 pixels
CertificationFCC, CE, ErP/EuP ready
Audio output channels7.1 channels
Motherboard form factormicro ATX
Audio chipRealtek ALC897
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Product colourBlack
Unbuffered memoryYes
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Memory slots typeDIMM
Number of memory slots4
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Width244 mm
Depth244 mm
BluetoothYes
LAN controllerDragon RTL8125BG
Ethernet LANYes
Wi-Fi standardsWi-Fi 5 (802.11ac)
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Bluetooth version5.2
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
EPS power connector (8-pin)Yes
TPM connectorYes
CPU fan connectorYes
Number of SATA III connectors4
Number of chassis fan connectors3
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers1
RGB LED pin headerYes
12V power connectorYes
BIOS typeUEFI AMI
Antenna includedYes
Cables includedSATA
RAID levels10
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
Number of storage drives supported7
USB connector typeUSB Type-A
DisplayPorts quantity1
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
WiFi-AP antenna jack2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Microphone inYes
HDMI version2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs3
Line-inYes
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Number of M.2 (M) slots3
2nd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
PCI Express x4 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
WarningsDispose of in accordance with local regulations for electronic waste.
