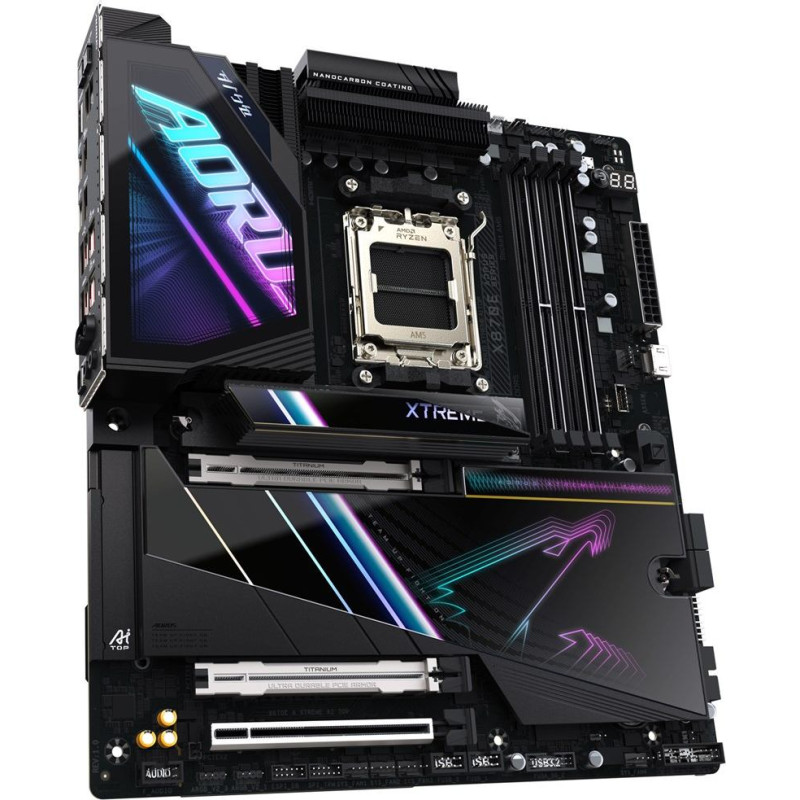

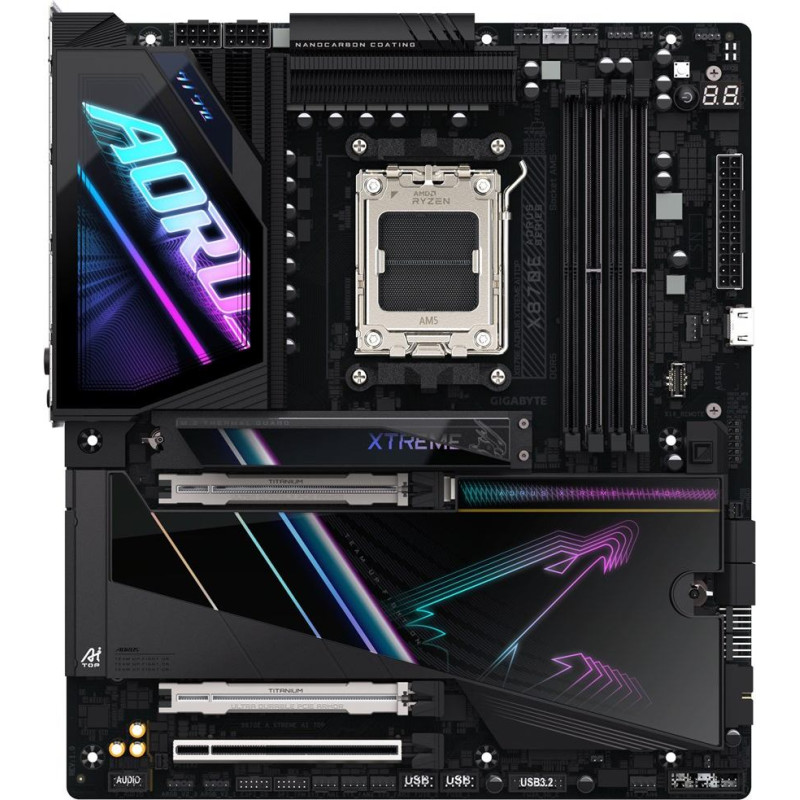

Gigabyte X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4

Gigabyte X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4

Delivery to the store takes 3 - 7 business days.
ID: 104583
Product Code: X870E A XTREME AI TOP
Barcode 4719331866150
810.80€
(Ex Tax: 653.87€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Supported processor socketsSocket AM5
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
HDCPYes
Maximum resolution4096 x 2160 pixels
Audio output channels7.1 channels
PC health monitoringTemperature
Motherboard chipsetAMD X870E
Product colourBlack
Motherboard form factorExtended ATX
Audio chipRealtek ALC1220
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Power source typeATX
Unbuffered memoryYes
Supported memory clock speeds5200
Maximum internal memory256 GB
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)8800 MHz
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot64 GB
Width305 mm
Depth269 mm
BluetoothYes
LAN controllerMarvell AQtion AQC113C
Ethernet interface type10 Gigabit Ethernet
Bluetooth version5.3
WLAN controller modelQualcomm QCNCM865
Wi-Fi standardsWi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
Wi-FiYes
USB 2.0 connectors2
RGB LED pin headerYes
Number of RGB LED pin headers4
Number of water pump connectors5
Number of EPS power connectors (8-pin)2
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors8
Number of SATA III connectors4
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
EPS power connector (8-pin)Yes
TPM connectorYes
Front panel connectorYes
Number of CPU fan connectors1
USB 3.2 Gen 2x2 connectors1
Desktop Management Interface (DMI) version2.7
Clear CMOS buttonYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
RAID levels1
Number of storage drives supported8
RAID supportYes
S/PDIF out portYes
Line-inYes
USB4 Gen 2x2 ports quantity2
WiFi-AP antenna jack2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
DisplayPort version1.4
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
USB 2.0 ports quantity2
HDMI version2.1
Microphone inYes
PCI Express x16 (Gen 5.x) slots2
4th M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
4th M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
PCI Express x16 (Gen 4.x) slots1
2nd M.2 largest key size22110
3rd M.2 largest key size22110
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
Number of M.2 (M) slots4
