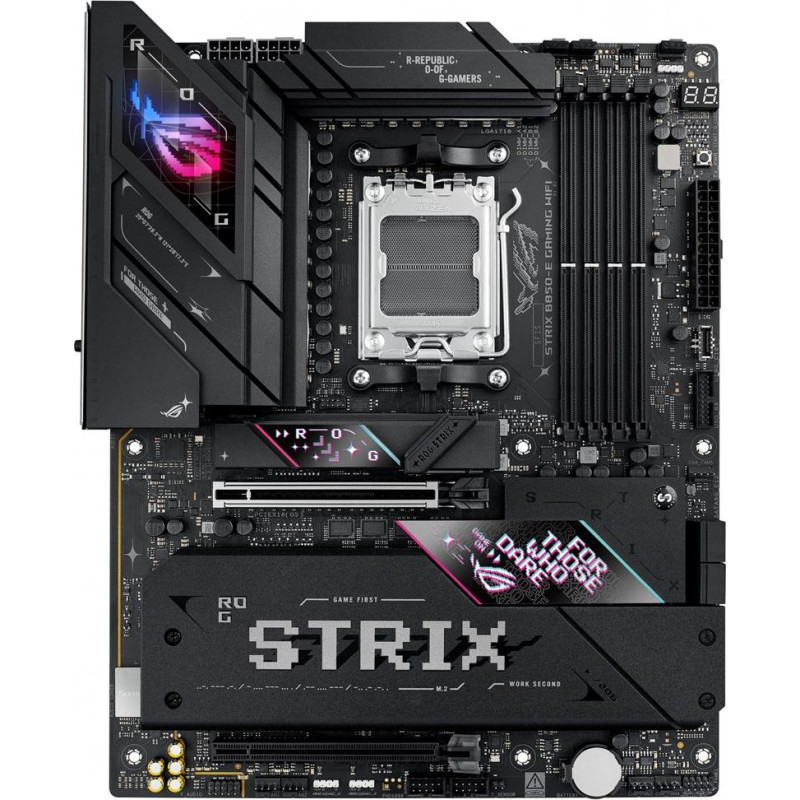

Asus ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard

Asus ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard

Availability: Delivery to the store takes 3 - 7 business days.
ID: 108004
Product Code: 90MB1J60-M0EAY0
Barcode 4711387769300
341.92€
(Ex Tax: 275.75€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsSocket AM5
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
Audio output channels7.1 channels
Motherboard form factorATX
Product colourBlack
Power source typeATX
Windows operating systems supportedWindows 11
Motherboard chipsetAMD B850
Audio chipRealtek ALC4080
Motherboard chipset familyAMD
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Maximum internal memory192 GB
Supported memory clock speed (max)8000 MHz
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Width305 mm
Depth244 mm
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Ethernet LANYes
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Number of chassis fan connectors5
Front panel audio connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
USB 2.0 connectors2
Number of temperature sensor headers1
Number of water pump connectors1
EPS power connector (8-pin)Yes
Number of CPU fan connectors2
Front panel connectorYes
CPU fan connectorYes
Number of RGB LED pin headers3
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Number of EPS power connectors (8-pin)2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Clear CMOS buttonYes
BIOS typeUEFI AMI
Package depth281 mm
Package width356 mm
Package weight2.3 kg
Package height87 mm
Cables includedSATA
Antenna includedYes
Number of storage drives supported9
RAID levels1
Supported storage drive typesHDD & SSD
RAID supportYes
Number of HDDs supported4
Supported storage drive interfacesM.2, SATA III
WiFi-AP antenna jack2
S/PDIF out portYes
Ethernet LAN (RJ-45) ports1
Digital audio optical out1
Line-inYes
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
DisplayPorts quantity1
HDMI version2.1
DisplayPort version1.4
HDMI ports quantity1
Headphone outputs1
USB 3.2 Gen 2x2 Type-C ports quantity1
USB4 Gen 3x2 ports quantity1
PCI Express x16 (Gen 5.x) slots1
2nd M.2 largest key size22110
1st M.2 largest key size2280
3rd M.2 highest PCI Express generation5.0
5th M.2 largest key size2280
Number of M.2 (M) slots5
PCI Express x16 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation5.0
4th M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
5th M.2 highest PCI Express generation4.0
Quick installation guideYes
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
