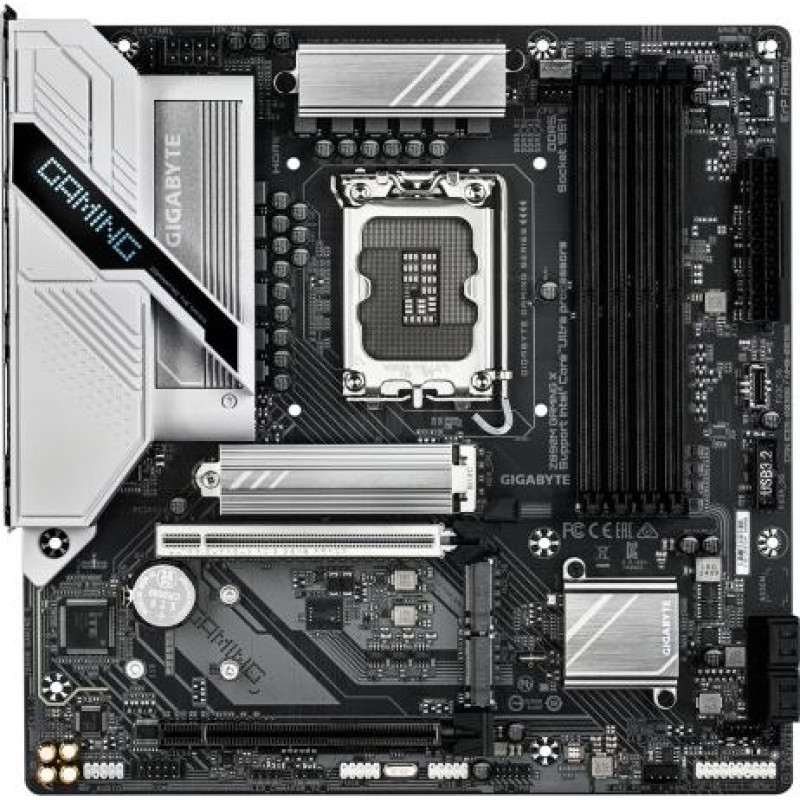

Gigabyte Motherboard Z890M GAMING X

Gigabyte Motherboard Z890M GAMING X

Delivery to the store takes 3 - 7 business days.
ID: 117509
Product Code: Z890M GAMING X
Barcode 4719331865160
190.14€
(Ex Tax: 153.34€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFZ890U02
svītrkods: 4719331865160
Description
SKUKBGBAIIFZ890U02
Barcode4719331865160
ModelZ890M GAMING X
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel Z890 Express
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7000 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency5800 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7950 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency5600 MHz
Memory bus frequency8266 MHz
Memory bus frequency8400 MHz
Memory bus frequency8600 MHz
Memory bus frequency8800 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x M.2 connector (Socket 3, M key, supports 2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, supports 2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, supports 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD) (M2N_SB) 4 x SATA 6Gb/s connector Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
GraphicsIntegrated graphics processor - Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. - Support for HDMI 2.1 and HDCP 2.3 versions. Support for native HDMI 2.1 TMDS-compliant ports. 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. - Support for DisplayPort 2.1 versions.
Sound cardRealtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceLAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel5
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x Line In
External connectors2 x DisplayPort
External connectors1 x HDMI
External connectors1 x RJ-45
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors2 x USB 2.0
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x Thunderbolt
Onboard connectors1 x TPM header
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin Chassis fan
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x RGB LED strip header
Onboard connectors2 x Addressable LED
BIOS1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 17.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
Software1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
DesignationCE+WEEE
