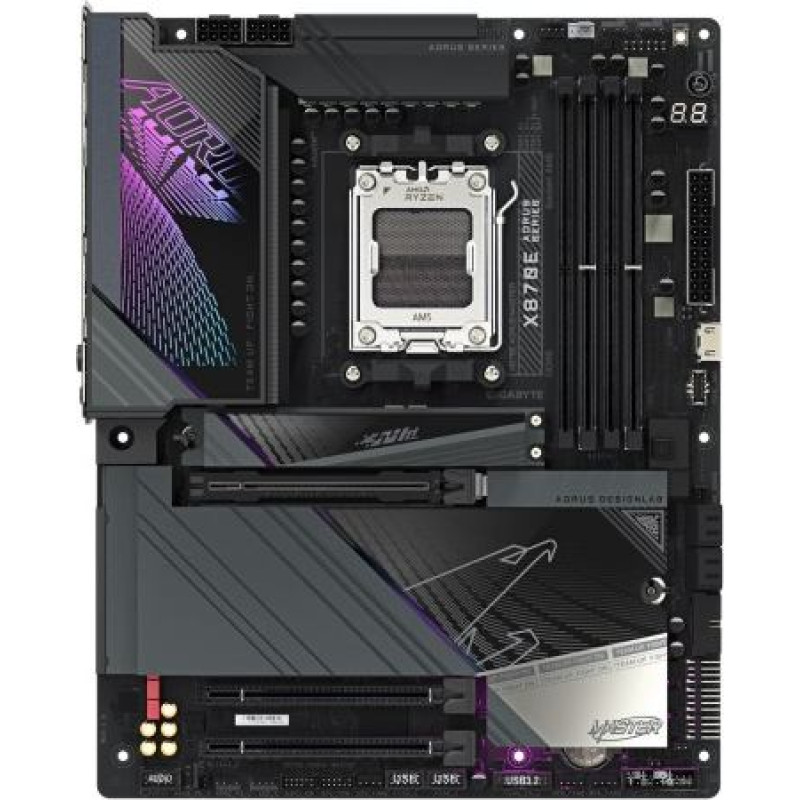

Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX

Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX

Delivery to the store takes 3 - 7 business days.
ID: 117859
Product Code: X870E AORUS MASTER
Barcode 4719331864354
457.14€
(Ex Tax: 368.66€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8X870A03
svītrkods: 4719331864354
Description
SKUKBGBAAA8X870A03
Barcode4719331864354
ModelX870E Aorus MASTER
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8200 MHz
Memory bus frequency8000 MHz
Memory bus frequency7800 MHz
Memory bus frequency7600 MHz
Memory bus frequency6400 MHz
Memory bus frequency6000 MHz
Memory bus frequency6600 MHz
Memory bus frequency6666 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency4800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5600 MHz
Memory bus frequency6200 MHz
Memory bus frequency4400 MHz
Max memory size256
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfaces1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
GraphicsIntegrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz - Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor - AMD Radeon Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Sound cardRealtek ALC1220 codec Support for DTS:X Ultra Support High Definition Audio 2/4/5.1/7.1-channel output Support S/PDIF Out
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceLAN: Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard
USB ports at back panel12
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports7
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Przycisk Clear CMOS
External connectors1 x Q-Flash Plus button
External connectors2 x USB4 Type-C
External connectors2 x SMA
External connectors4 x USB 3.0
External connectors1 x HDMI
External connectors1 x Line Out (front)
External connectors1 x MIC (front)
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors4 x USB 3.1
External connectors2 x USB 2.0
Onboard connectors1 x Clear CMOS button
Onboard connectors1 x Noise detection header
Onboard connectors1 x USB C
Onboard connectors1 x HDMI
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Power button
Onboard connectors1 x Reset button
Onboard connectors1 x Reset jumper
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x Voltage measurement module
Onboard connectors2 x temperature sensor
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors4 x USB 3.0
Onboard connectors2 x 4pin case fan liquid cooling
Onboard connectors1 x 8pin 12V power
Onboard connectors4 x Adresowalna dioda LED
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM) LAN bandwidth management software
DesignationCE+WEEE
