Asus Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB

Asus Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB

Delivery to the store takes 3 - 7 business days.
ID: 117867
Product Code: ROG STRIX X870-A GAMING WIFI
Barcode 4711387737859
437.64€
(Ex Tax: 352.94€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8X870A04
svītrkods: 4711387737859
Description
SKUKBASUAA8X870A04
Barcode4711387737859
ModelROG STRIX X870-A GAMING WIFI
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 7
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7000 MHz
Memory bus frequency8000 MHz
Memory bus frequency9000 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots4 x M.2
Expansion slots2 x PCIe 4.0 x 16
Max. number of SATA devices2
RAIDYes
Detailed data on disk/drive interfacesSupports 4 x M.2 and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 and 7000 Series Desktop Processors* M.2_1 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors** M.2_1 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4/x2 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (not supported)**** AMD X870 Chipset M.2_3 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)*** M.2_4 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 function is only supported by AMD Ryzen 9000 series processors. ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied by SSD, PCIEX16(G5) will only work in x8 mode. *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied by SSD, PCIEX16(G4) will be disabled. **** M.2_2 will be disabled when using AMD Ryzen 8000 series desktop processors.
Graphics1 x DisplayPort 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display output
Sound cardROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP  - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceEthernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7*  2x2 Wi-Fi 7 (802.11be)  Supports 2.4/5/6GHz frequency band**  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.  Bluetooth v5.4
USB ports at back panel12
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports7
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

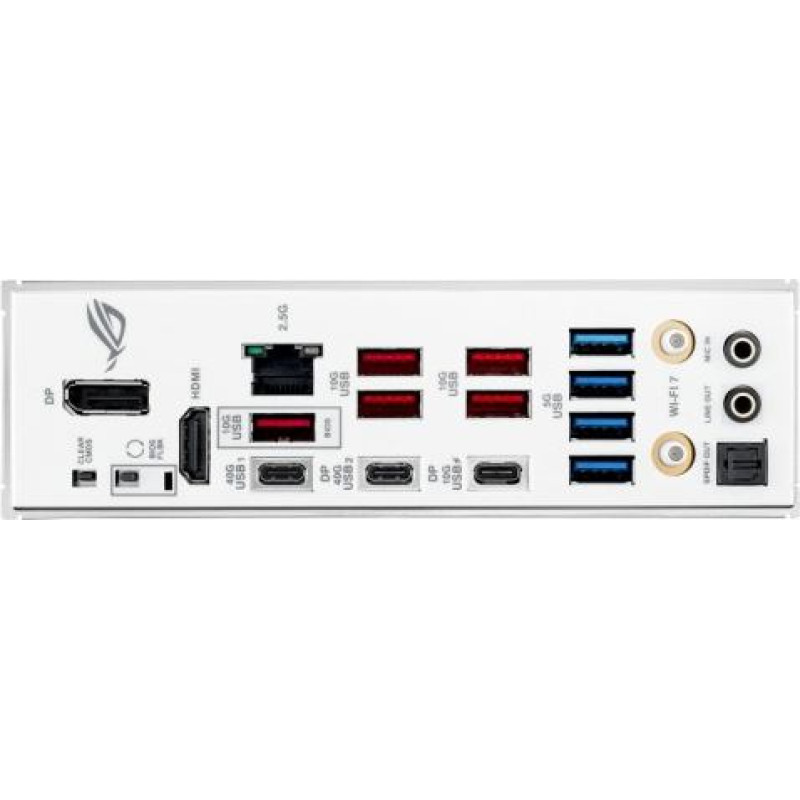

External connectors5 x USB 3.1
External connectors1 x USB 3.1 Type-C
External connectors2 x USB4 Type-C
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line Out (front)
External connectors1 x MIC (front)
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors4 x USB 3.0
External connectors1 x Przycisk Clear CMOS
External connectors1 x Flash BIOS Button
Onboard connectors1 x Front panel audio header
Onboard connectors2 x USB 3.0 header
Onboard connectors2 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors5 x 4pin Chassis fan
Onboard connectors1 x USB C
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x OC PCIe switch
Onboard connectors1 x Thermal sensor connector
Onboard connectors3 x Addressable LED
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 cm x 24.4 cm
Accessories included2 x SATA 6Gb/s cables 1 x M.2 22110 thermal pad 1 x ASUS WiFi Q-Antenna 1 x Cable Tie Pack 1 x M.2 Q-Latch Pack 1 x M.2 Q-Slide Pack 1 x ROG Keychain 1 x ROG Strix Stickers 4 x M.2 Rubber Packs 1 x Quick Start Guide
Supported operating systemsWindows 11
SoftwareROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmory Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)-GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXUSB Wattage WatcherTurboV CoreAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyDynamic OC SwitcherFlexKey
DesignationCE+WEEE
