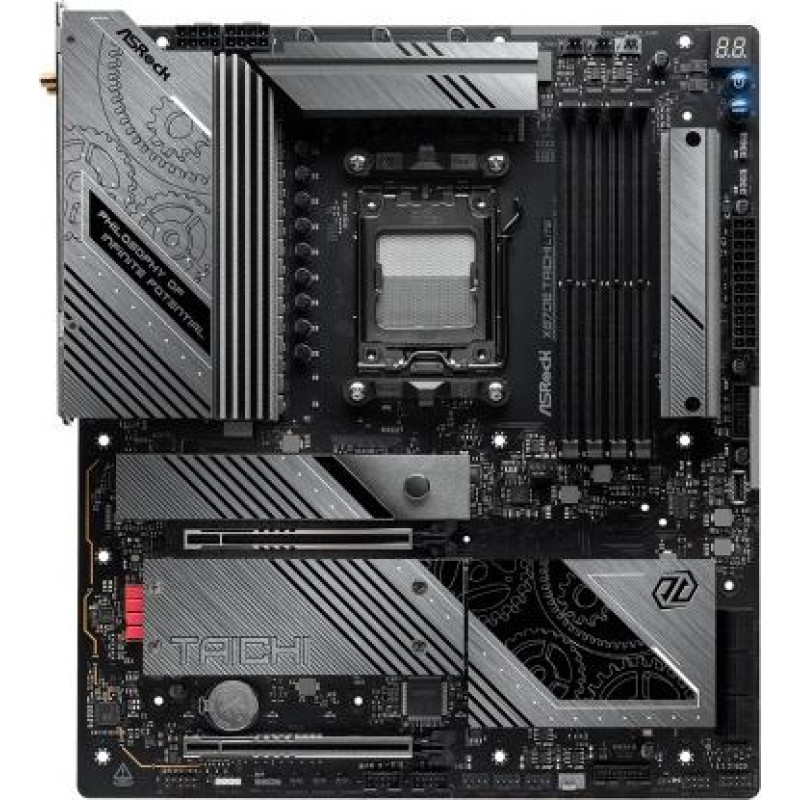

Asrock X870E TAICHI LITE AM5 4DDR5 M.2 EATX

Asrock X870E TAICHI LITE AM5 4DDR5 M.2 EATX

Delivery to the store takes 3 - 7 business days.
ID: 117979
Product Code: X870E TAICHI LITE
Barcode 4710483947445
401.27€
(Ex Tax: 323.61€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRAA8X870E02
svītrkods: 4710483947445
Description
SKUKBASRAA8X870E02
Barcode4710483947445
ModelX870E TAICHI LITE
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 3
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8200 MHz
Max memory size256
Expansion slots2 x PCIe 5.0 x16
Expansion slots1 x M.2
Max. number of SATA devices6
RAIDYes
Detailed data on disk/drive interfacesCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 6 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disksM2_1 is the first priority for M.2 installation.M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.RAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
GraphicsAMD RDNA Integrated Graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G, supports HDR, HDCP 2.3 and max resolution up to 4K 120Hz 2 x USB4, supports HDCP 2.3 and max resolution up to 8K 30Hz* *Only CPU built-in graphics can be displayed via USB4 ports.If you want to display on a Type-C monitor, use AM5 Ryzen 9000, 8000 and 7000 processors with built-in graphics.
Sound card5.1 CH HD Audio with Content Protection (Realtek ALC4082 audio codec) WIMA audio capacitors (for rear outputs) ESS SABRE9219 DAC for rear audio (SNR 130 dB) Individual PCB layers for R/L audio channel Direct Drive technology on front headphone port (supports up to 600 ohm headsets) Nahimic Audio
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceBluetooth
Network interface5 Gigabit LAN 10/100/1000/2500/5000 Mbps Realtek RTL8126 Wireless LAN Wi-Fi 7 802.11be 2x2 module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4 GHz/5 GHz/6 GHz* frequency band Supports 160 MHz channel bandwidth with 6 GHz* frequency band 1 antenna supports 2 (transmit) x 2 (receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
USB ports at back panel12
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports6
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x USB4 Type-C
External connectors2 x SMA
External connectors5 x USB 3.1
External connectors3 x USB 3.0
External connectors1 x S/PDIF
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x RJ-45
External connectors1 x Przycisk Clear CMOS
External connectors2 x USB 2.0
External connectors1 x USB BIOS Flashback button
Onboard connectors1 x Reset button
Onboard connectors2 x 4pin wentylator CPU
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors4 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x Thermistor Cable Header
Onboard connectors1 x Debug card header
Onboard connectors1 x Power button
Onboard connectors1 x System panel header
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Power LED and Speaker Header
Onboard connectors3 x Addressable LED
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form factorE-ATX
Dimensions30.5 cm x 26.7 cm
Accessories included4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareSoftware ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Other information8 Layer PCB 2oz Copper PCB
DesignationCE+WEEE
