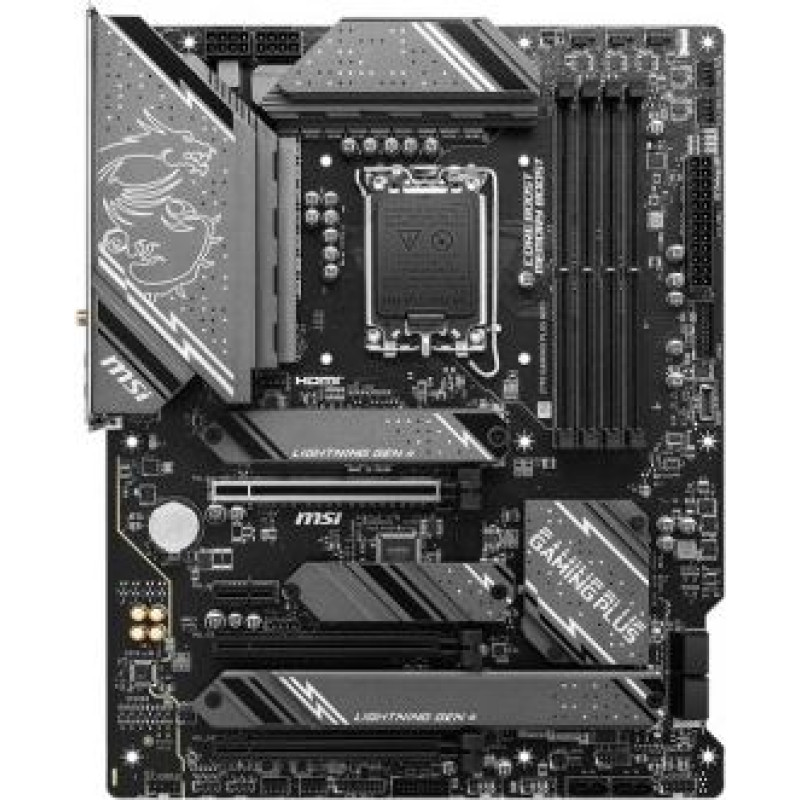

MSI Z790 GAMING PLUS WIFI s1700 4DDR5 HDMI ATX

MSI Z790 GAMING PLUS WIFI s1700 4DDR5 HDMI ATX

Delivery to the store takes 3 - 7 business days.
ID: 120421
Product Code: Z790 GAMING PLUS WIFI
Barcode 4711377134712
208.08€
(Ex Tax: 167.81€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEZ790A12
svītrkods: 4711377134712
Description
SKUKBMSIIIEZ790A12
Barcode4711377134712
ModelZ790 GAMING PLUS WIFI
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Core
Processor familyIntel Pentium Gold
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeINTEL Z790
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency5000 MHz
Memory bus frequency5200 MHz
Memory bus frequency5400 MHz
Memory bus frequency5600 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency7200 MHz
Memory bus frequency4800 MHz
Max memory size192
Expansion slots2 x PCIe 3.0 x 1
Expansion slots2 x M.2
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe x 1
Expansion slots3 x PCIe x 16
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices6
RAIDYes
Detailed data on disk/drive interfaces4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID     Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Graphics1x HDMI HDMI 2.1 HDR support, maximum resolution 4K 60 Hz* 1x DisplayPort DP 1.4 support, maximum resolution 4K 60 Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound cardRealtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceIntel 2.5Gbps LAN Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
USB ports at back panel8
USB ports on motherboard9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

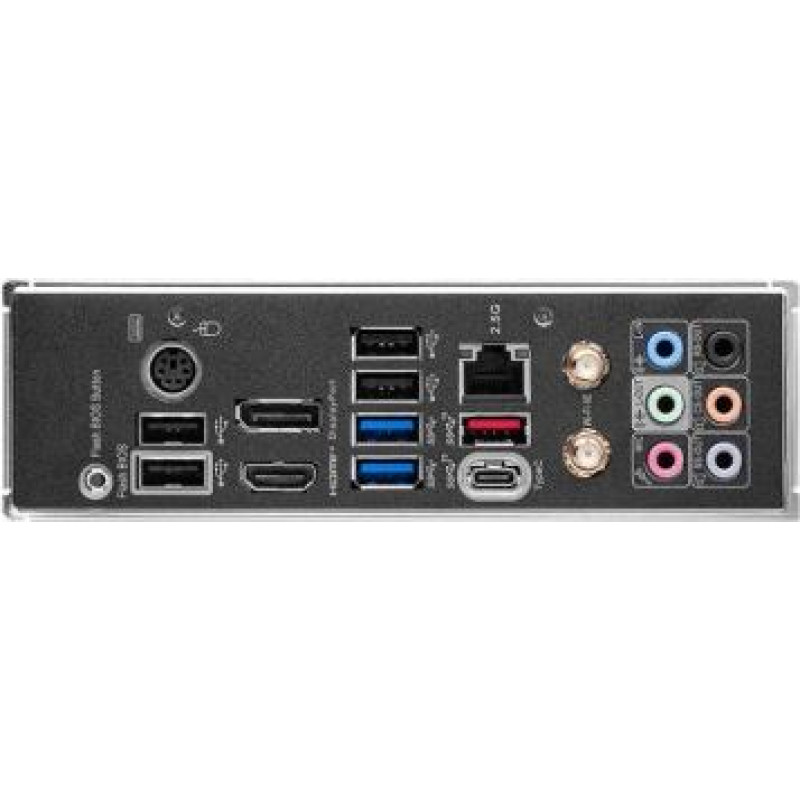

External connectors4 x USB 2.0
External connectors2 x USB 3.0
External connectors1 x USB 3.1
External connectors1 x Side Speaker
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x USB 3.1 Type-C
External connectors2 x SMA
External connectors1 x Flash BIOS Button
Onboard connectors1 x Front panel audio header
Onboard connectors1 x TPM header
Onboard connectors2 x System panel header
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors4 x USB 2.0/1.1
Onboard connectors4 x USB 3.0
Onboard connectors1 x USB 3.1
Onboard connectors1 x 4pin Chassis fan
Onboard connectors6 x 4pin wentylator obudowy
Onboard connectors1 x Chassis intrusion header
Onboard connectors2 x RGB LED Strip
Onboard connectors2 x Addressable LED
Form factorATX
Dimensions243.84 x 304.8 mm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
DesignationCE+WEEE
