Home Computers and equipment Computer components Motherboard MSI Motherboard MAG Z790 TOMAHAWK WIFI s1700 4DDR5 DP/HDMI ATX

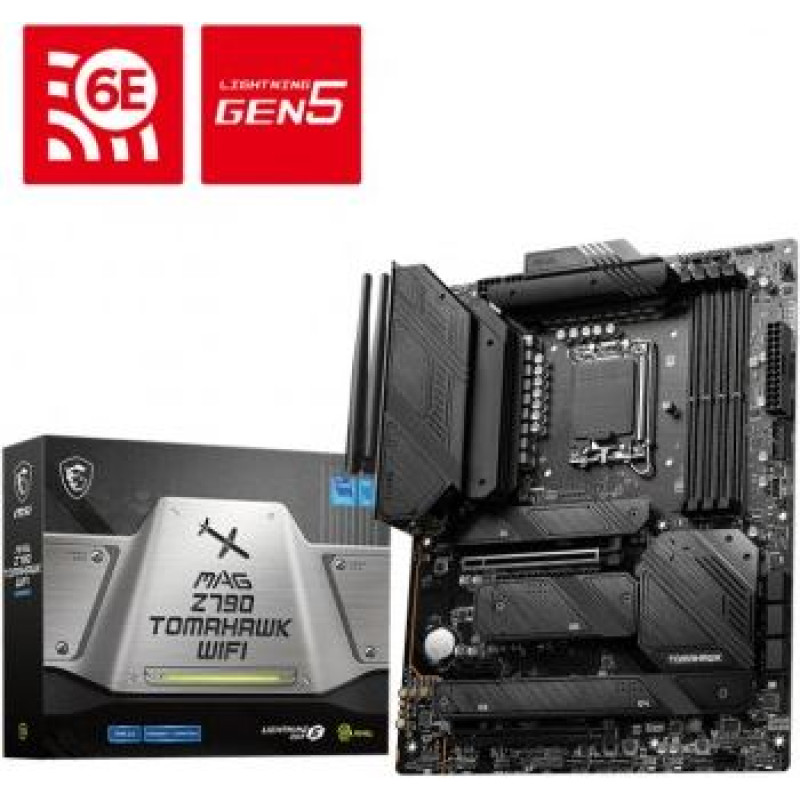

MSI Motherboard MAG Z790 TOMAHAWK WIFI s1700 4DDR5 DP/HDMI ATX

MSI Motherboard MAG Z790 TOMAHAWK WIFI s1700 4DDR5 DP/HDMI ATX

Delivery to the store takes 3 - 7 business days.
ID: 121495
Product Code: MAG Z790 TOMAHAWK WIFI
Barcode 4711377025492
233.67€
(Ex Tax: 188.44€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBMSIIIEZ790A07
svītrkods: 4711377025492
Description
SKUKBMSIIIEZ790A07
Barcode4711377025492
ModelMAG Z790 TOMAHAWK WIFI
CPU socketLGA1700
Processor familyIntel Celeron
Processor familyIntel Pentium Gold
Processor familyIntel Core
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeINTEL Z790
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency5800 MHz
Memory bus frequency5200 MHz
Memory bus frequency5400 MHz
Memory bus frequency5600 MHz
Memory bus frequency5000 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency4800 MHz
Max memory size192
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x PCIe 4.0 x 4
Expansion slots2 x PCIe 3.0 x 1
Expansion slots2 x PCIe x 16
Expansion slots1 x PCIe x 1
Max. number of SATA devices7
RAIDYes
Detailed data on disk/drive interfaces4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G (Qty)
Graphics1x HDMI HDMITM 2.1 support with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort DP 1.4 support, maximum resolution of 8K 60Hz*. *Only available for processors with integrated graphics. Graphics specifications may vary depending on the processor installed.
Sound cardRealtek ALC4080 codec 7.1 channel high performance USB audio Supports S/PDIF output Supports up to 32-bit/384 kHz front panel playback
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceIntel 2.5Gbps LAN
USB ports at back panel10
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports7
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x DisplayPort
External connectors1 x Przycisk Clear CMOS
External connectors1 x HDMI
External connectors1 x Side Speaker
External connectors1 x Rear Speaker
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors4 x USB 3.0
External connectors4 x USB 3.1
External connectors1 x Flash BIOS Button
External connectors2 x USB 3.1 Type-C
Onboard connectors1 x 4pin Chassis fan
Onboard connectors3 x Addressable LED
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x RGB LED strip header
Onboard connectors2 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors6 x 4pin wentylator obudowy
Form factorATX
Dimensions243.84 x 304.8 mm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
DesignationCE+WEEE
