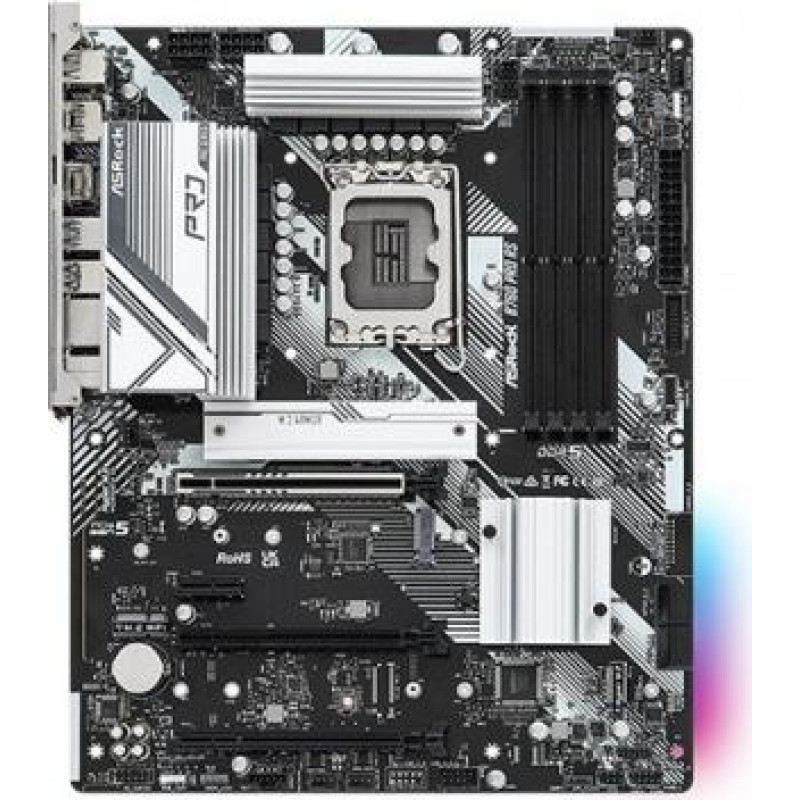

Asrock Motherboard B760 Pro RS s1700 4DDR5 DP/HDMI/eDP M.2 ATX

Asrock Motherboard B760 Pro RS s1700 4DDR5 DP/HDMI/eDP M.2 ATX

Delivery to the store takes 3 - 7 business days.
ID: 121814
Product Code: B760 PRO RS
Barcode 4710483942044
123.01€
(Ex Tax: 99.20€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIEB760A01
svītrkods: 4710483942044
Description
SKUKBASRIIEB760A01
Barcode4710483942044
ModelB760 Pro RS
CPU socketLGA1700
Processor familyIntel Core i9
Processor familyIntel Core i7
Processor familyIntel Core i3
Processor familyIntel Core i5
Processor familyIntel Pentium
Processor familyIntel Celeron
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7200 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) chipset: 1 x M.2 Socket (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x2 (32Gbps) 1 x Hyper M.2 Socket (M2_3, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) 4 x SATA3 6.0Gb/s connector
GraphicsIntel Xe Graphics Architecture (12th Gen) eDP 1.4, supports max. resolution up to Full HD 60Hz HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz *Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPU
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface1 x 10/100/1000/2500 Mbit/s
Network interface2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
USB ports at back panel8
USB ports on motherboard5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

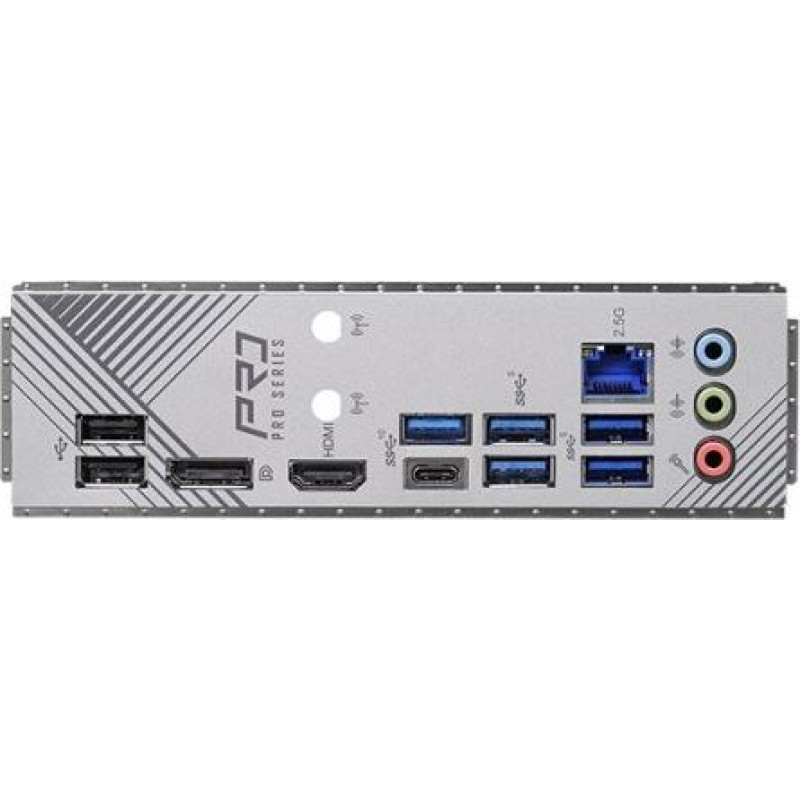

External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors4 x USB 3.0
External connectors1 x USB 3.1
External connectors1 x USB 3.1 Type-C
External connectors1 x DisplayPort
External connectors1 x HDMI
Onboard connectors2 x 8pin 12V
Onboard connectors2 x Addressable LED
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors5 x 4pin case fan liquid cooling
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x RGB LED Strip
Onboard connectors1 x Front panel audio header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x Power LED and Speaker Header
Onboard connectors3 x M.2
Onboard connectors1 x TPM header
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x eDP
BIOS128Mb AMI UEFI Legal BIOS with GUI support
Form factorATX
Dimensions30.5 x 24.4 cm
Accessories includedUser manual 2 x SATA data cable 4 x Screws for M.2 slots Spacer for M.2 slot
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareSoftware: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
DesignationCE+WEEE
