Home Computers and equipment Computer components Motherboard Gigabyte A520 AORUS ELITE AM4 4D DR4 HDMI/DVI M.2 ATX

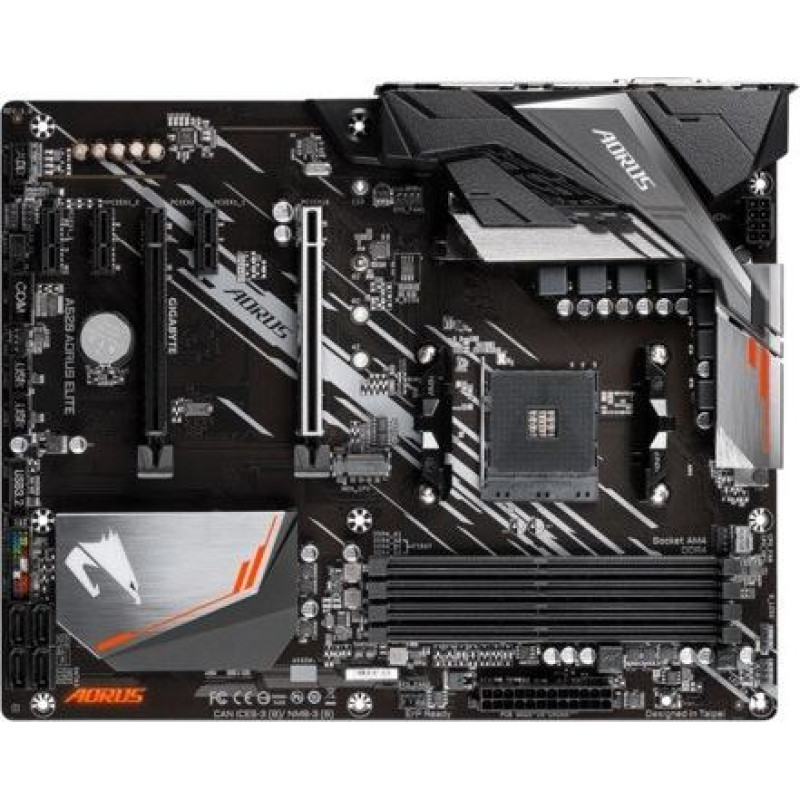

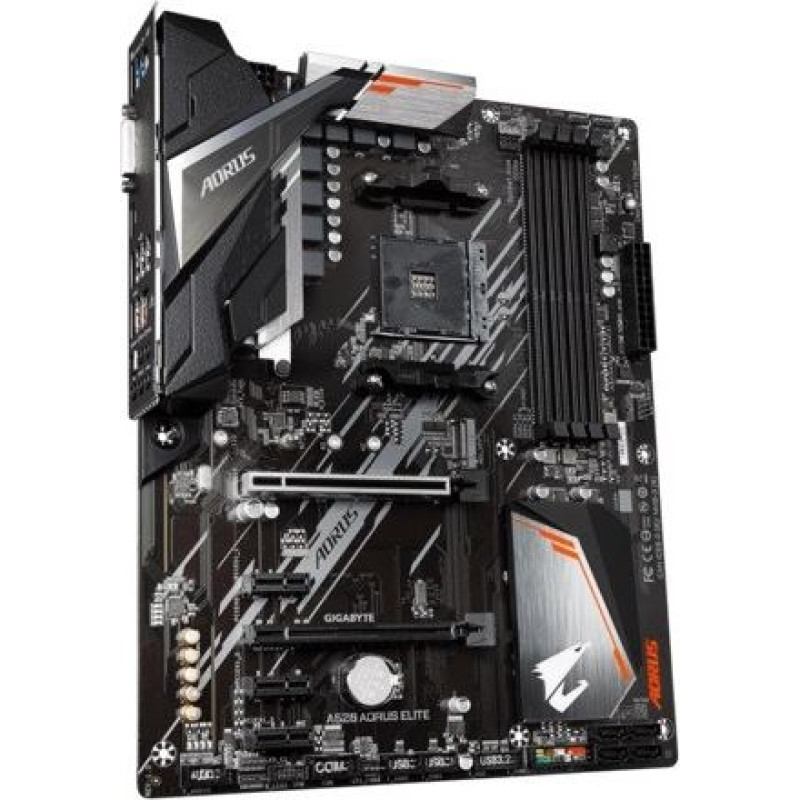

Gigabyte A520 AORUS ELITE AM4 4D DR4 HDMI/DVI M.2 ATX

Gigabyte A520 AORUS ELITE AM4 4D DR4 HDMI/DVI M.2 ATX

Delivery to the store takes 3 - 7 business days.
ID: 127702
Product Code: A520 AORUS ELITE
Barcode 4719331809812
79.87€
(Ex Tax: 64.41€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7A520A00
svītrkods: 4719331809812
Description
SKUKBGBAAA7A520A00
Barcode4719331809812
CPU socketSocket AM4
Processor familyNon-CPU
Integrated CPUNo
Chipset manufacturerAMD
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency4400 MHz
Memory bus frequency3466 MHz
Memory bus frequency3600 MHz
Memory bus frequency4000 MHz
Memory bus frequency3866 MHz
Memory bus frequency2133 MHz
Memory bus frequency3200 MHz
Memory bus frequency2400 MHz
Memory bus frequency3400 MHz
Memory bus frequency3333 MHz
Memory bus frequency2667 MHz
Memory bus frequency2933 MHz
Memory bus frequency3733 MHz
Memory bus frequency3800 MHz
Memory bus frequency3300 MHz
Max memory size128
Max. number of SATA devices4
RAIDYes
Network interface1 x 10/100/1000 Mbit/s
USB ports at back panel7
USB ports on motherboard3
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
COM connector / portYes
External connectors4 x USB 2.0
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors3 x USB 3.0
External connectors1 x DVI-D
External connectors1 x HDMI
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x USB 3.1
External connectors1 x S/PDIF
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x Power led header
Onboard connectors1 x Q-Flash Plus button
Form factorATX
Supported operating systemsWindows 10
DesignationCE+WEEE
