Home Computers and equipment Computer components Graphics Cards (GPUs) Asus Dual -RX9060XT-16G AMD Radeon RX 9060 XT 16 GB GDDR6

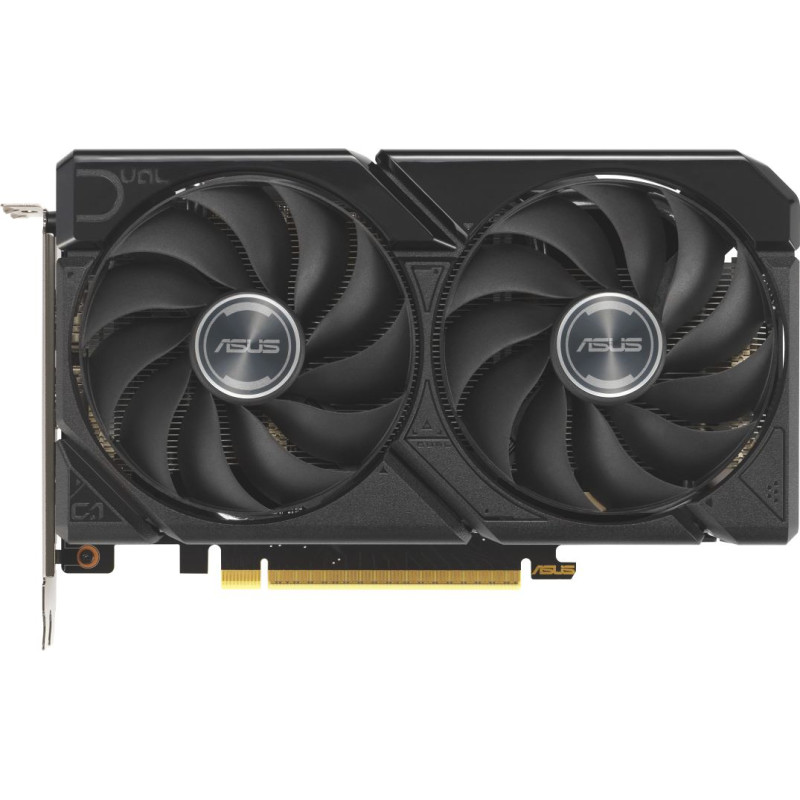

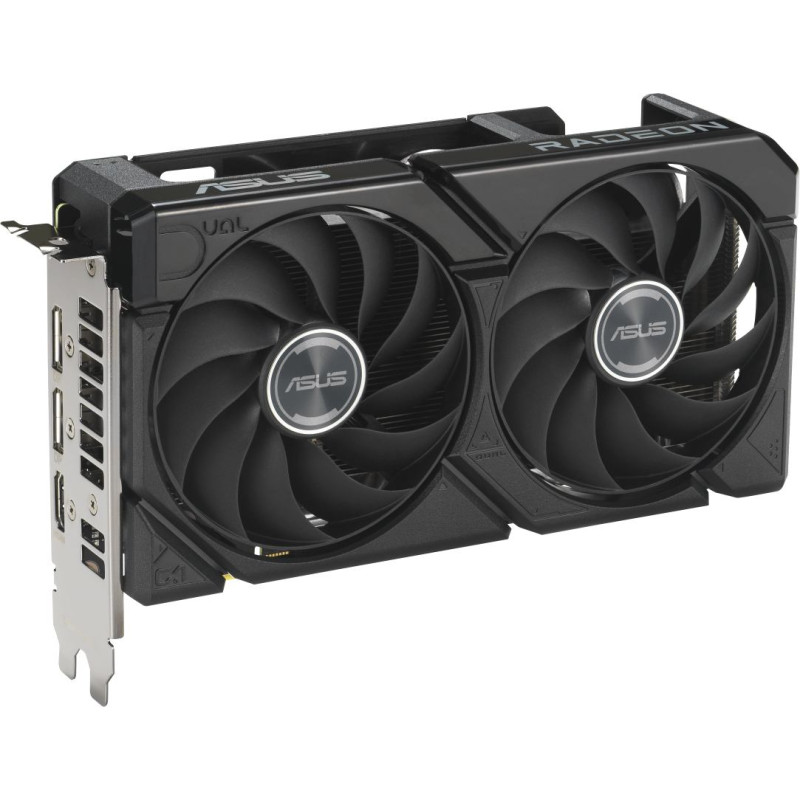

Asus Dual -RX9060XT-16G AMD Radeon RX 9060 XT 16 GB GDDR6

Asus Dual -RX9060XT-16G AMD Radeon RX 9060 XT 16 GB GDDR6

Delivery to the store takes 3 - 7 business days.
ID: 133227
Product Code: DUAL-RX9060XT-16G
Barcode 4711636196765
485.98€
(Ex Tax: 391.92€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
atbalstītās windows operētājsistēmas: Windows 10 x64, Windows 11 x64
atmiņas kopne: 128 bit
augstums: 120 mm
cuda: Nē
datu pārsūtīšanas ātrums: 20 Gbit/s
directx versija: 12 Ultimate
diskrētā grafikas adaptera atmiņa: 16 GB
displayport versija: 2.1a
displayports daudzums: 2
dual link dvi: Nē
dzesēšanas tehnoloģija: ASUS Axial-tech
dzesēšanas tips: Aktīvs
dziļums: 49 mm
garums: 202 mm
grafikas procesoru ģimene: AMD
grafiskā adaptera atmiņas tips: GDDR6
grafiskais procesors: Radeon RX 9060 XT
hdcp: Jā
hdcp versija: 2.3
hdmi pieslēgvietu skaits: 1
hdmi versija: 2.1b
iepakojuma tips: Kaste
integrēts tv tūneris: Nē
interfeisa tips: PCI Express 5.0
maksimālā izšķirtspēja: 7680 x 4320 pikseļi
maksimālie displeji uz videokarti: 3
manuāls: Jā
minimālā sistēmas energoapgāde: 550 W
opengl versija: 4.6
paātrināta procesora takts frekvence (spēļu režīms): 2640 MHz
papildus strāvas savienotāji: 1x 8-pin
paralēlās apstrādes tehnoloģijas atbalsts: Netiek atbalstīts
procesora pulksteņa ātruma palielināšana (oc režīms): 3250 MHz
procesora taktsātruma veicinātājs: 3230 MHz
produkta krāsa: Melns
sff gatavība: Jā
slotu skaits: 2,5
straumēšanas procesori: 2048
ventilatoru skaits: 2 ventilators/ ventilatori
Description
Dual Radeon™ RX 9060 XT
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Unmatched Reliability
ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

Engineering
Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

Graphics processor familyAMD
Graphics processorRadeon RX 9060 XT
Maximum resolution7680 x 4320 pixels
CUDANo
Parallel processing technology supportNot supported
Processor boost clock speed3230 MHz
Processor boost clock speed (OC mode)3250 MHz
Processor boost clock speed (Gaming mode)2640 MHz
Stream processors2048
Maximum displays per videocard3
Discrete graphics card memory16 GB
Graphics card memory typeGDDR6
Memory bus128 bit
Data transfer rate20 Gbit/s
Interface typePCI Express 5.0
HDMI ports quantity1
DisplayPorts quantity2
HDMI version2.1b
DisplayPort version2.1a
TV tuner integratedNo
DirectX version12 Ultimate
OpenGL version4.6
Dual Link DVINo
HDCPYes
HDCP version2.3
Cooling typeActive
Cooling technologyASUS Axial-tech
Number of fans2 fan(s)
Number of slots2.5
SFF readyYes
Product colourBlack
Minimum system power supply550 W
Supplementary power connectors1x 8-pin
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Length202 mm
Depth49 mm
Height120 mm
Package typeBox
ManualYes
