Home Computers and equipment Computer components Motherboard Asus Pro H610M-C-CSM Intel H610 LGA 1700 mikro ATX

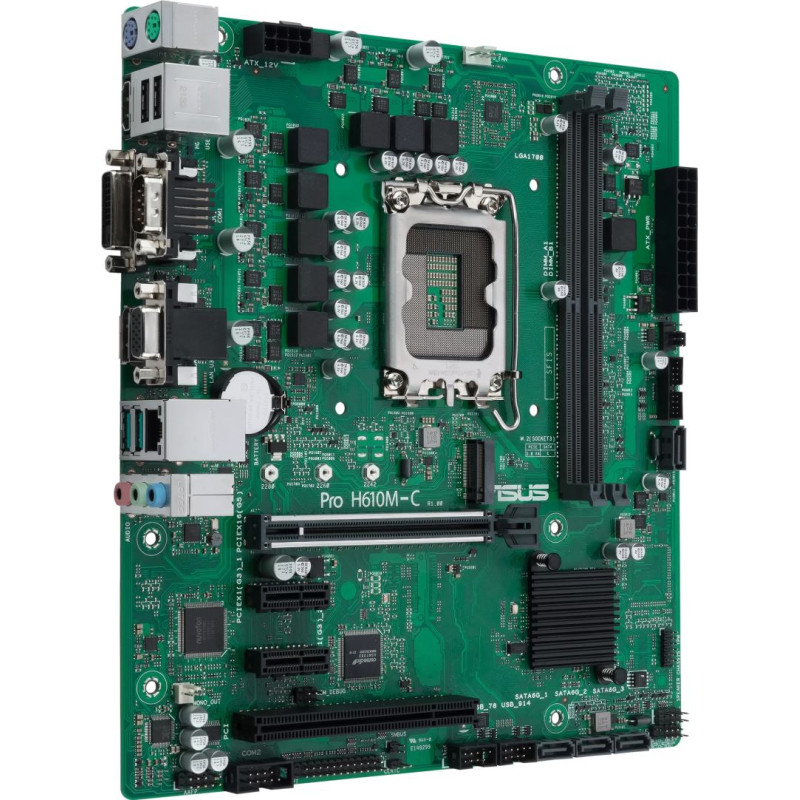

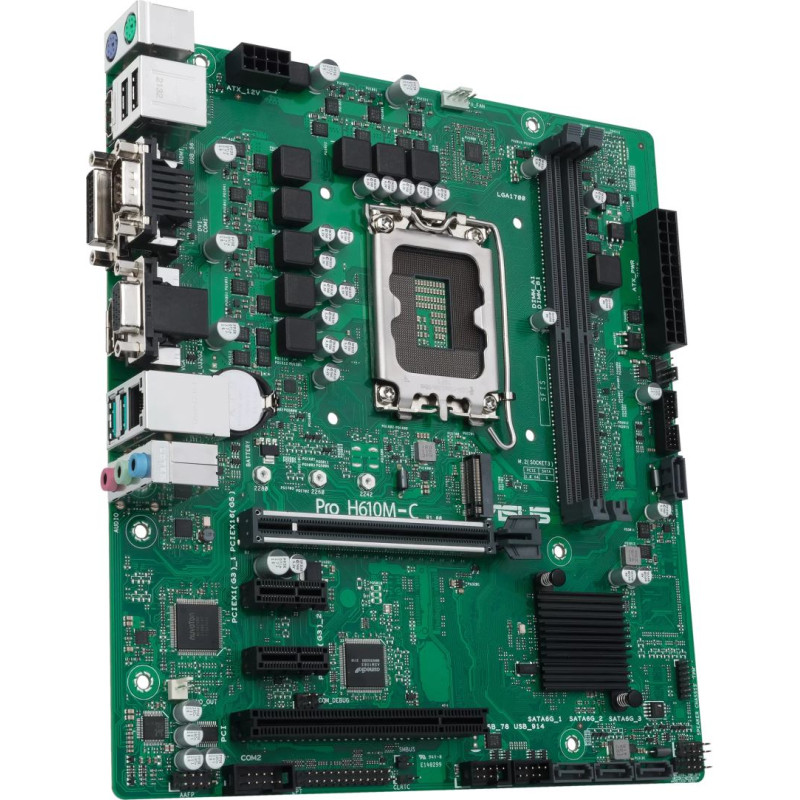

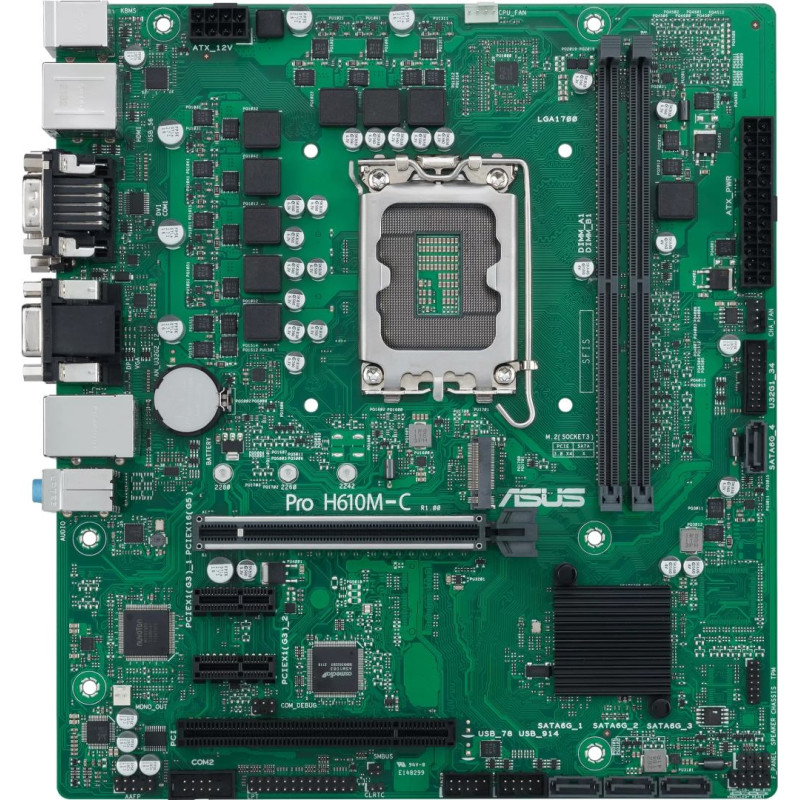

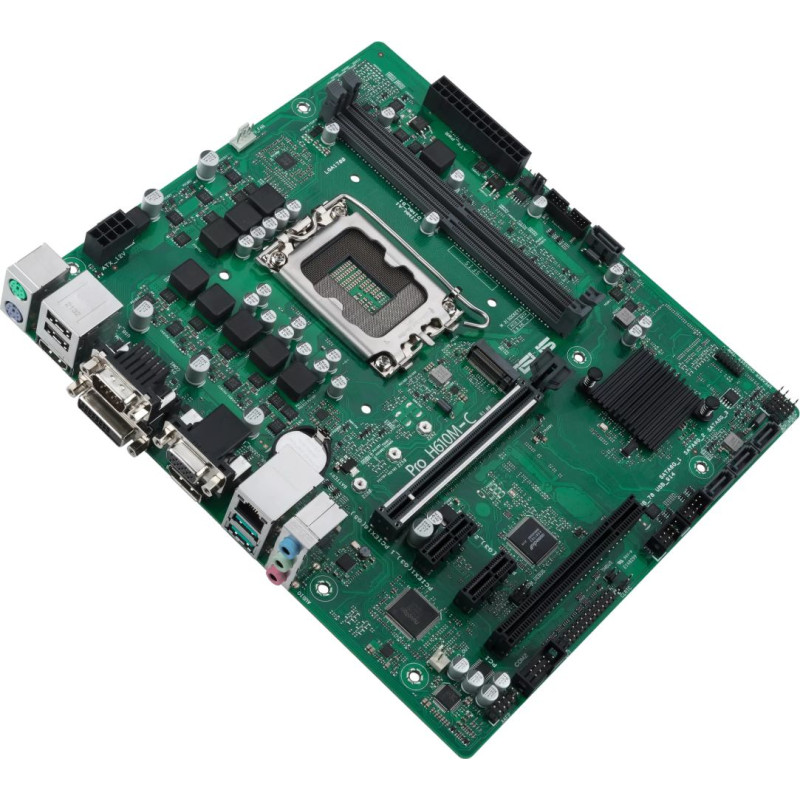

Asus Pro H610M-C-CSM Intel H610 LGA 1700 mikro ATX

Asus Pro H610M-C-CSM Intel H610 LGA 1700 mikro ATX

Delivery to the store takes 3 - 7 business days.
ID: 133737
Product Code: PRO H610M-C-CSM
Barcode 4711081655152
108.86€
(Ex Tax: 87.79€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
12v strāvas savienotājs: Jā
atbalstītais ekrānu skaits: 3
atbalstītās atmiņas veidi: DDR5-SDRAM
atbalstītās windows operētājsistēmas: Windows 10 x64, Windows 11 x64
atbalstītie atmiņas disku veidi: HDD & SSD
atbalstītie atmiņas pulksteņa ātrumi: 4800 MHz
atbalstītie glabāšanas diska interfeisi: M.2, SATA III
atmiņas slotu skaits: 2
atmiņas slotu tips: DIMM
atx power savienotājs: Jā
audio izvades kanāli: 7.1 kanāli
augstums: 58 mm
bios atmiņas izmērs: 128 Mbit
com pieslēgvietu daudzums: 1
com savienotāji: 1
cpu ventilatora savienojums: Jā
displayport versija: 1.4
displayports daudzums: 1
draiveri iekļauti: Jā
dvi-d pieslēgvietu skaits: 1
dziļums: 244 mm
ecc savietojamība: Non-ECC
ethernet interfeisa tips: Tīkls Gigabit Ethernet
ethernet lan (rj-45) pieslēgvietu skaits: 1
ethernet/lan savienojums: Jā
harmonizētās sistēmas (hs) kods: 84733020
hdmi pieslēgvietu skaits: 1
hdmi versija: 2.1
ieslēgšanās pie signāla no lan: Jā
komponente: PC (dators)
komutatora iejaukšanās savienotājs: Jā
m.2 (m) slotu skaits: 1
maksimālā iekšējā atmiņa: 64 GB
mātes plates chipset: Intel H610
mātes plates formas faktors: mikro ATX
mātesplates mikroshēmojuma saime: Intel
nebuferēta atmiņa: Nē
paralēlās apstrādes tehnoloģijas atbalsts: Netiek atbalstīts
pci express x1 sloti: 1
pci express x16 (gen 5.x) sloti: 1
pievienoti kabeļi: SATA
platums: 244 mm
priekšējā paneļa audio savienotājs: Jā
procesora ligzda: LGA 1700
procesora ražotājs: Intel
ps/2 pieslēgvietu skaits: 2
sata iii savienotāju skaits: 4
savietojami procesori: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
smo procesoru maksimālais skaits: 1
svars: 382 g
tpm savienotājs: Jā
usb 2.0 pieslēgvietu skaits: 2
usb 2.0 savienotāji: 2
usb 3.2 gen 1 (3.1 gen 1) savienotāji: 1
usb 3.2 gen 2 (3.1 gen 2) a tipa pieslēgvietu skaits: 2
vga (d-sub) pieslēgvietu skaits: 1
wi-fi: Nē
Description
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Internationally Certified Business Motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 5.0 slot
The 12 Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.

ASUS SHIELD
Enhances system security from bottom to top

ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors1
Supported memory typesDDR5-SDRAM
Number of memory slots2
Maximum internal memory64 GB
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds4800 MHz
Unbuffered memoryNo
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Parallel processing technology supportNot supported
Number of displays supported3
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes
12V power connectorYes
USB 2.0 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
PS/2 ports quantity2
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
COM ports quantity1
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wake-on-LAN readyYes
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x1 slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots1
BIOS memory size128 Mbit
Harmonized System (HS) code84733020
Width244 mm
Depth244 mm
Height58 mm
Cables includedSATA
Drivers includedYes
Weight382 g
