Gigabyte Motherboard Z890 AERO

Gigabyte Motherboard Z890 AERO

Delivery to the store takes 3 - 7 business days.
ID: 134162
Product Code: Z890 AERO G
Barcode 4719331865139
327.78€
(Ex Tax: 264.34€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFZ890A03
svītrkods: 4719331865139
Description
SKUKBGBAIIFZ890A03
Barcode4719331865139
ModelZ890 AERO G
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUYes
Chipset manufacturerIntel
Chipset typeIntel Z890 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6800 MHz
Memory bus frequency7000 MHz
Memory bus frequency6000 MHz
Memory bus frequency8800 MHz
Memory bus frequency8600 MHz
Memory bus frequency8400 MHz
Memory bus frequency8200 MHz
Memory bus frequency8266 MHz
Memory bus frequency8000 MHz
Memory bus frequency7950 MHz
Memory bus frequency7800 MHz
Memory bus frequency7900 MHz
Memory bus frequency7600 MHz
Memory bus frequency7400 MHz
Memory bus frequency7200 MHz
Memory bus frequency5800 MHz
Memory bus frequency6600 MHz
Memory bus frequency5600 MHz
Memory bus frequency8933 MHz
Memory bus frequency9066 MHz
Memory bus frequency9200 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 8
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 4
Expansion slots2 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU:- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M-key, Type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 1 x M.2 connector (Socket 3, M Key, Type 2280 SATA and PCIe 4.0 x4/x2 SSD support (M2M_SB)- 4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
GraphicsIntegrated Graphics Processor - Intel HD Graphics support:- 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputWhen a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output).* Due to the limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, refer to 2-6 Back Panel Connectors.)* Support for DisplayPort 2.1 and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 and HDCP 2.3.- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30Hz* Support HDMI version 1.4.(Graphics specification may vary depending on CPU support.)Support up to three displays simultaneously
Sound cardRealtek ALC1220 CODEC* The line-out jack on the rear panel supports DSD audio.High-Resolution Audio2/4/5.1/7.1-channel* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.S/PDIF output support
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interface2 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceLAN 2 x Intel 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) Wireless communication module Intel Wi-Fi 7 BE202 (BE200NGW M) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard
USB ports at back panel9
USB ports on motherboard8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

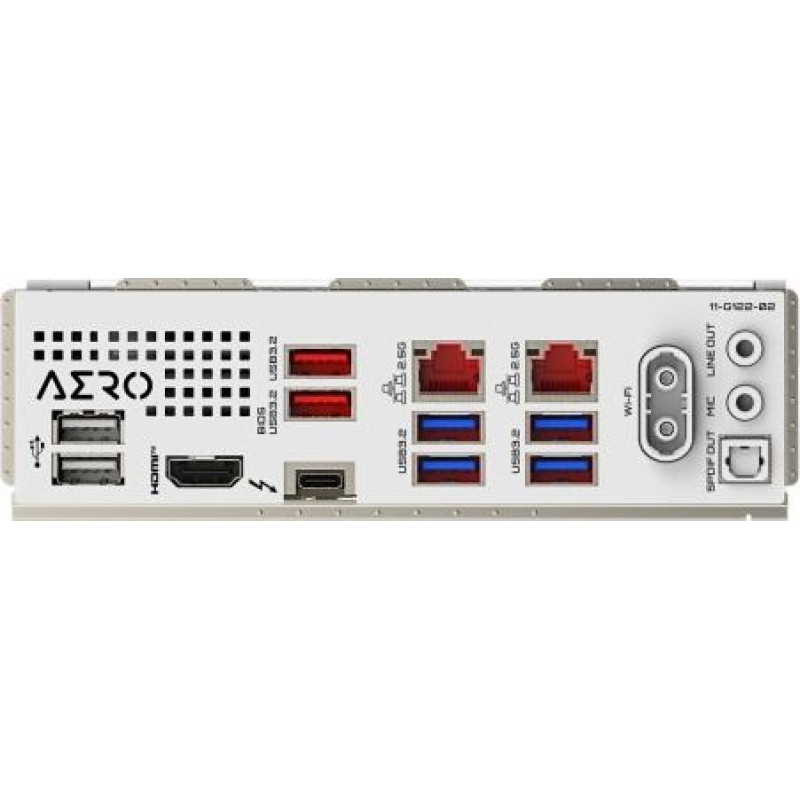

External connectors2 x USB 2.0
External connectors1 x S/PDIF
External connectors2 x RJ-45
External connectors1 x Thunderbolt 4
External connectors2 x USB 3.2 Gen 2 Type-A
External connectors1 x HDMI
External connectors1 x Line Out
External connectors4 x USB 3.2 Gen 1 Type-A
External connectors1 x MIC
External connectors2 x SMA
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Reset button
Onboard connectors1 x Reset jumper
Onboard connectors1 x Power button
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors5 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB C
Onboard connectors1 x HDMI
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x RGB LED strip header
Onboard connectors3 x Addressable LED
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 cm x 24.4 cm
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM version) LAN bandwidth management software
DesignationCE+WEEE
