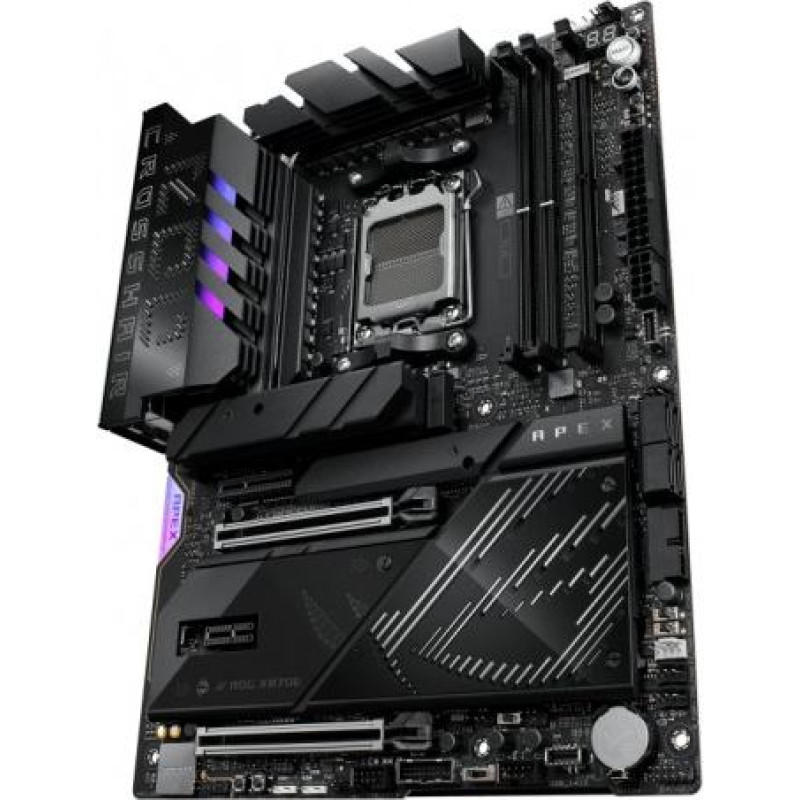

Asus Motherboard ROG CROSSHAIR X870E APEX

Asus Motherboard ROG CROSSHAIR X870E APEX

Out Of Stock
ID: 139900
Product Code: ROG CROSSHAIR X870E APEX
Barcode 4711387890240
779.65€
(Ex Tax: 628.75€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8X870A09
svītrkods: 4711387890240
Description
SKUKBASUAA8X870A09
Barcode4711387890240
ModelROG CROSSHAIR X870E APEX
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency9600 MHz
Max memory size128
Expansion slots2 x PCIe 5.0 x16
Expansion slots1 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 4
Expansion slots2 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesAMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Graphics2 x USB4 (40Gbps) ports support USB Type-C display outputs
Sound cardROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel" Audio Features  SupremeFX Shielding Technology  Savitech SV3H712 AMP   Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors Audio cover
Network interface1 x 10/100/1000/2500/5000 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceLAN: Realtek 5Gb Ethernet ASUS LANGuard   Wireless: Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927) 2x2 Wi-Fi 7 (802.11be)  Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4
USB ports at back panel10
USB ports on motherboard10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports6
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Przycisk Clear CMOS
External connectors1 x Wi-Fi Module
External connectors2 x USB4 Type-C
External connectors1 x Flash BIOS Button
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x S/PDIF
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors5 x USB 3.2 Gen 2 Type-A
Onboard connectors1 x Thermal sensor connector
Onboard connectors4 x SATA II 3Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors3 x Addressable LED
Onboard connectors4 x USB 3.2 Gen 1 Type-A
Onboard connectors2 x USB 3.2 Gen 2x2 Type-C
Onboard connectors1 x System panel header
Onboard connectors3 x M.2
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 4-pin Extra Flow Fan header
Onboard connectors2 x 4-pin Full Speed Fan headers
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8-pin PCIe
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
BIOS2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form factorATX
Dimensions30.5 x 24.4 cm
Accessories includedROG DIMM.2 with Heatsink ROG DIMM.2 with heatsink M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit ROG Memory Fan Kit Miscellaneous ASUS WiFi Q-Antenna Q-connector 3 x M.2 Q-Slide package 3 x M.2 rubber package ROG stickers ROG thank you card ROG Bottle Opener Installation Media USB drive with utilities and drivers  Documentation Quick start guide
Supported operating systemsWindows 11
SoftwareROG Exclusive Software  ROG CPU-Z Dolby Atmos Internet Security (1-year full version) ASUS Exclusive Software  Armoury Crate AIDA64 Extreme (1 year full version)  Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core  WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY  ASUS CrashFree BIOS 3  ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey
DesignationCE+WEEE
