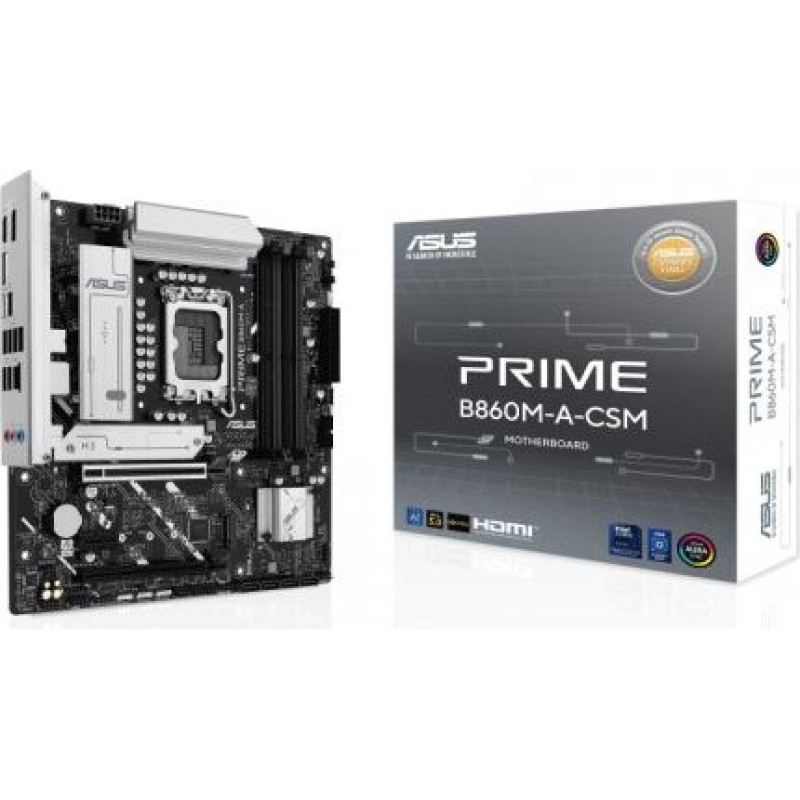

Asus Motherboards PRIME B860M-A-CSM

Asus Motherboards PRIME B860M-A-CSM

Delivery to the store takes 3 - 7 business days.
ID: 139902
Product Code: PRIME B860M-A-CSM
Barcode 4711387819869
184.70€
(Ex Tax: 148.95€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUIIFB860U04
svītrkods: 4711387819869
Description
SKUKBASUIIFB860U04
Barcode4711387819869
ModelPRIME B860M-A-CSM
CPU socketLGA1851
Processor familyIntel Core Ultra
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B860 Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency8666 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode) IntelB860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics2 x DisplayPort 1 x HDMI
Sound cardRealtek 7.1 Surround Sound High Definition Audio CODEC*: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Network interface1 x 10/100/1000/2500 Mbit/s
Network interface1 x Realtek 2.5Gb Ethernet ASUS LANGuard
USB ports at back panel8
USB ports on motherboard5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x DisplayPort
External connectors1 x USB 3.2 Gen 2x2 Type-C
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors2 x USB 3.2 Gen 1 Type-A
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x Line In
External connectors1 x HDMI
External connectors4 x USB 2.0
Onboard connectors3 x Addressable LED
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 4-pin water-pump-fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x RGB LED strip header
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Chassis intrusion header
Onboard connectors2 x USB 2.0/1.1 header
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Accessories included2 x SATA 6Gb/s cable M.2 rubber package Screw package for M.2 SSD ACC Express Activation Key Card Quick start guide
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareWOL by PME, PXE
DesignationCE+WEEE
