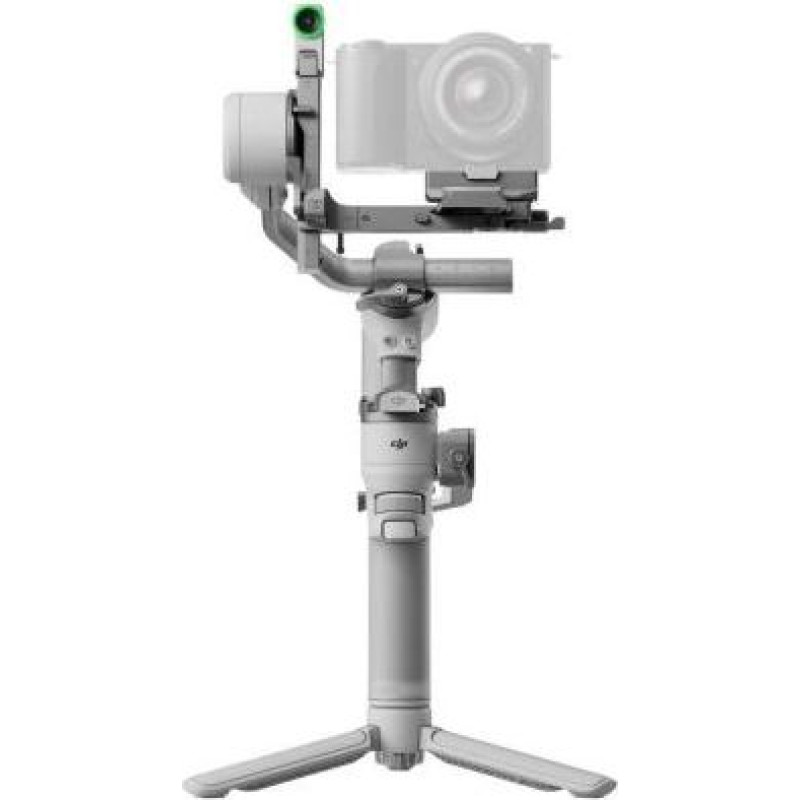

DJI RS4 Mini Combo EU (CP.RN.00000443.03)

Technical specifications:

Peripheral:

• Accessory Port: NATO Port
• Mounting Hole: 1/4"-20
• RSS Camera Control Port: USB-C
• Pogo Pin: Compatible with the DJI RS Intelligent Tracking Module

Battery

• Model: BHX724-3100-7.2
• Type: LiPo 2S
• Capacity: 3100 mAh
• Energy: 22.32 Wh
• Max Runtime: 13 hours (stationary)*
• Charging Specification: 9 V/2.5 A
• Charging Time: Approx. 1 hour and 50 minutes**
• Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections

• Bluetooth: 5.1
• USB-C Charging Port
• Ronin App Requirements

  • iOS: 14.0 or above
  • Android: 9.0 or above

Languages Supported by the Touchscreen

• English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

• Tested Payload: 0.4-2 kg (0.88-4.4 lbs)
• Maximum Controlled Rotation Speed:
  • Pan: 360°/s
  • Tilt: 360°/s
  • Roll: 360°/s
• Mechanical Range:

  • Pan Axis: 360° continuous rotation
  • Roll Axis: -95° to +235°
  • Tilt Axis: -110° to +210°
• Axis Locks: Auto
• Vertical Shooting: Supported

Mechanical & Electrical Properties

• Operating Frequency: 2.4000-2.4835 GHz
• Bluetooth Transmitter Power: < 4 dBm
• Operating Temperature: -10° to 45° C (14° to 113° F)

Weight

• Gimbal: Approx. 890 g (2 lbs) (including the Quick-Release Plate and excluding the tripod)
• Extended Grip/Tripod: Approx. 140 g (0.3 lbs)

Dimensions

• Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate)
• Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate)

Accessories

• DJI RS Intelligent Tracking Module:

  • Weight: 19 g
  • Dimensions: 33.5×17.5×38.5 mm (L×W×H)
• Tracking Distance: 0.5-10 m
• Operating Environment: Illuminance > 20 lux
• Trigger Modes: Gimbal trigger, gesture
• Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment
• Power Consumption: < 1 W
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Mounting Method: Magnetic attachment

DJI RS 4 Mini Phone Holder:

• Weight: 92.5 g
• Dimensions: 50×48×95.15 mm (L×W×H)
