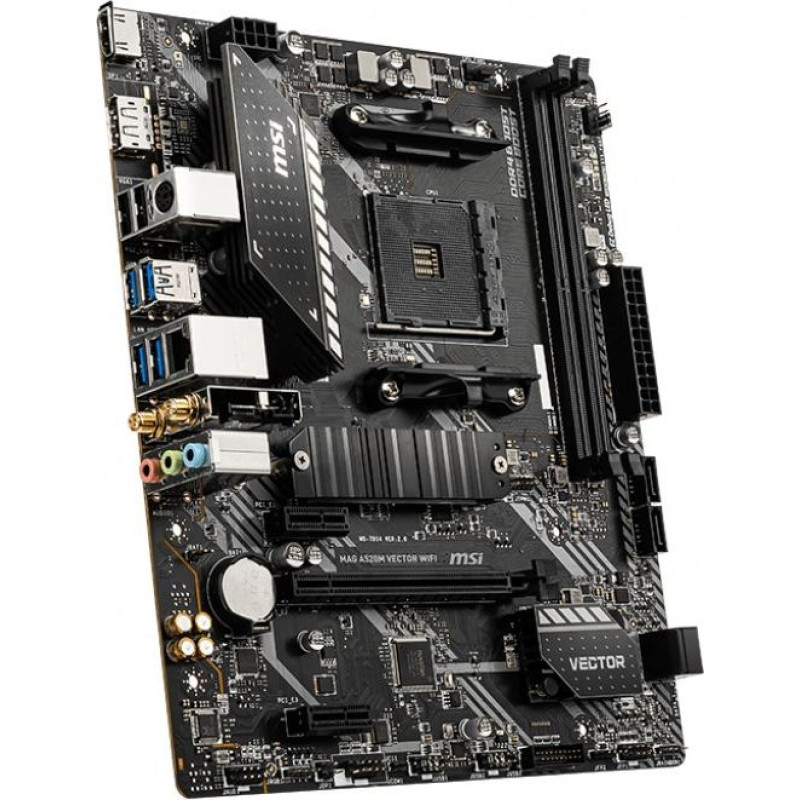

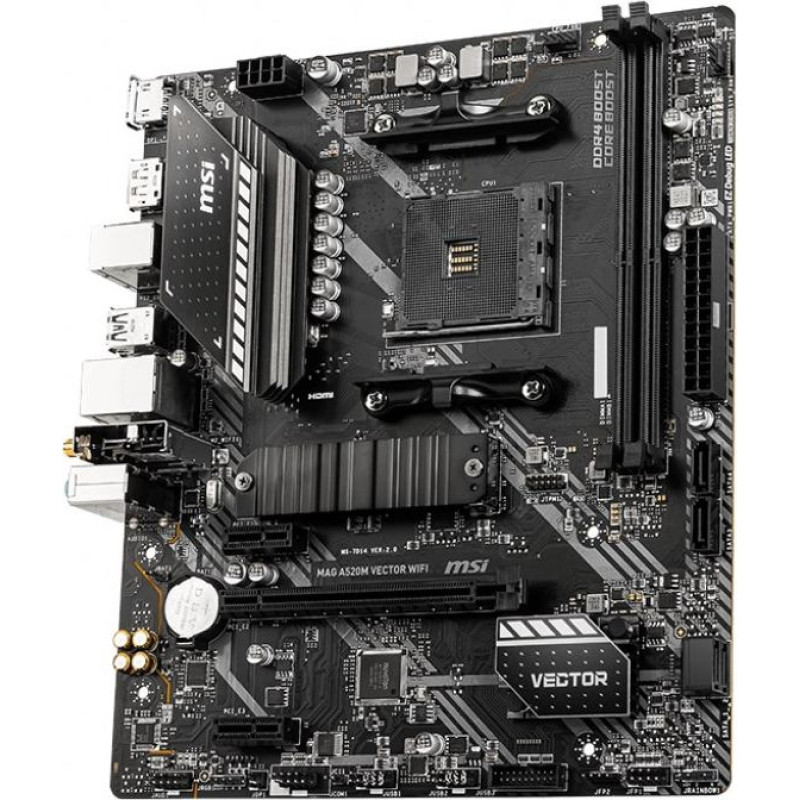

MSI MAG A520M VECTOR WIFI motherboard AMD A520 Socket AM4 micro ATX

MSI MAG A520M VECTOR WIFI motherboard AMD A520 Socket AM4 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 142133
Product Code: MAG A520M VECTOR WIFI
Barcode 4719072752583
80.78€
(Ex Tax: 65.15€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketSocket AM4
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 3000 Series
Maximum number of SMP processors1
Maximum resolution4096 x 2160 pixels
Maximum graphics card memory2048 MB
Audio chipRealtek ALC892
Motherboard chipset familyAMD
Motherboard form factormicro ATX
Motherboard chipsetAMD A520
Audio output channels7.1 channels
Unbuffered memoryYes
Supported memory clock speeds2400
Number of memory slots2
Maximum internal memory64 GB
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Depth210 mm
Width244 mm
LAN controllerRealtek RTL8111H
Bluetooth version4.2
Wi-Fi standards802.11b
Ethernet interface typeGigabit Ethernet
BluetoothYes
Wi-FiYes
Ethernet LANYes
CPU fan connectorYes
Number of SATA III connectors4
Number of chassis fan connectors1
TPM connectorYes
12V power connectorYes
USB 2.0 connectors2
Front panel audio connectorYes
Serial port headers1
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
RGB LED pin headerYes
Chassis intrusion connectorYes
Clear CMOS jumperYes
Drivers includedYes
Cables includedSATA
RAID levels10
Supported storage drive interfacesSATA III
Supported storage drive typesHDD & SSD

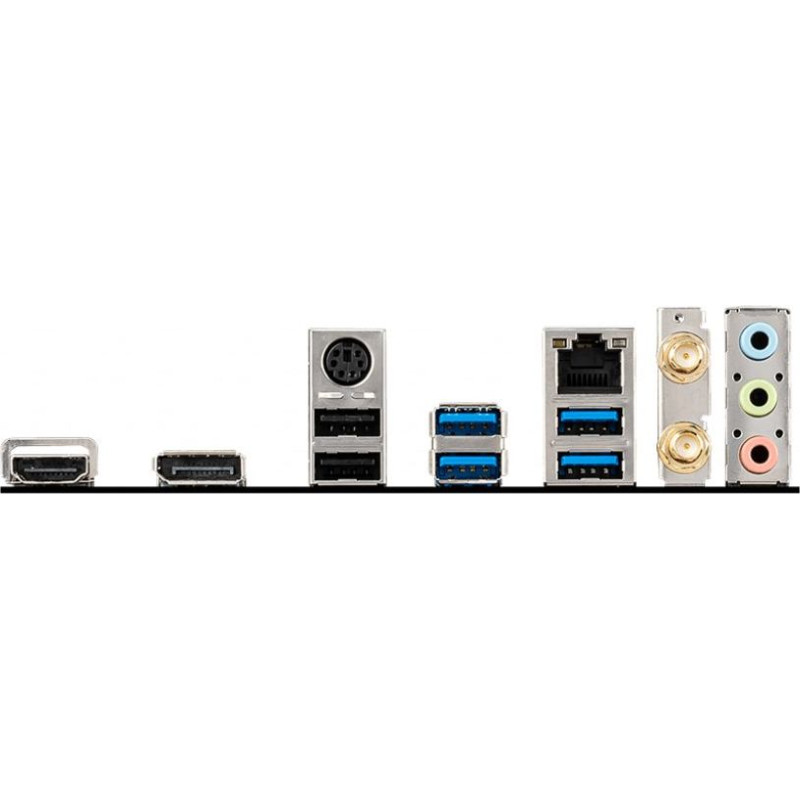

Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
PS/2 ports quantity1
HDMI version2.1
WiFi-AP antenna jack2
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1
Harmonized System (HS) code84733020
