Home Computers and equipment Computer components Motherboard MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX
MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX

MSI

MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 146079
Product Code: 7D99-017R
Barcode 4711377154017
134.70€
(Ex Tax: 108.63€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesIntel® Celeron®
Processor manufacturerIntel
Processor socketLGA 1700
Maximum number of SMP processors1
Supported processor socketsLGA 1700
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Audio chipRealtek ALC897
Audio output channels7.1 channels
Motherboard chipsetIntel B760
Windows operating systems supportedWindows 10
Power source typeATX
ECC сompatibilityNon-ECC
Supported memory clock speeds6600
Maximum internal memory192 GB
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
Supported memory clock speed (max)6800 MHz
Depth243.8 mm
Width243.8 mm
BluetoothYes
Ethernet LANYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Bluetooth version5.3
Wi-Fi standards802.11ad
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Number of SATA III connectors4
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
TPM connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
CPU fan connectorYes
Front panel connectorYes
Clear CMOS jumperYes
BIOS typeUEFI AMI
Supported storage drive interfacesM.2, SATA III
RAID supportYes

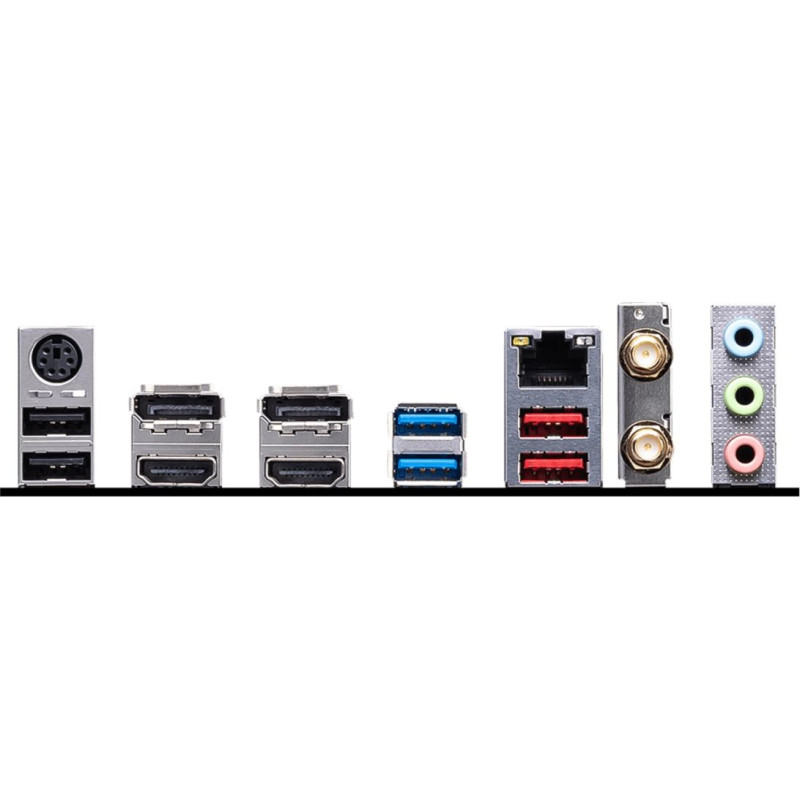

DisplayPort version1.4
DisplayPorts quantity2
HDMI version2.1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 2.0 ports quantity2
PCI Express x1 (Gen 3.x) slots2
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
