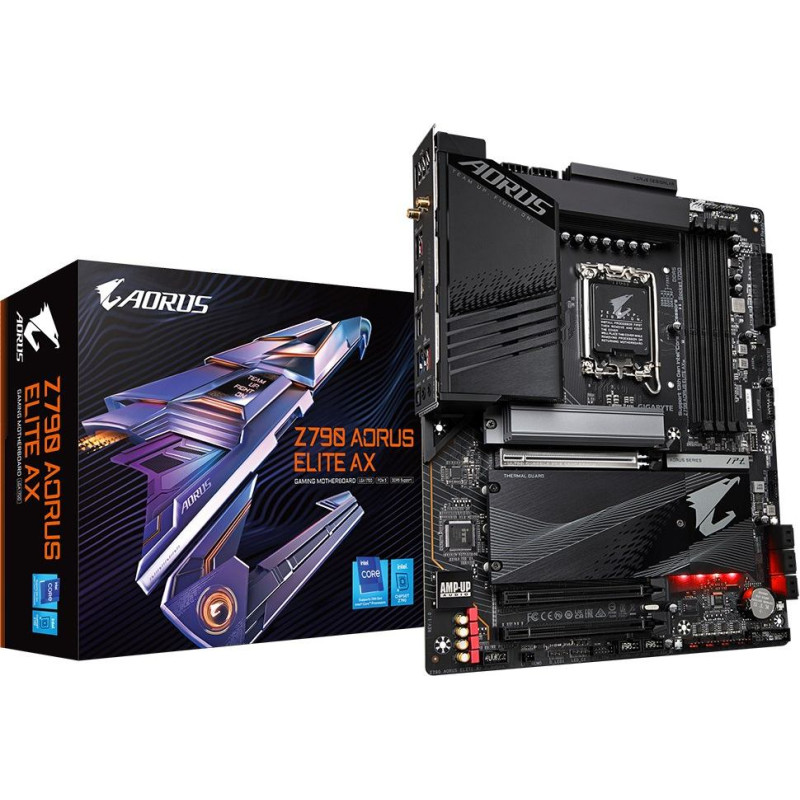

Gigabyte Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

GIGABYTE

Gigabyte Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

7-10 days (delivery after holidays)
ID: 149831
Product Code: Z790 AORUS ELITE AX
Barcode 4719331849467
214.85€
(Ex Tax: 173.27€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Maximum internal memory supported by processor192 GB
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i7
Processor manufacturerIntel
Supported processor socketsLGA 1700
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportCrossfire
On-board graphics cardNo
DirectX version12.0
HDCPYes
Windows operating systems supportedWindows 11 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel Z790
Motherboard form factorATX
Audio output channels7.1 channels
PC health monitoringVoltage
Product colourBlack
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Number of memory slots4
Supported memory clock speed (max)7600 MHz
Supported memory clock speeds6000
Unbuffered memoryYes
Maximum internal memory192 GB
Depth244 mm
Height35 mm
Width305 mm
Ethernet LANYes
WLAN controller modelIntel Wi-Fi 6E AX211
Wi-Fi standardsWi-Fi 4 (802.11n)
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
BluetoothYes
Number of SATA III connectors6
TPM connectorYes
Front panel connectorYes
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Total number of SATA connectors6
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
12V power connectorYes
Thunderbolt headers2
USB 2.0 connectors2
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Clear CMOS buttonYes
BIOS typeUEFI AMI
Package depth270 mm
Package width335 mm
Package weight2.32 kg
Package height80 mm
Bundled softwareNorton Internet Security
Batteries includedYes
Cables includedSATA
RAID levels1
RAID supportYes
Number of storage drives supported10
Number of HDDs supported6
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
WiFi-AP antenna jack2
HDMI version2.0
DisplayPort version1.2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 2.0 ports quantity4
Headphone outputs2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB connector typeUSB Type-C
Microphone inYes
USB 3.2 Gen 2x2 Type-C ports quantity1
DisplayPorts quantity1
S/PDIF out portYes
Number of M.2 (M) slots4
PCI Express x16 slots3
Battery typeCR2032
Number of battery cells1
Lithium weight per battery0.07 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Products per shipping (inner) case1 pc(s)
Country of originChina
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
