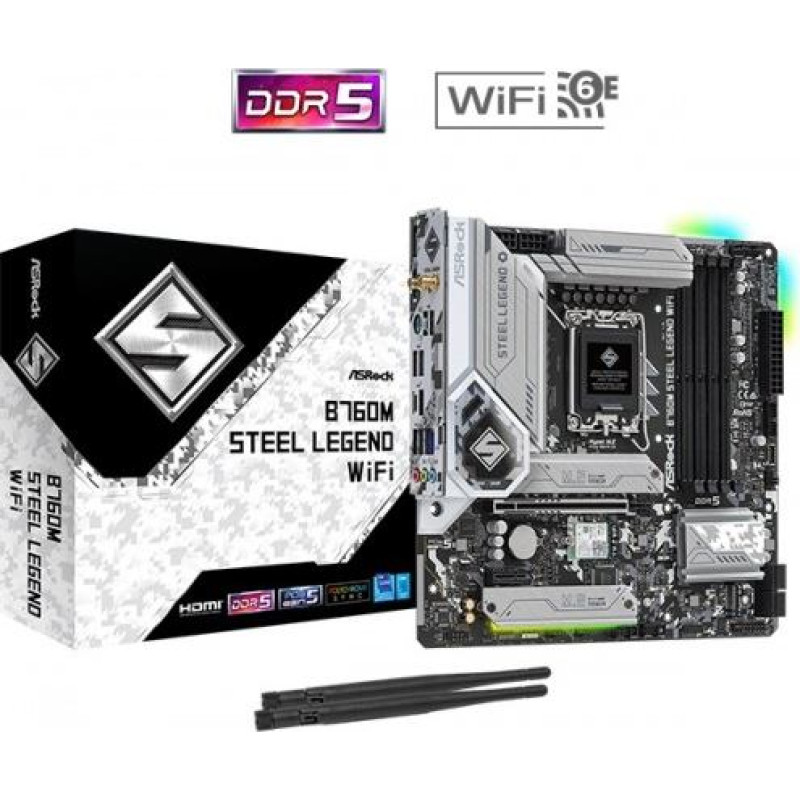

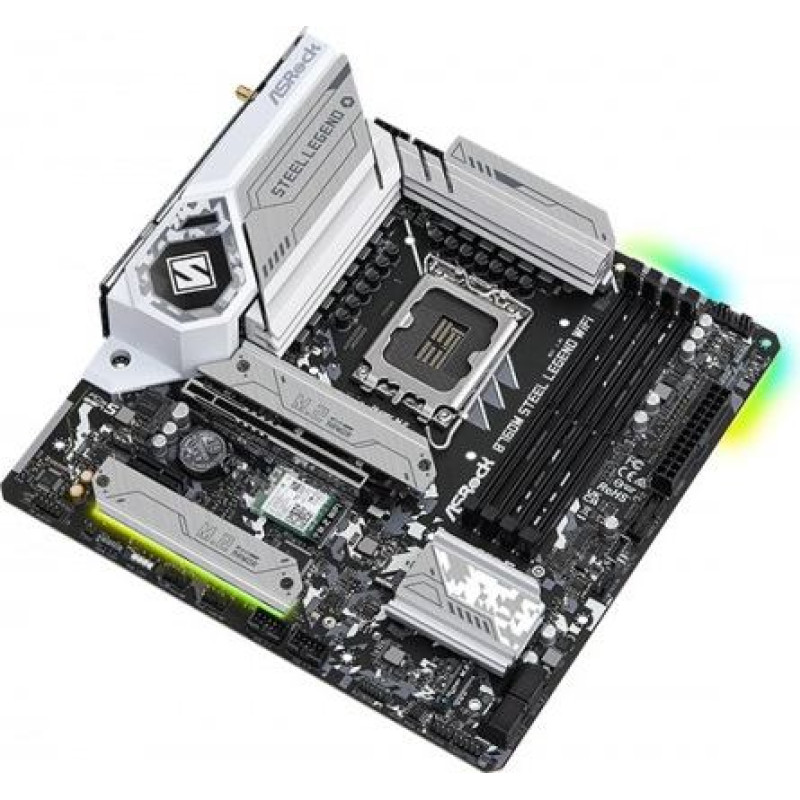

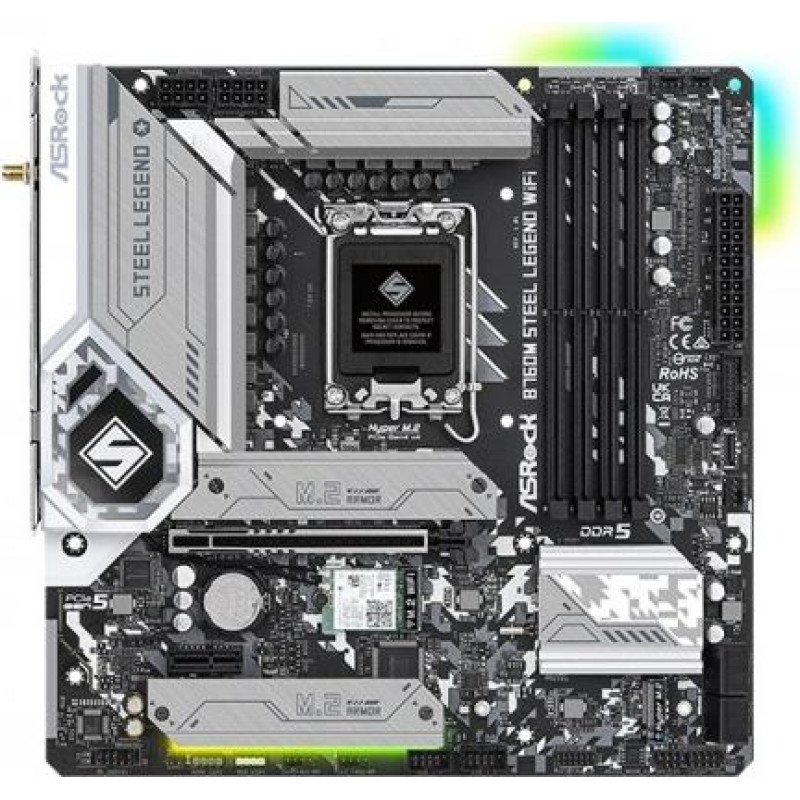

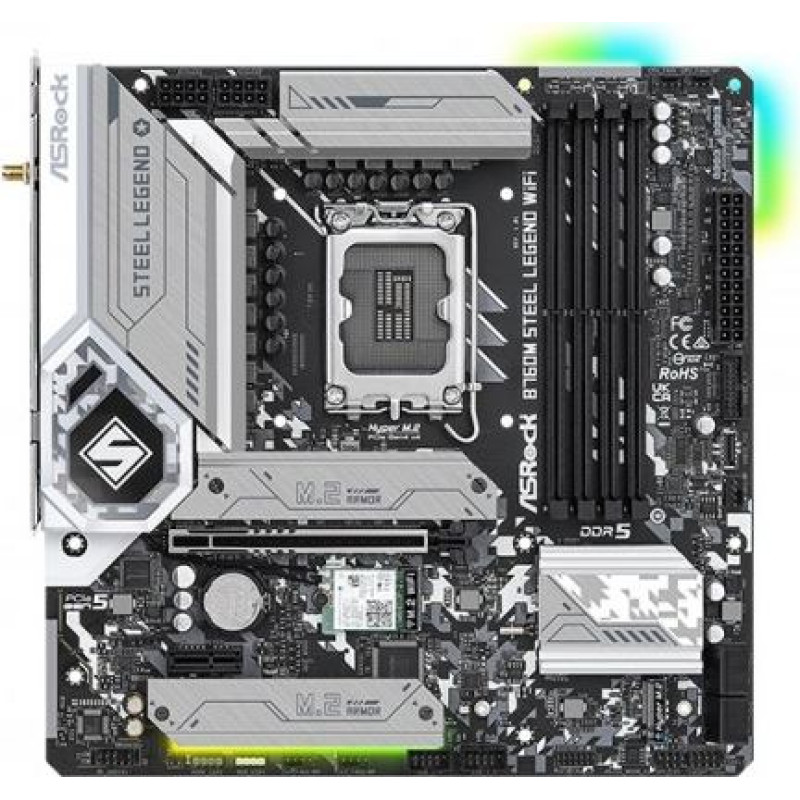

Asrock Motherboard B760M STEEL LEGEND WIFI s1700 4DDR5 DP/HDMI mATX

Asrock Motherboard B760M STEEL LEGEND WIFI s1700 4DDR5 DP/HDMI mATX

Delivery to the store takes 3 - 7 business days.
ID: 151237
Product Code: B760M STEEL LEGEND WIFI
Barcode 4710483941795
144.32€
(Ex Tax: 116.39€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIEB760U01
svītrkods: 4710483941795
Description
SKUKBASRIIEB760U01
Barcode4710483941795
ModelB760M STEEL LEGEND WIFI
CPU socketLGA1700
Processor familyIntel Core i9
Processor familyIntel Celeron
Processor familyIntel Core i7
Processor familyIntel Core i5
Processor familyIntel Pentium
Processor familyIntel Core i3
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7200 MHz
Max memory size128
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64Gbps) chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gbps) 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gbps) 4 x SATA3 6.0Gb/s connector
GraphicsIntel Xe graphics architecture (12th generation) eDP 1.4, supports max. resolution up to Full HD 60 Hz HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and up to 4K 60 Hz max. resolution DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Integrated Intel UHD graphics and VGA outputs can only be supported by processors with integrated GPU.
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceBluetooth
Network interfaceLAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports3
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors2 x SMA
External connectors2 x USB 2.0
External connectors4 x USB 3.0
External connectors1 x USB 3.1
External connectors1 x Line In
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x USB 3.1 Type-C
External connectors1 x MIC
External connectors1 x RJ-45
External connectors1 x Line Out
Onboard connectors3 x Addressable LED
Onboard connectors1 x eDP
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors2 x 8pin 12V
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 4pin CPU fan
BIOS128Mb AMI UEFI Legal BIOS with GUI support
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Accessories includedUser manual 2 x SATA data cable 2 x ASRock Wi-Fi 2.4/5/6GHz Antenna 3 x Screws for M.2 slot 3 x Brackets for M.2 slot
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareSoftware: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
DesignationCE+WEEE
