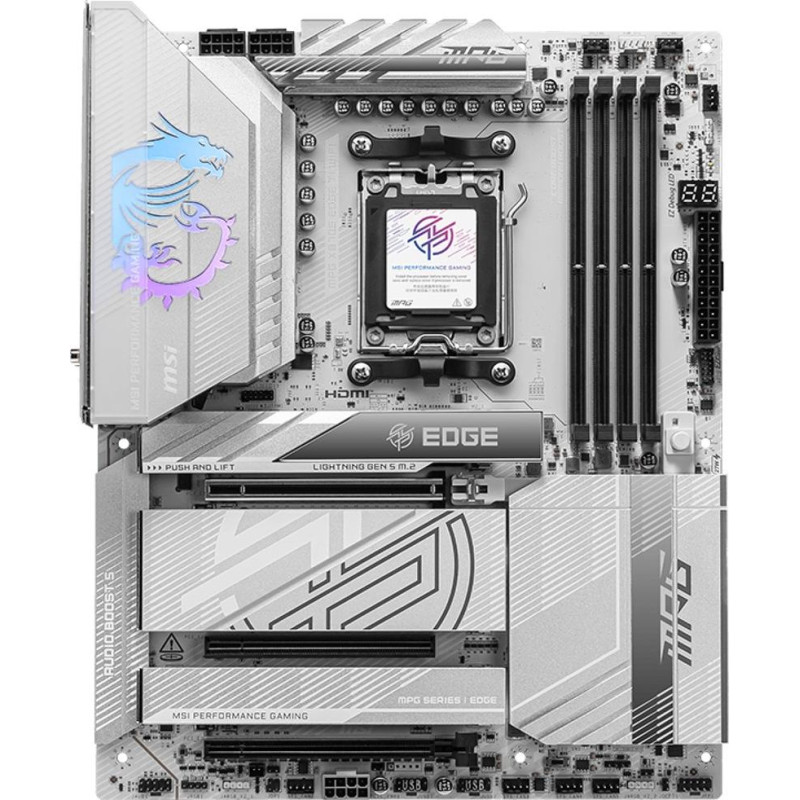

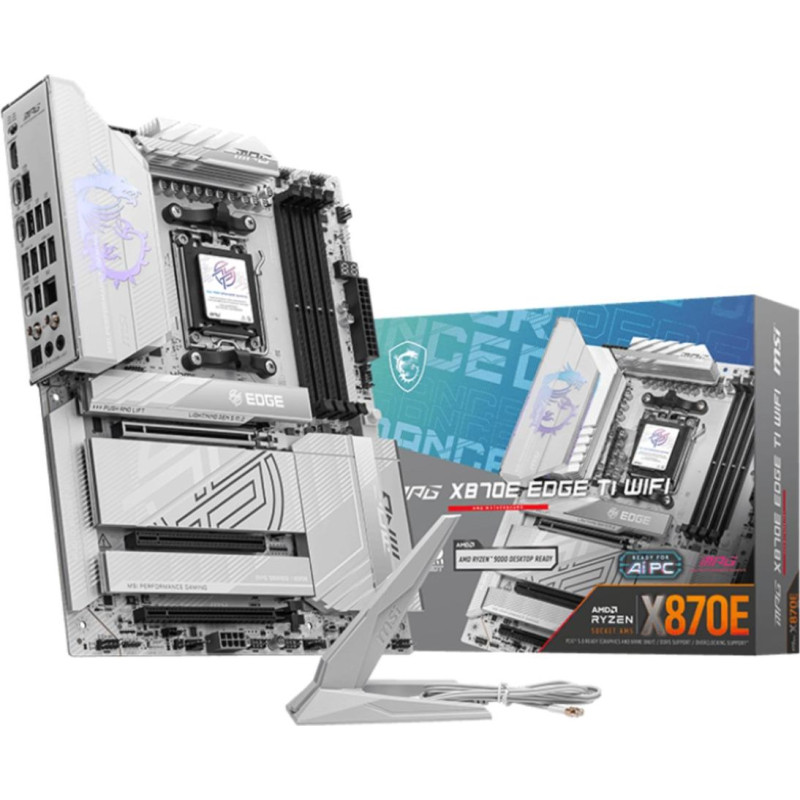

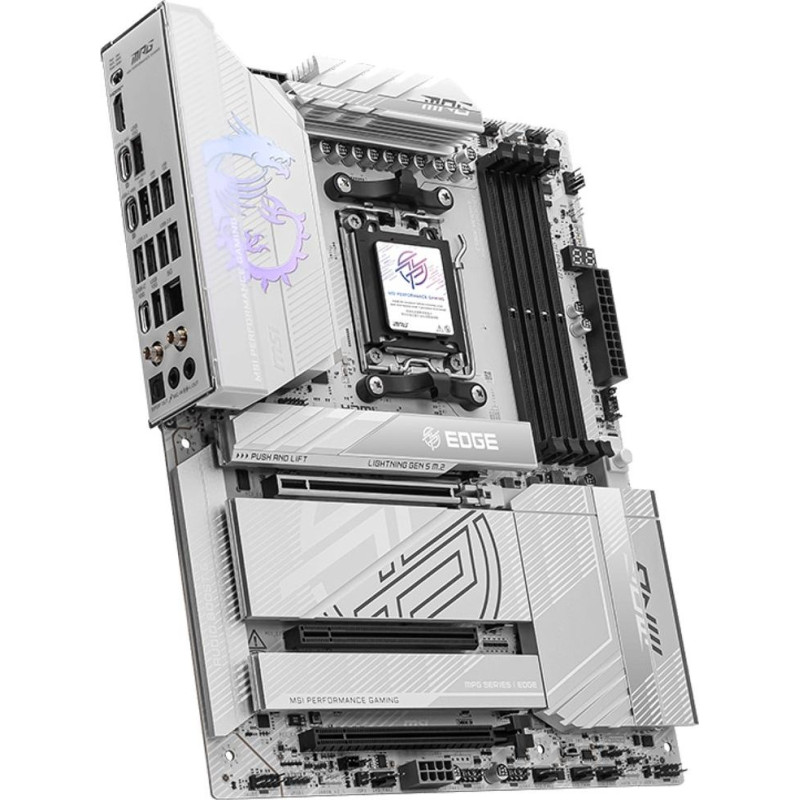

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

MSI

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

Delivery to the store takes 3 - 7 business days.
ID: 151265
Product Code: MPG X870E EDGE TI WIFI
Barcode 4711377290630
380.13€
(Ex Tax: 306.55€)
Payment options

Delivery options

omniva  venipak



Description
Description
Maximum internal memory supported by processor256 GB
Compatible processor seriesAMD Ryzen 7000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
On-board graphics cardNo
Motherboard form factorATX
Motherboard chipsetAMD X870E
PC health monitoringVoltage
Audio output channels7.1 channels
Product colourWhite
Motherboard chipset familyAMD
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Number of memory slots4
Supported memory clock speeds8400 MHz
Maximum internal memory256 GB
Supported memory clock speed (max)8400 MHz
ECC сompatibilityNon-ECC
Depth304.8 mm
Width243.8 mm
Ethernet interface type5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8126
Wi-Fi standards802.11a
BluetoothYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Bluetooth version5.4
Total number of SATA connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
USB 2.0 connectors4
CPU fan connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RAID levels10
Number of storage drives supported8
RAID supportYes
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III

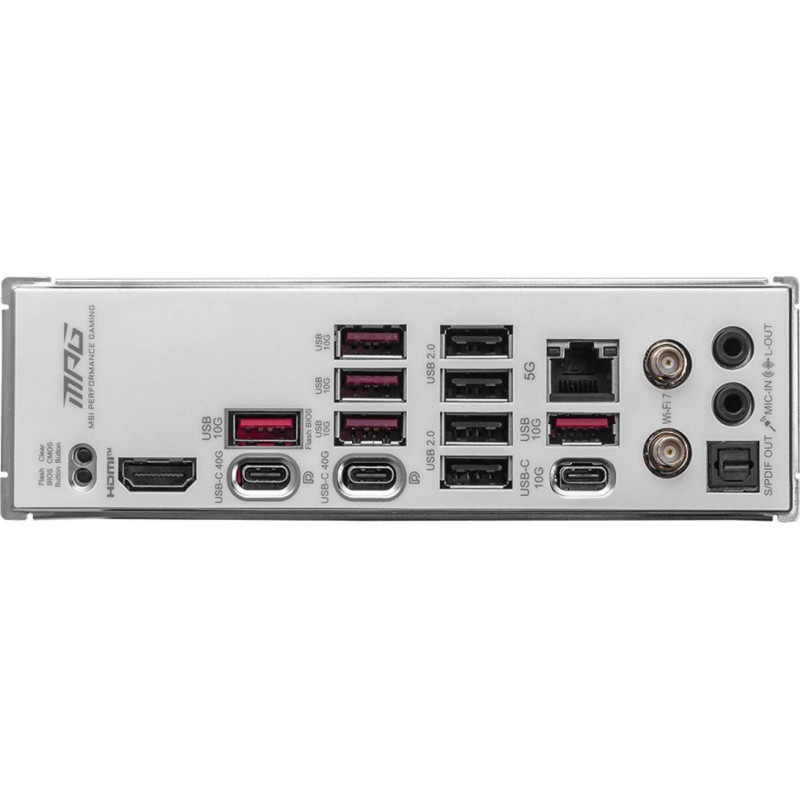

HDMI version2.1
DisplayPorts quantity2
USB 2.0 ports quantity4
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
DisplayPort version1.4
Microphone inYes
S/PDIF out portYes
USB4 Gen 2x2 ports quantity1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots4
PCI Express x16 (Gen 5.x) slots1
1st M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
1st M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size2280
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
