Home Computers and equipment Computer components Motherboard Gigabyte Motherboard A520M DS3H AC AM4 4DDR /HDMI/DVI/DP M.2 mATX

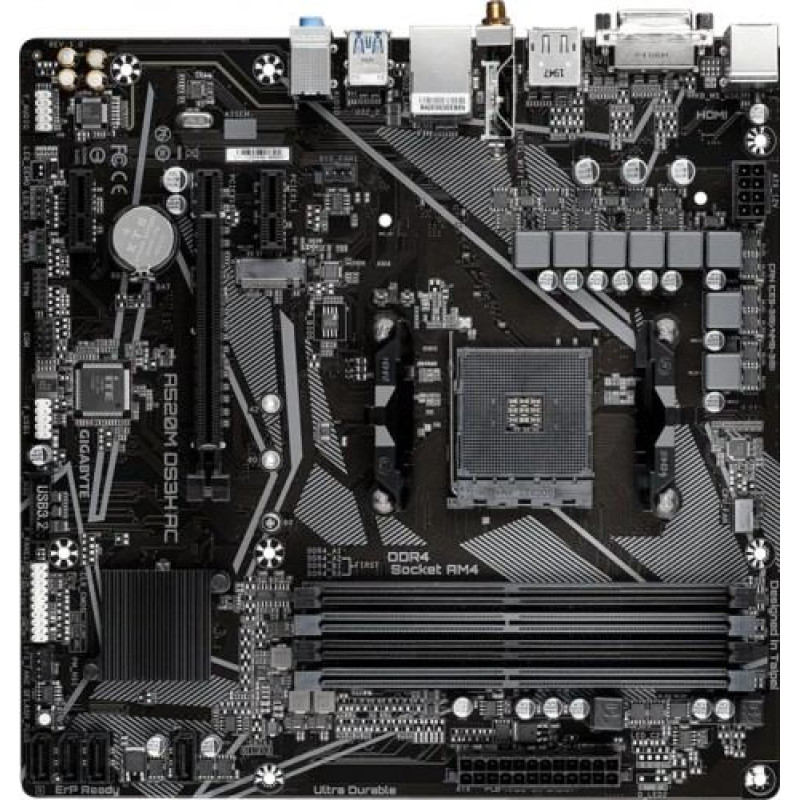

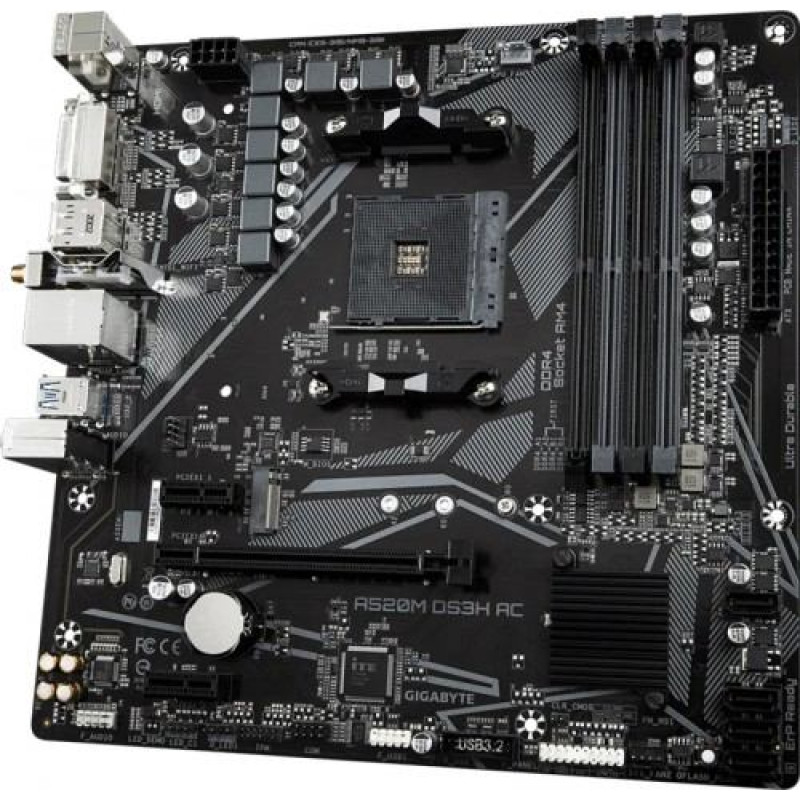

Gigabyte Motherboard A520M DS3H AC AM4 4DDR /HDMI/DVI/DP M.2 mATX

GIGABYTE

Gigabyte Motherboard A520M DS3H AC AM4 4DDR /HDMI/DVI/DP M.2 mATX

Delivery to the store takes 3 - 7 business days.
ID: 154856
Product Code: A520M DS3H AC
Barcode 4719331810696
67.03€
(Ex Tax: 54.06€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA7A520U04
svītrkods: 4719331810696
Description
SKUKBGBAAA7A520U04
Barcode4719331810696
ModelA520M DS3H AC
CPU socketSocket AM4
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 5
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD A520
Memory typeDDR4
Number of DDR4 slots4
Memory bus frequency133 MHz
Memory bus frequency2133 MHz
Memory bus frequency2400 MHz
Memory bus frequency2667 MHz
Memory bus frequency4400 MHz
Memory bus frequency4000 MHz
Memory bus frequency3300 MHz
Memory bus frequency3866 MHz
Memory bus frequency3800 MHz
Memory bus frequency4600 MHz
Memory bus frequency3333 MHz
Memory bus frequency3400 MHz
Memory bus frequency3466 MHz
Memory bus frequency3600 MHz
Memory bus frequency3733 MHz
Memory bus frequency2933 MHz
Memory bus frequency3200 MHz
Memory bus frequency4733 MHz
Max memory size128
Expansion slots1 x M.2
Expansion slots1 x PCIe x 16
Expansion slots2 x PCIe x 1
Expansion slots1 x PCIe 3.0 x 16
Max. number of SATA devices4
RAIDYes
Network interfaceWi-Fi 802.11a/b/g/n/ac
Network interface1 x 10/100/1000 Mbit/s
Network interfaceBluetooth
USB ports at back panel6
USB ports on motherboard4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

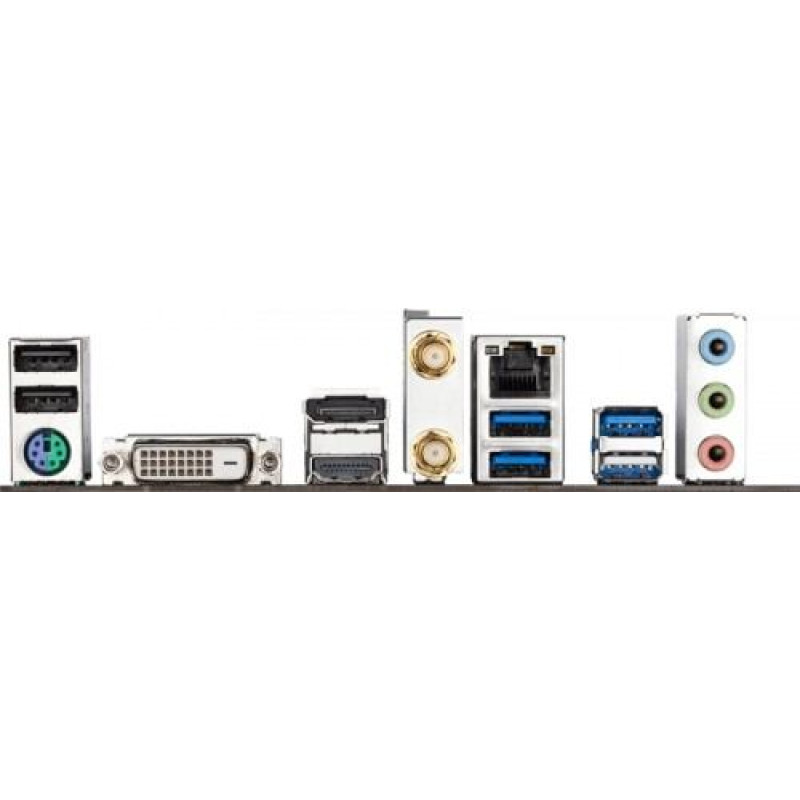

External connectors4 x USB 3.2 Gen 1 Type-A
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x DisplayPort
External connectors1 x DVI-D
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors2 x SMA
Onboard connectors1 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x USB 2.0/1.1 header
Onboard connectors1 x Addressable LED
Onboard connectors1 x Serial port header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x TPM header
Form factormicro ATX
Dimensions24.4 cm x 24.4 cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
DesignationCE+WEEE
