Gigabyte Motherboard H810M GAMING WIFI6

GIGABYTE

Gigabyte Motherboard H810M GAMING WIFI6

Delivery to the store takes 3 - 7 business days.
ID: 155828
Product Code: H810M GAMING WIFI6
Barcode 4719331869090
105.76€
(Ex Tax: 85.29€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIFH810U00
svītrkods: 4719331869090
Description
SKUKBGBAIIFH810U00
Barcode4719331869090
ModelH810M GAMING WIFI6
CPU socketLGA1851
Processor familyIntel Core Ultra
Generationfirst
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel H810 Express
Memory typeDDR5
Number of DDR5 slots2
Memory bus frequency6400 MHz
Memory bus frequency5600 MHz
Max memory size128
Expansion slots1 x PCIe 4.0 x 16
Expansion slots1 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesChipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
GraphicsIntegrated Graphics Processor - Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3) 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz (Support for DisplayPort 2.1 version.
Sound cardRealtek audio codec High Definition Audio Support Audio Channels: 2/4/5.1/7.1 Support for S/PDIF Out
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interfaceLAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)   Wireless communication module: Realtek Wi-Fi 6 RTL8851BE Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5 GHz frequency bands BLUETOOTH 5.3 Supports the 11ax 80 MHz wireless standard
USB ports at back panel6
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo

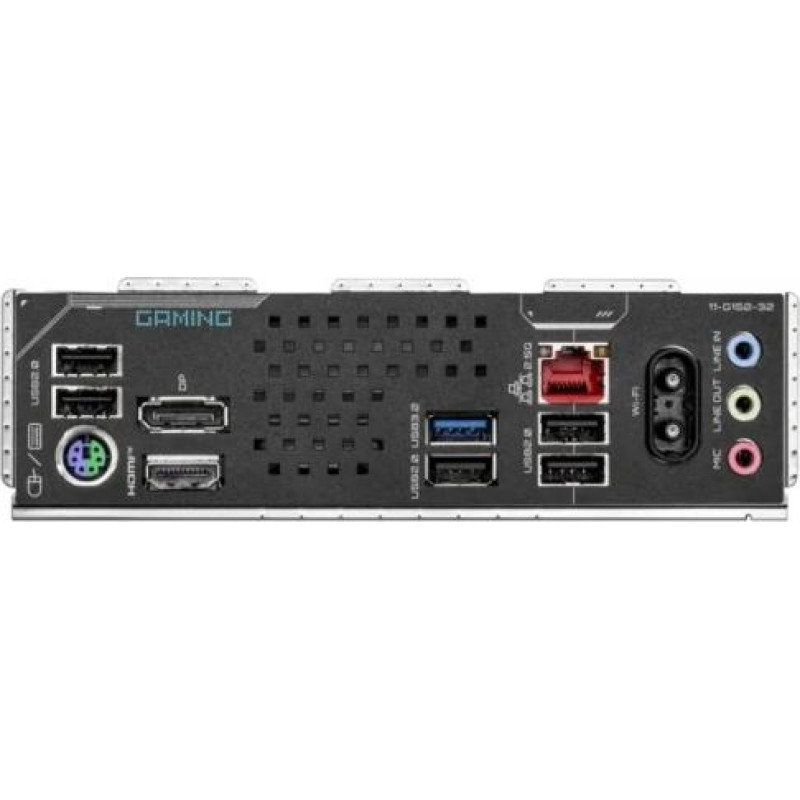

External connectors1 x USB 3.2 Gen 1 Type-A
External connectors1 x MIC
External connectors1 x RJ-45
External connectors5 x USB 2.0
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x PS/2 Keyboard/MouseCombo
Onboard connectors1 x RGB LED strip header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors4 x USB 2.0/1.1
Onboard connectors2 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 21.5 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (wersja OEM) LAN bandwidth management software
DesignationCE+WEEE
