Home Computers and equipment Computer components Motherboard Asrock B760M-H2/M.2 s1700 2DDR5 DP/HDMI mATX

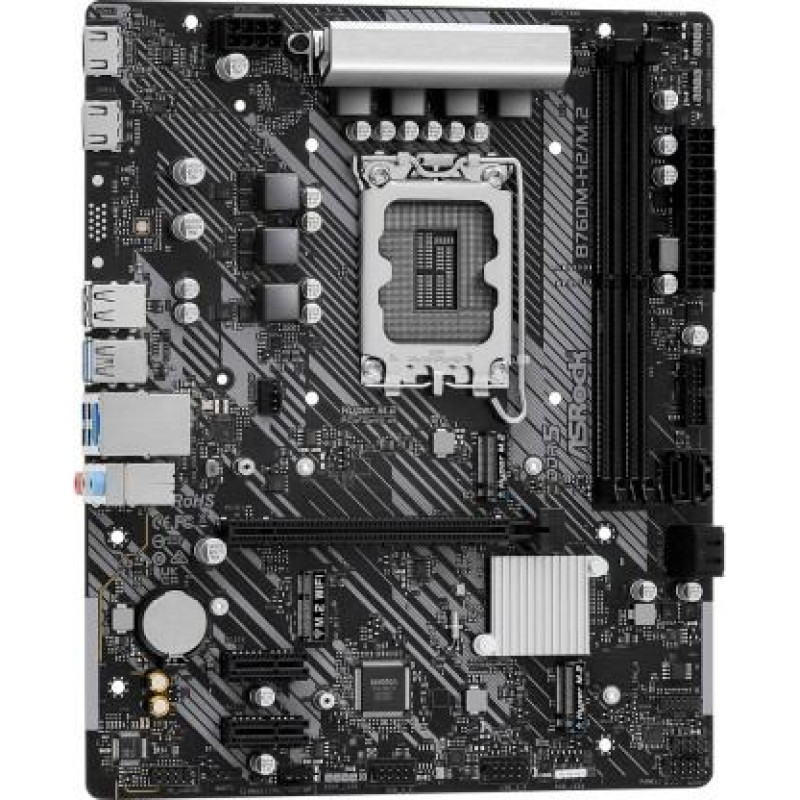

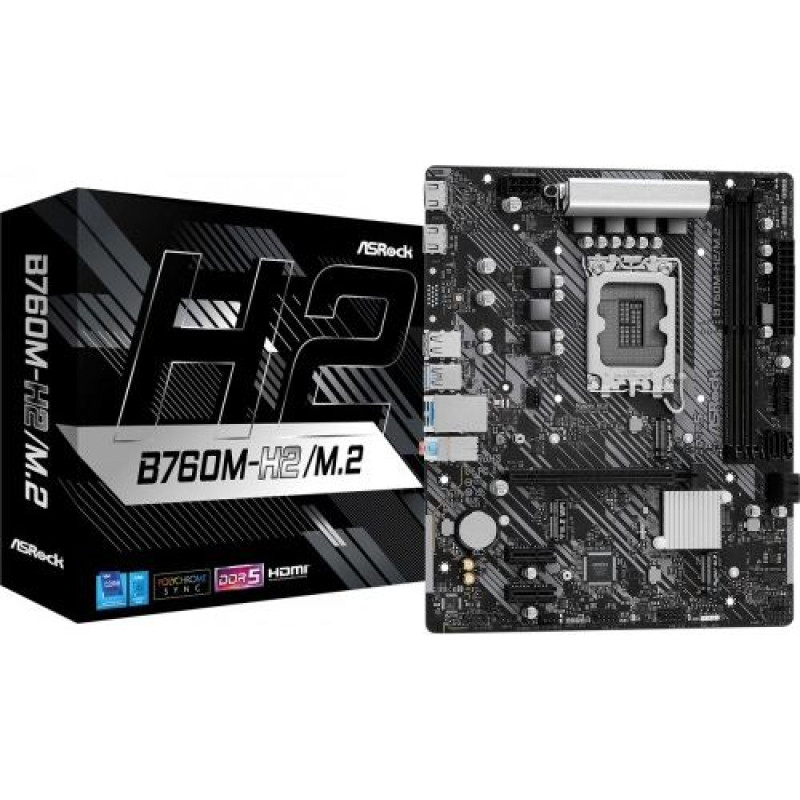

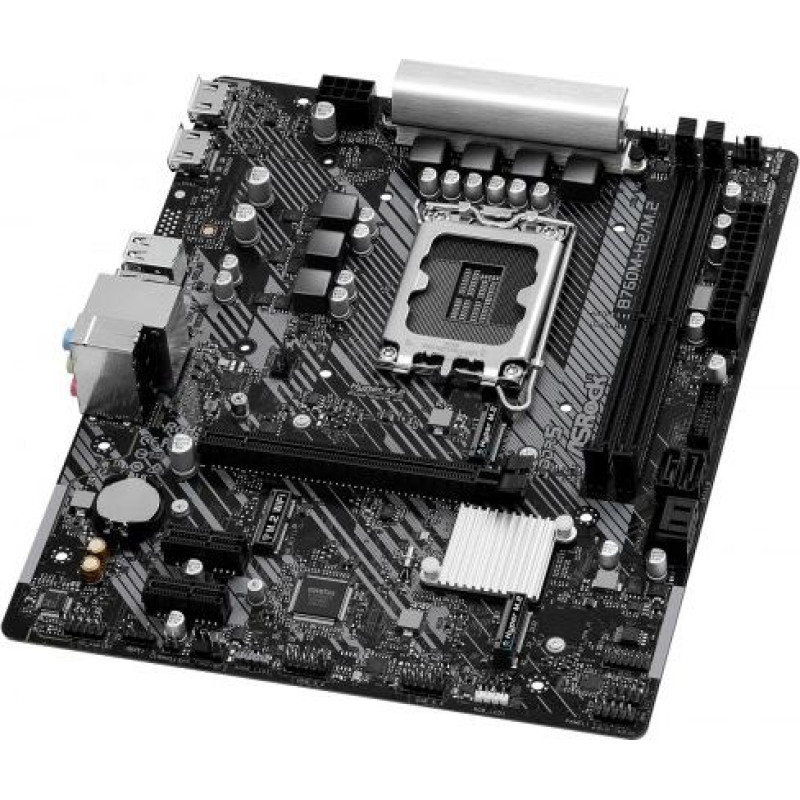

Asrock B760M-H2/M.2 s1700 2DDR5 DP/HDMI mATX

Asrock B760M-H2/M.2 s1700 2DDR5 DP/HDMI mATX

Delivery to the store takes 3 - 7 business days.
ID: 159581
Product Code: B760M-H2/M.2
Barcode 4710483944215
86.84€
(Ex Tax: 70.03€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRIIEB760U08
svītrkods: 4710483944215
Description
SKUKBASRIIEB760U08
Barcode4710483944215
ModelB760M-H2/M.2
CPU socketLGA1700
Processor familyIntel Core
GenerationFourteenth
GenerationThirteenth
GenerationTwelve
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760
Memory typeDDR5
Number of DDR5 slots2
Max memory size128
Expansion slots1 x M.2
Expansion slots2 x PCIe 3.0 x 1
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 × PCIe 4.0 x16 slot (PCIE1), supports x16 mode* Chipset: 2 × PCIe 3.0 x1 slots (PCIE2 and PCIE3)* 1 × M.2 slot (Key E), supports 2230 Wi-Fi/BT PCIe module
GraphicsIntel Xe Graphics Architecture (Gen 12) 2 × HDMI 2.1 TMDS, compatible, supports HDCP 2.3, and maximum resolution up to 4K 60Hz
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Network interface2 x 10/100/1000/2500 Mbit/s
Network interface2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth control Visual, user-friendly interface Visual network usage statistics Optimized default settings for gaming, browsing, and streaming modes User-customizable priority control
USB ports at back panel6
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x SMA
External connectors2 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors4 x USB 3.0
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x TPM header
Onboard connectors1 x Front panel audio header
Onboard connectors3 x Addressable LED
BIOS128Mb AMI UEFI Legal BIOS with GUI support
Form factormicro ATX
Dimensions24.4 x 20.1 cm
Accessories included1 × User Manual 1 × I/O Shield 2 × SATA Data Cables 3 × Screws for M.2 Slots
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareSoftware ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI Features ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Automatic Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
DesignationCE+WEEE
