Home Computers and equipment Computer components Motherboard Asrock B650M PG LIGHTNING AM5 4DDR5 HDMI/DP mATX

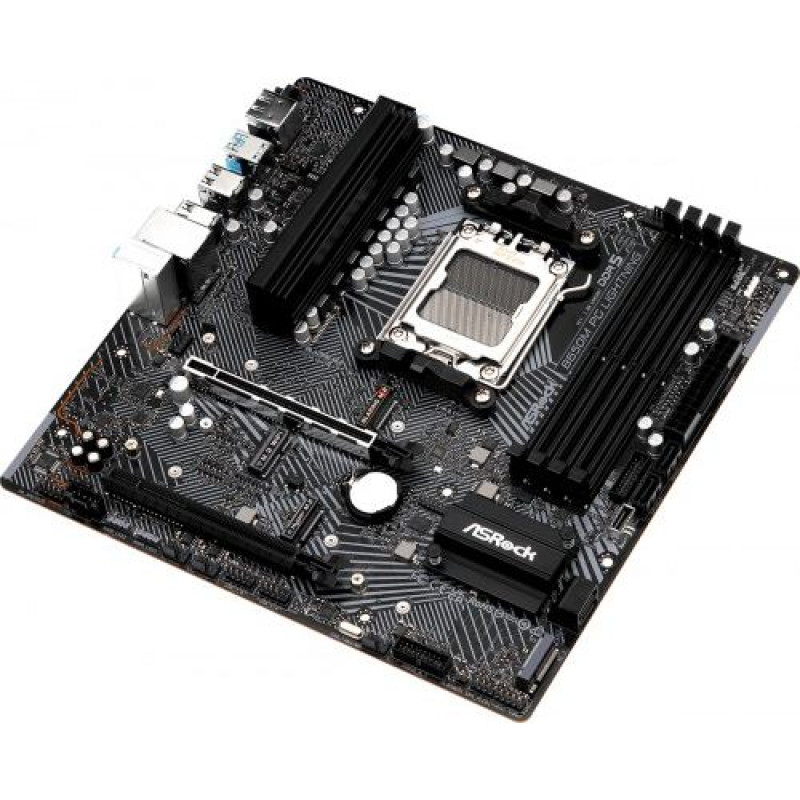

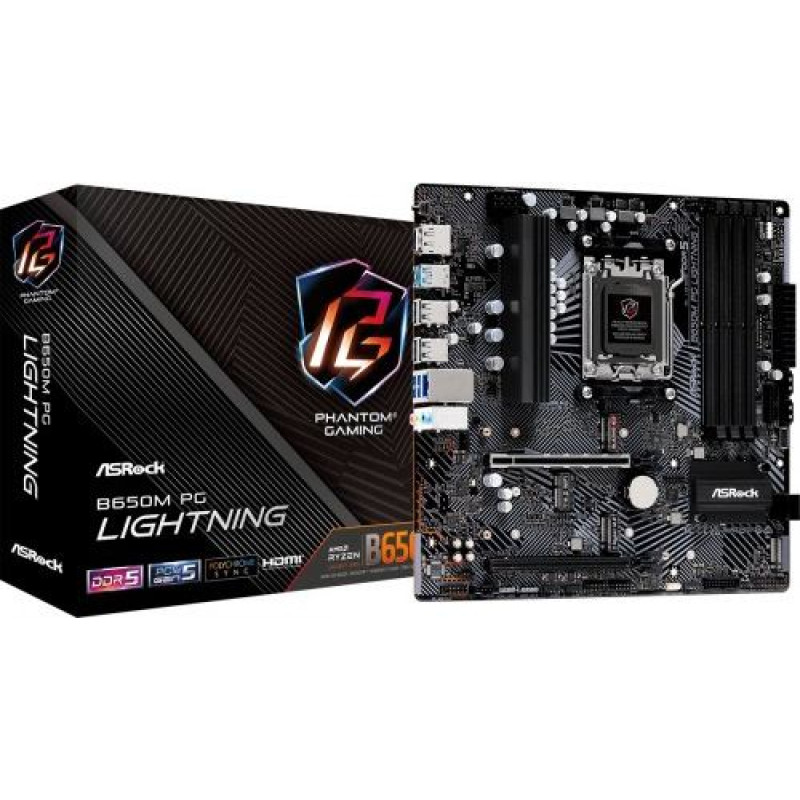

Asrock B650M PG LIGHTNING AM5 4DDR5 HDMI/DP mATX

Asrock B650M PG LIGHTNING AM5 4DDR5 HDMI/DP mATX

Delivery to the store takes 3 - 7 business days.
ID: 159612
Product Code: B650M PG LIGHTNING
Barcode 4710483943829
108.58€
(Ex Tax: 87.56€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASRAA8B650U06
svītrkods: 4710483943829
Description
SKUKBASRAA8B650U06
Barcode4710483943829
ModelB650M PG Lightning
CPU socketSocket AM5
Processor familyAMD Ryzen 7
Processor familyAMD Ryzen 9
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B650
Memory typeDDR5
Number of DDR5 slots4
Max memory size256
Expansion slots1 x M.2
Expansion slots1 x PCIe 3.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 × Blazing M.2 slot (M2_1, M key), supports 2260/2280 PCIe Gen5x4 mode (128 Gb/s) Chipset: 1 × Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64 Gb/s) 1 × M.2 slot (M2_3, M key), supports 2260/2280 PCIe Gen4x2 mode (32 Gb/s) 4 × SATA3 6.0 Gb/s connectors
GraphicsIntegrated AMD RDNA Graphics (Support may vary depending on the CPU) 1 × HDMI 2.1 TMDS/FRL, compatible with 8G, supports HDR, HDCP 2.3, and maximum resolution up to 4K 120Hz 1 × DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3, and maximum resolution up to 4K 120Hz
Sound card7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface2 x 10/100/1000/2500 Mbit/s
Network interface2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Intelligent automatic bandwidth control Visual, user-friendly interface Visual network usage statistics Optimized default settings for gaming, browsing, and streaming modes User-customizable priority control
USB ports at back panel8
USB ports on motherboard8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors2 x USB 3.0
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors2 x SMA
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB BIOS Flashback button
Onboard connectors1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x Thunderbolt header
Onboard connectors1 x TPM header
Onboard connectors3 x Addressable LED
Onboard connectors1 x Front panel audio header
Onboard connectors1 x 4pin CPU fan
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form factormicro ATX
Dimensions24.4  x 24.4 cm
Accessories included1 × User Manual 1 × I/O Shield 2 × SATA Data Cables 4 × Screws for M.2 Slots
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareSoftware ASRock Motherboard Utility (Funkcja Phantom Gaming Tuning) ASRock Sieć Phantom Gaming LAN Software ASRock Polychrome SYNC UEFI ASRock Full HD UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash
DesignationCE+WEEE
