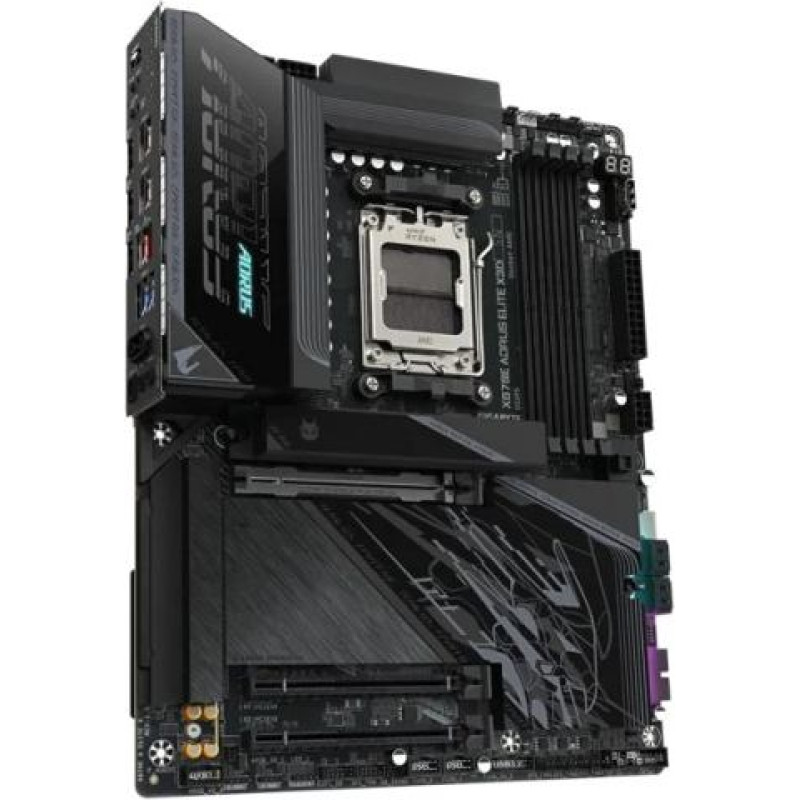

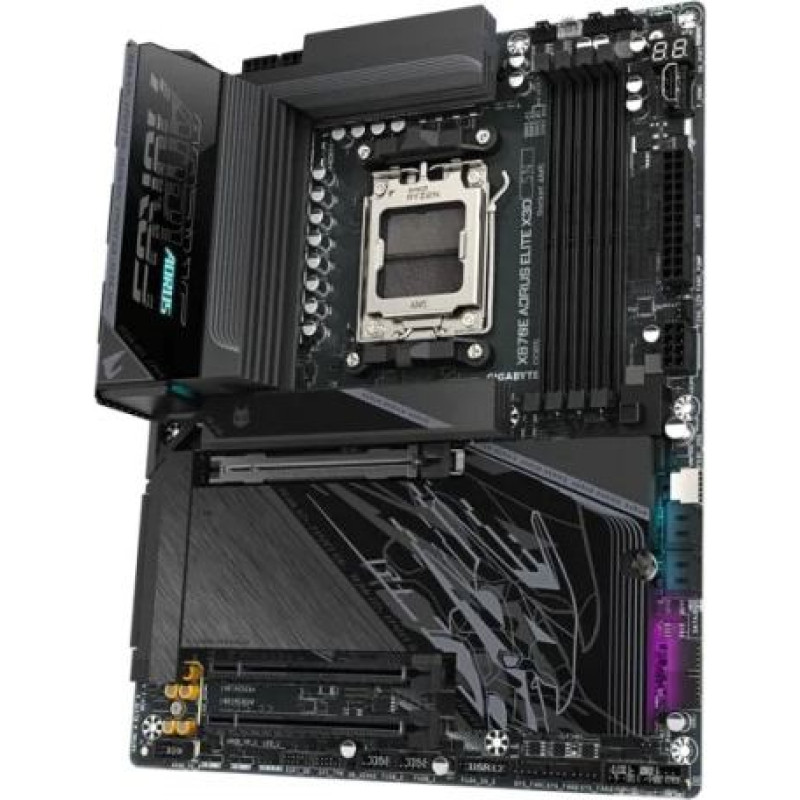

Gigabyte X870E AORUS ELITE X3D AM5 4DDR5 HDMI/USB-C AT

GIGABYTE

Gigabyte X870E AORUS ELITE X3D AM5 4DDR5 HDMI/USB-C AT

Delivery to the store takes 3 - 7 business days.
ID: 160701
Product Code: X870E A ELITE X
Barcode 4719331876470
343.48€
(Ex Tax: 277.00€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAAA8X870A08
svītrkods: 4719331876470
Description
SKUKBGBAAA8X870A08
Barcode4719331876470
ModelX870E Aorus Elite
CPU socketSocket AM5
Processor familyAMD Ryzen
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD X870E
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency4800 MHz
Memory bus frequency8600 MHz
Memory bus frequency6800 MHz
Memory bus frequency8800 MHz
Memory bus frequency5600 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency5200 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency7600 MHz
Memory bus frequency7800 MHz
Memory bus frequency8000 MHz
Memory bus frequency8200 MHz
Memory bus frequency8400 MHz
Max memory size256
Expansion slots2 x M.2
Expansion slots1 x PCIe 3.0 x 2
Expansion slots1 x PCIe 4.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Max. number of SATA devices4
RAIDNo
RAIDYes
Detailed data on disk/drive interfaces1 × M.2 slot (M2A_CPU): Integrated with the processor, supports Socket 3, M-key, types 25110/22110/2580/2280 1 × M.2 slot (M2B_CPU): Integrated with the processor, supports Socket 3 SSDs, M-key, types 22110/2280 AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs 2 × M.2 slots (M2C_SB, M2D_SB): Integrated with the chipset, support PCIe 4.0 x4/x2 SSDs, Socket 3, M-key, types 22110/2280
GraphicsIntegrated Graphics Processor AMD Radeon Graphics Support 1 × HDMI port: Supports a maximum resolution of 4096 × 2160 at 60 Hz Supports HDMI 2.1, HDCP 2.3, and HDR Supports native HDMI 2.1 TMDS-compliant ports 1 × Front HDMI port: Supports a maximum resolution of 1920 × 1080 at 30 Hz
Sound cardRealtek ALC1220 codec High Definition Audio support Audio channels: 2/4/5.1/7.1 S/PDIF Out support
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceRealtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel11
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports5
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors2 x USB4 Type-C
External connectors1 x S/PDIF
External connectors1 x USB 3.1 Type-C
External connectors1 x RJ-45
External connectors2 x SMA
External connectors3 x USB 3.0
External connectors5 x USB 3.2 Gen 2 Type-A
External connectors1 x HDMI
External connectors1 x Line Out (front)
External connectors1 x MIC
External connectors1 x Q-Flash Plus button
Onboard connectors1 x HDMI
Onboard connectors2 x temperature sensor
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Noise detection header
Onboard connectors3 x Addressable LED
Onboard connectors1 x System panel header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors2 x USB 3.0 header
Onboard connectors1 x USB C
Onboard connectors1 x 4pin CPU fan
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors4 x M.2
Onboard connectors1 x Front panel audio header
BIOS1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
SoftwareNorton Internet Security (OEM version)
DesignationCE+WEEE
