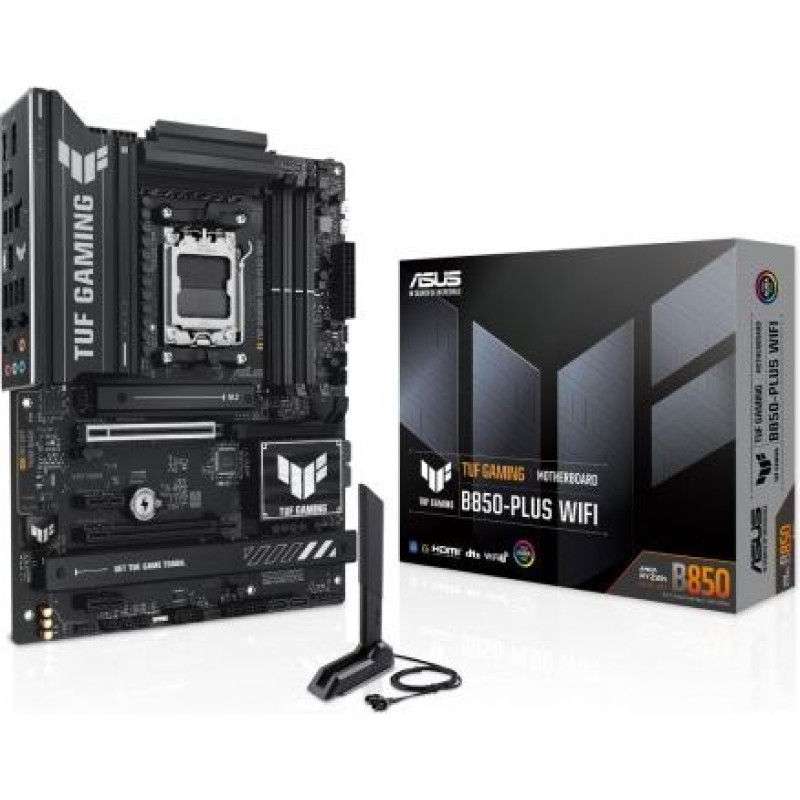

Asus TUF GAMING B850 PLUS WI FI AM5 4DDR5 DP/HDMI AT

Asus TUF GAMING B850 PLUS WI FI AM5 4DDR5 DP/HDMI AT

Delivery to the store takes 3 - 7 business days.
ID: 161257
Product Code: TUF GAMING B850-PLUS WIFI
Barcode 4711387781609
266.56€
(Ex Tax: 214.97€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBASUAA8B850A05
svītrkods: 4711387781609
Description
SKUKBASUAA8B850A05
Barcode4711387781609
CPU socketSocket AM5
Processor familyAMD Ryzen 5
Processor familyAMD Ryzen 9
Processor familyAMD Ryzen 7
Integrated CPUNo
Chipset manufacturerAMD
Chipset typeAMD B850 Chipset
Memory typeDDR5
Number of DDR5 slots4
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots1 x PCIe 4.0 x 16
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesSupports a total of three M.2 slots and four SATA 6 Gb/s ports.AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 (M-Key) Socket, Type 2280 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) 4.0 x4/x2) AMD B850 Chipset M.2_3 (M Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports
Graphics1 x DisplayPort port** 1 x HDMI port*** ** Supports up to 8K at 30 Hz as per DisplayPort 1.4 specification. *** Supports 4K at 60 Hz as per HDMI 2.1 specification.
Sound cardRealtek ALC1220P 7.1 high-resolution audio codec Impedance detection for front and rear headphone outputs Internal audio amplifier for superior sound quality on headphones and speakers Supports: headphone jack detection, multi-streaming, and front-panel jack remapping High-quality stereo playback output with 120 dB SNR and recording input with 113 dB SNR (line-in) Supports playback up to 32-bit/192 kHz Audio Features Audio Shielding High-quality audio capacitors Dedicated audio PCB layers Audio Cover Unique De-Pop Circuit
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
Network interfaceBluetooth
Network interfaceWi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands Supports Wi-Fi 7 160 MHz bandwidth, transfer speeds up to 2.9 Gbps Bluetooth v5.4
USB ports at back panel10
USB ports on motherboard6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo
External connectors1 x Central Speaker / Subwoofer
External connectors1 x Rear Speaker
External connectors1 x USB 3.2 Gen 2 Type-C
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors2 x USB 2.0
External connectors4 x USB 3.0
External connectors3 x USB 3.1
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors2 x SMA
External connectors1 x USB BIOS Flashback button
Onboard connectors1 x Chassis intrusion header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Front panel audio header
Onboard connectors1 x Thunderbolt header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x 4pin CPU fan
Onboard connectors1 x 4pin wentylator OPT CPU
Onboard connectors2 x 8pin 12V
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors3 x M.2
Form factorATX
Accessories includedCables 2 x SATA 6 Gb/s cables Other 1 x ASUS WiFi Q antenna 1 x TUF GAMING sticker 2 x M.2 rubber packs Documentation 1 x Quick Start Guide
Supported operating systemsWindows 11
SoftwareASUS Exclusive SoftwareArmory Crate  Aura Creator  Aura Sync  Fan Xpert 4  Power Saving ASUS DriverHubASUS GlideXTurboV CoreTUF GAMING CPU-ZDTS Audio ProcessingNorton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY  ASUS CrashFree BIOS 3  ASUS EZ Flash 3  ASUS UEFI BIOS EZ Mode  ASUS MyHotkey
DesignationCE+WEEE
