Home Computers and equipment Computer components Motherboard Gigabyte Motherboard B760M GAMING X WIFI6E G EN5 S1700 4DDR5 mATX

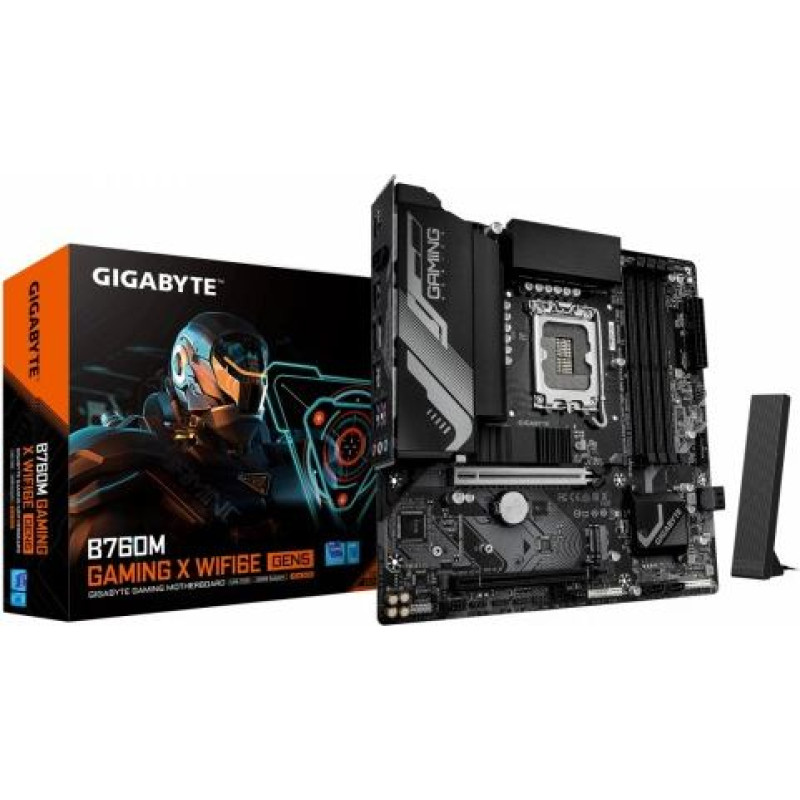

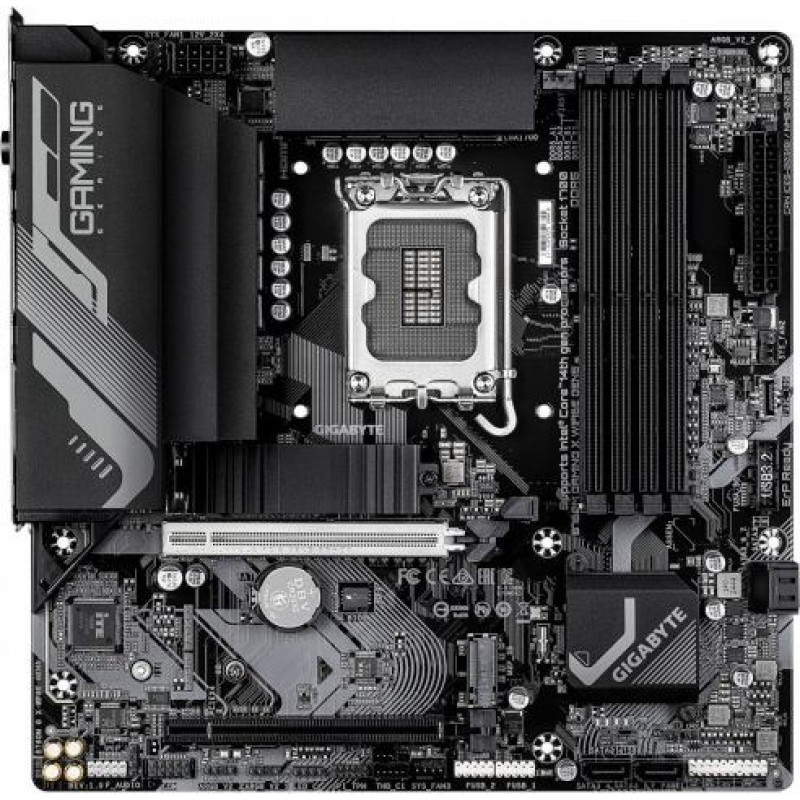

Gigabyte Motherboard B760M GAMING X WIFI6E G EN5 S1700 4DDR5 mATX

GIGABYTE

Gigabyte Motherboard B760M GAMING X WIFI6E G EN5 S1700 4DDR5 mATX

Delivery to the store takes 3 - 7 business days.
ID: 161322
Product Code: B760M G X WF6E GEN5
Barcode 4719331872953
149.16€
(Ex Tax: 120.29€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIEB760U17
svītrkods: 4719331872953
Description
SKUKBGBAIIEB760U17
Barcode4719331872953
ModelB760M G X WF6E GEN5
CPU socketLGA1700
Processor familyIntel Pentium Gold
Processor familyIntel Celeron
Processor familyIntel Core
GenerationTwelve
GenerationThirteenth
GenerationFourteenth
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency4800 MHz
Memory bus frequency4000 MHz
Memory bus frequency7000 MHz
Memory bus frequency7200 MHz
Memory bus frequency6800 MHz
Memory bus frequency6600 MHz
Memory bus frequency6400 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency6200 MHz
Memory bus frequency5600 MHz
Memory bus frequency5400 MHz
Memory bus frequency5200 MHz
Memory bus frequency7400 MHz
Memory bus frequency7600 MHz
Max memory size256
Expansion slots1 x PCIe 3.0 x 4
Expansion slots1 x PCIe 5.0 x 16
Expansion slots2 x M.2
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
GraphicsIntegrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Sound cardRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Network interfaceWi-Fi 802.11a/b/g/n/ac/ax
Network interfaceBluetooth
Network interface1 x 10/100/1000/2500 Mbit/s
Network interfaceLAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)   Wireless Communication module Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
USB ports at back panel8
USB ports on motherboard7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports1
FireWire (IEEE 1394)No
COM connector / portNo
LPT connector / portNo

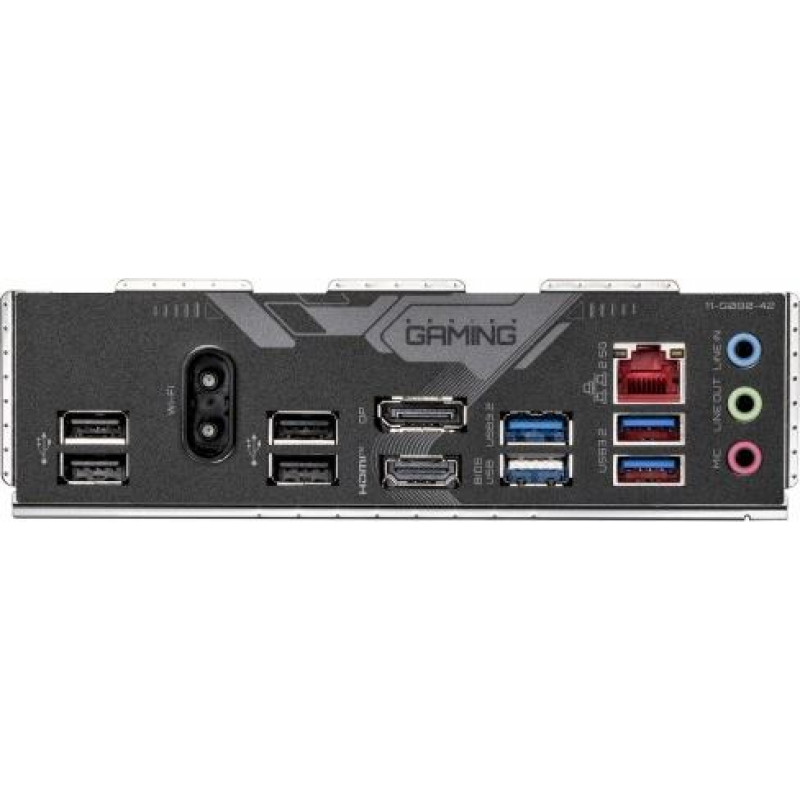

External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors5 x USB 2.0
External connectors3 x USB 3.2 Gen 1 Type-A
External connectors2 x SMA
Onboard connectors3 x Addressable LED
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset jumper
Onboard connectors1 x Q-Flash Plus button
Onboard connectors2 x M.2
Onboard connectors1 x 4pin CPU fan
Onboard connectors3 x 4pin Chassis fan
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors1 x RGB LED strip header
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.2 Gen 1 Type-A
Onboard connectors1 x USB 3.2 Gen 2 Type-C
Onboard connectors2 x Thunderbolt
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factormicro ATX
Dimensions24.4 x 24.4 cm
Supported operating systemsWindows 11
Supported operating systemsWindows 10
SoftwareNorton Internet Security (OEM version) LAN Bandwidth Management Software
DesignationCE+WEEE
