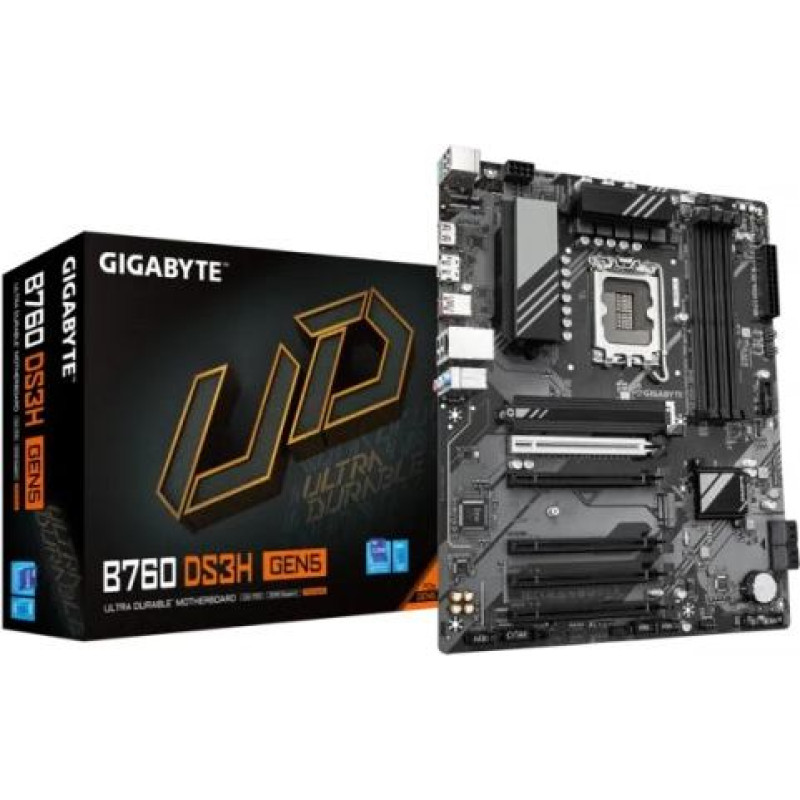

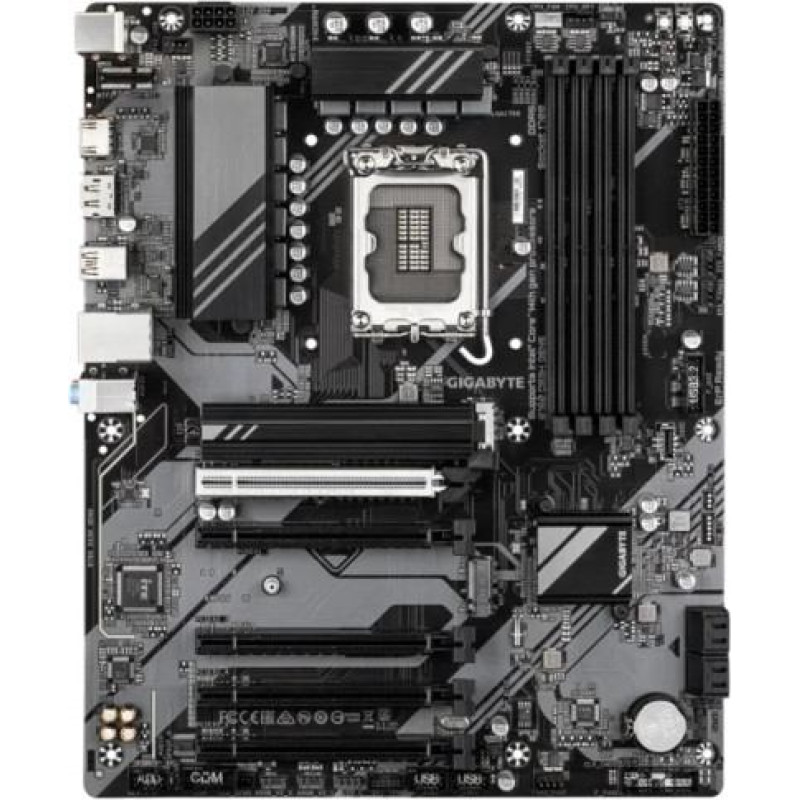

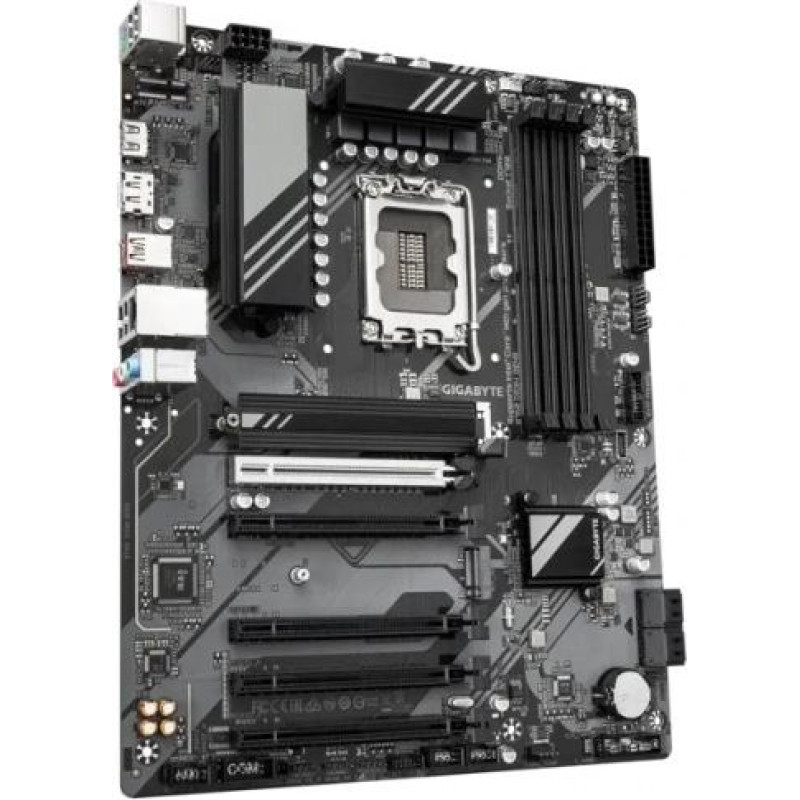

Gigabyte Motherboard B760 DS3H GEN5 s1700 4DDR5 HDMI/DP ATX

GIGABYTE

Gigabyte Motherboard B760 DS3H GEN5 s1700 4DDR5 HDMI/DP ATX

Delivery to the store takes 3 - 7 business days.
ID: 161328
Product Code: B760 DS3H GEN5
Barcode 4719331872892
122.14€
(Ex Tax: 98.50€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
artikuls: KBGBAIIEB760A13
svītrkods: 4719331872892
Description
SKUKBGBAIIEB760A13
Barcode4719331872892
ModelB760 DS3H GEN5
CPU socketLGA1700
Processor familyIntel Core
Processor familyIntel Pentium
Processor familyIntel Celeron
Integrated CPUNo
Chipset manufacturerIntel
Chipset typeIntel B760 Express Chipset
Memory typeDDR5
Number of DDR5 slots4
Memory bus frequency7000 MHz
Memory bus frequency6800 MHz
Memory bus frequency6200 MHz
Memory bus frequency6400 MHz
Memory bus frequency6600 MHz
Memory bus frequency7200 MHz
Memory bus frequency5800 MHz
Memory bus frequency6000 MHz
Memory bus frequency5400 MHz
Memory bus frequency5200 MHz
Memory bus frequency4800 MHz
Memory bus frequency133 MHz
Memory bus frequency4000 MHz
Memory bus frequency7600 MHz
Memory bus frequency7400 MHz
Memory bus frequency5600 MHz
Max memory size256
Expansion slots1 x PCIe 5.0 x 16
Expansion slots4 x PCIe 3.0 x 1
Max. number of SATA devices4
RAIDYes
Detailed data on disk/drive interfacesCPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
GraphicsIntegrated Graphics Processor-Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3.Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Sound cardRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Network interface1 x 10/100/1000 Mbit/s
Network interfaceRealtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB ports at back panel6
USB ports on motherboard3
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports2
FireWire (IEEE 1394)No
COM connector / portYes
LPT connector / portNo
External connectors1 x PS/2 Keyboard/MouseCombo
External connectors1 x DisplayPort
External connectors1 x HDMI
External connectors1 x Line In
External connectors1 x Line Out
External connectors1 x MIC
External connectors1 x RJ-45
External connectors4 x USB 2.0
External connectors1 x USB 3.2 Gen 2 Type-A
External connectors1 x USB 3.0 Type-C
Onboard connectors1 x Q-Flash Plus button
Onboard connectors1 x 8pin 12V power
Onboard connectors1 x 24pin ATX zasilanie
Onboard connectors2 x M.2
Onboard connectors4 x SATA III 6Gb/s
Onboard connectors2 x USB 2.0/1.1 header
Onboard connectors1 x USB 3.0 header
Onboard connectors1 x USB 3.2 Gen 1 Type-C
Onboard connectors1 x Serial port header
Onboard connectors1 x TPM header
Onboard connectors1 x System panel header
Onboard connectors1 x Front panel audio header
Onboard connectors1 x S/PDIF Out header
Onboard connectors1 x 4pin CPU fan
Onboard connectors3 x Addressable LED
Onboard connectors1 x Clear CMOS jumper
Onboard connectors1 x Reset button
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factorATX
Dimensions30.5 x 24.4 cm
Supported operating systemsWindows 10
Supported operating systemsWindows 11
SoftwareNorton Internet Security (OEM) LAN bandwidth management software
DesignationCE+WEEE
