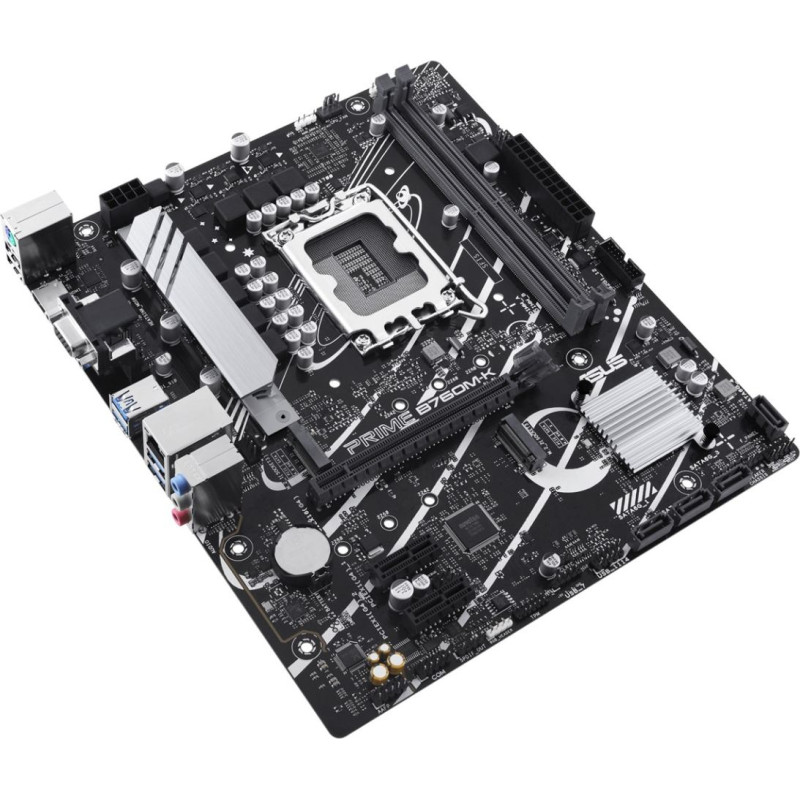

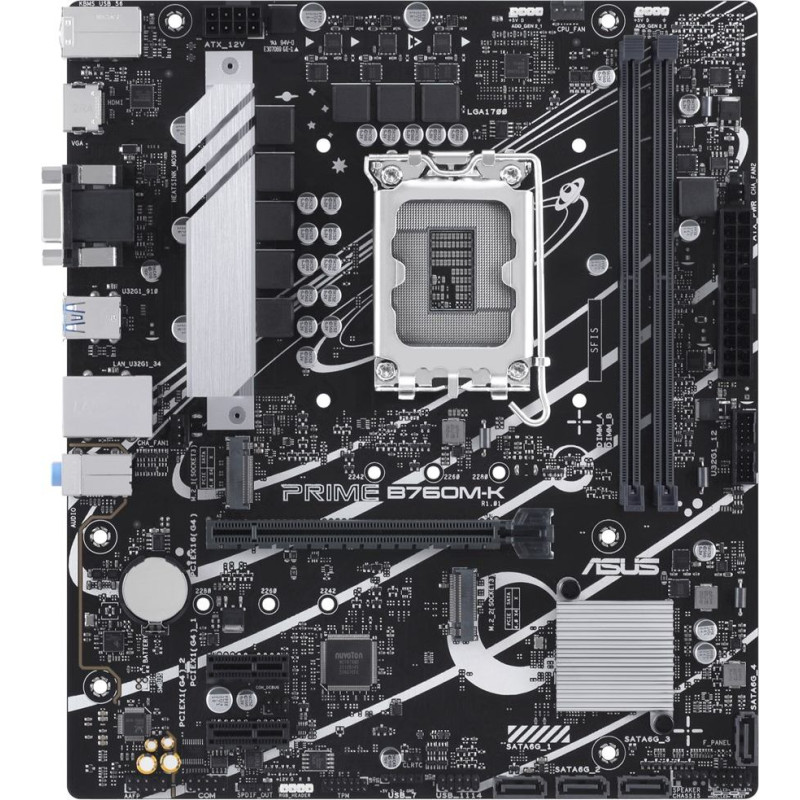

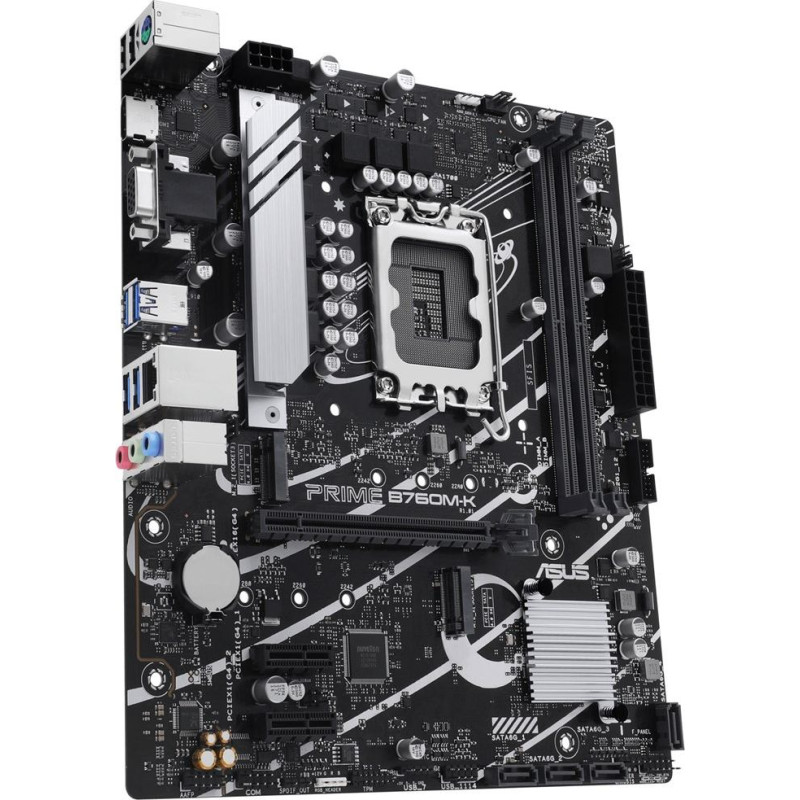

Asus PRIME B760M-K Intel B760 LGA 1700 micro ATX

Asus PRIME B760M-K Intel B760 LGA 1700 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 163084
Product Code: 90MB1FI0-M1EAY0
Barcode 4711387198506
96.14€
(Ex Tax: 77.53€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i7
Processor manufacturerIntel
Maximum number of SMP processors1
Supported processor socketsLGA 1700
Parallel processing technology supportNot supported
Motherboard chipsetIntel B760
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Audio output channels7.1 channels
Motherboard chipset familyIntel
Supported memory clock speeds7000
Maximum internal memory96 GB
Unbuffered memoryYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Supported memory clock speed (max)8000 MHz
Depth211 mm
Width244 mm
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
Front panel audio connectorYes
S/PDIF out connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
Number of chassis fan connectors1
EPS power connector (8-pin)Yes
Number of COM connectors1
CPU fan connectorYes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
BIOS typeUEFI AMI
Cables includedSATA
RAID levels1
Number of storage drives supported6
RAID supportYes
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Supported storage drive interfacesM.2, SATA III

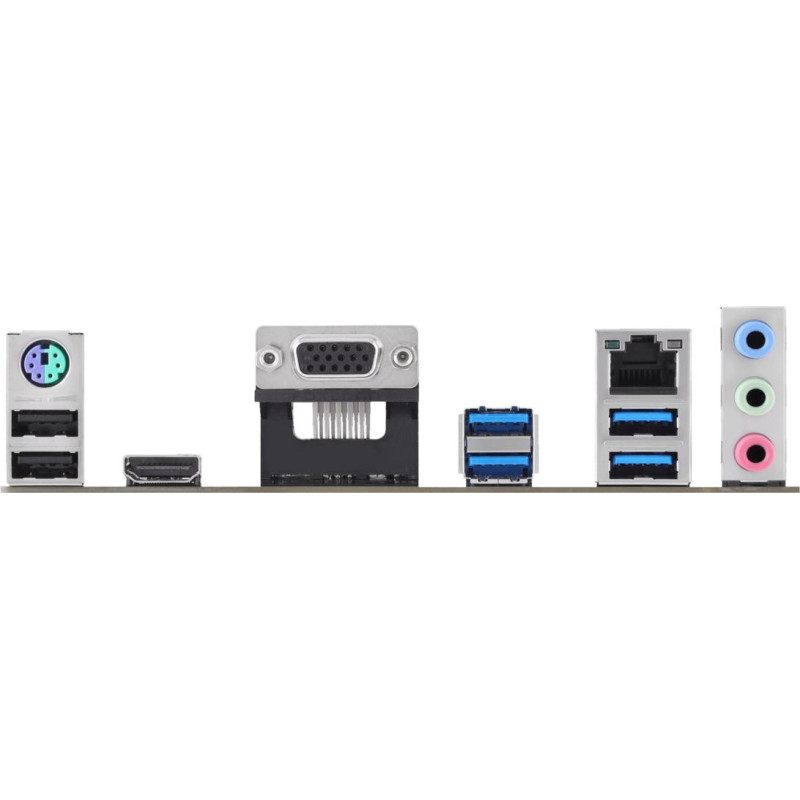

USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
S/PDIF out portYes
PS/2 ports quantity1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
VGA (D-Sub) ports quantity1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
PCI Express x1 (Gen 4.x) slots2
