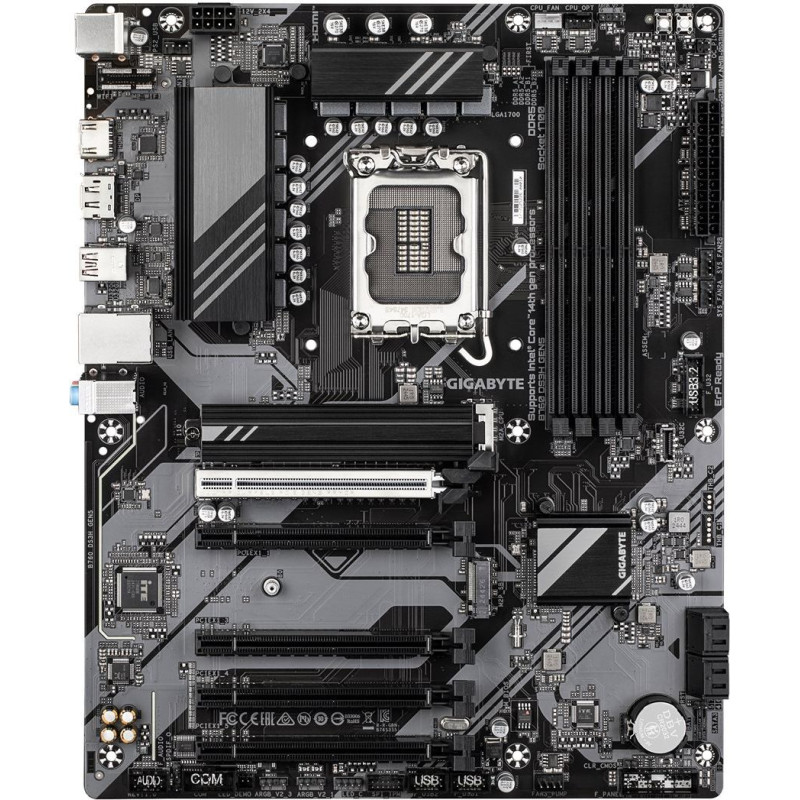

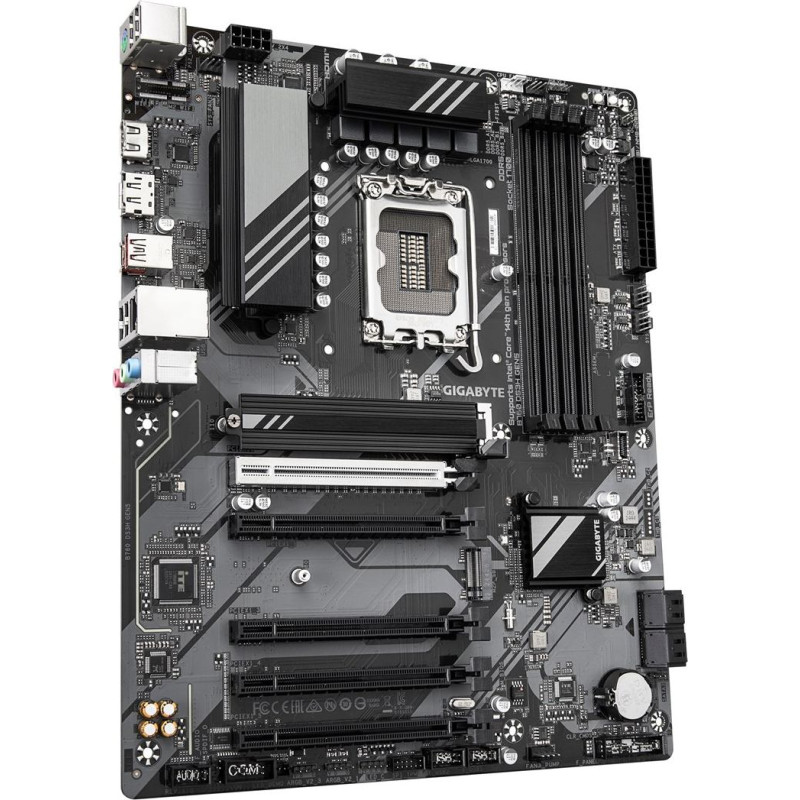

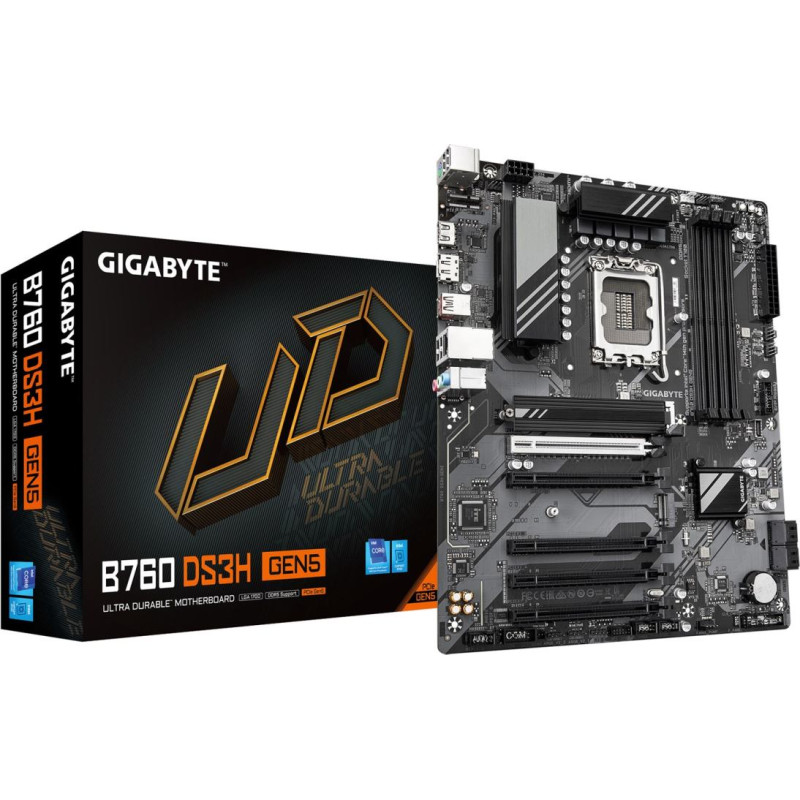

Gigabyte B760 DS3H GEN5 - 1700 ATX motherboard

GIGABYTE

Gigabyte B760 DS3H GEN5 - 1700 ATX motherboard

Delivery to the store takes 3 - 7 business days.
ID: 163086
Product Code: B760 DS3H GEN5
Barcode 4719331872892
100.98€
(Ex Tax: 81.44€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Compatible processor seriesIntel Core i3 12th Gen
Supported processor socketsLGA 1700
Processor socketLGA 1700
Processor manufacturerIntel
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0
Parallel processing technology supportNot supported
PC health monitoringTemperature
Audio output channels7.1 channels
Motherboard form factorATX
Audio chipRealtek ALC897
Product colourDark brown
Power source typeATX
Motherboard chipsetIntel B760 Express
Motherboard chipset familyIntel
Windows operating systems supportedWindows 11 x64
Cooling typePassive
Unbuffered memoryYes
Supported memory clock speeds5200
Maximum internal memory256 GB
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
Number of memory slots4
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot64 GB
Supported memory clock speed (max)5600 MHz
Width305 mm
Depth244 mm
Height35 mm
LAN controllerRealtek RTL8111H
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
S/PDIF out connectorYes
Number of SATA III connectors4
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
Serial port headers1
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
TPM connectorYes
CPU fan connectorYes
Front panel connectorYes
RGB LED pin headerYes
Number of chassis fan connectors4
12V power connectorYes
Number of RGB LED pin headers4
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)1
Number of water pump connectors2
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Package weight1.5 kg
Package depth270 mm
Package width335 mm
Package height80 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Screws includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID supportYes
RAID levels5
Number of HDDs supported4
Number of storage drives supported6

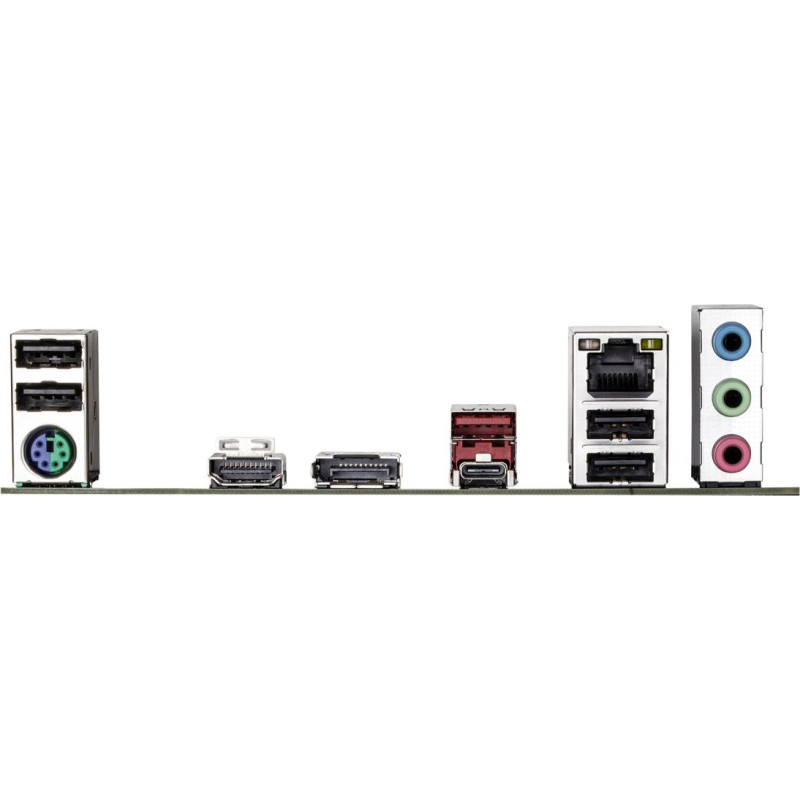

DisplayPorts quantity1
DisplayPort version1.2
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs1
HDMI ports quantity1
HDMI version2.1
Line-inYes
PS/2 ports quantity1
Microphone inYes
USB 3.2 Gen 2x2 Type-C ports quantity1
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots2
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
2nd M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
Battery typeCR2032
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Number of battery cells1
Battery weight3 g
Lithium weight per battery0.07 g
Weight1.32 kg
Country of originChina
Products per shipping (inner) case1 pc(s)
