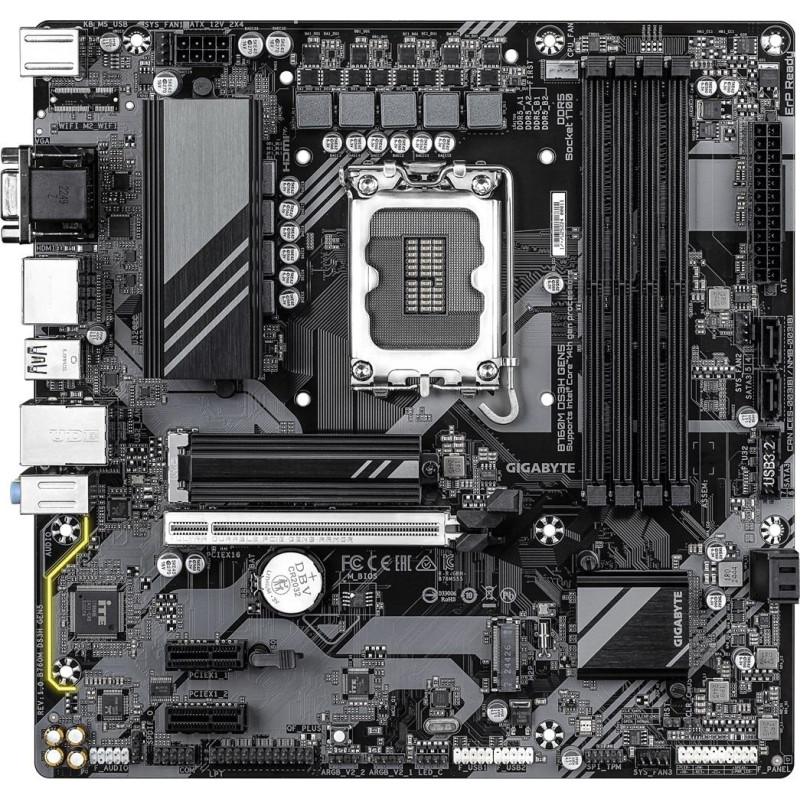

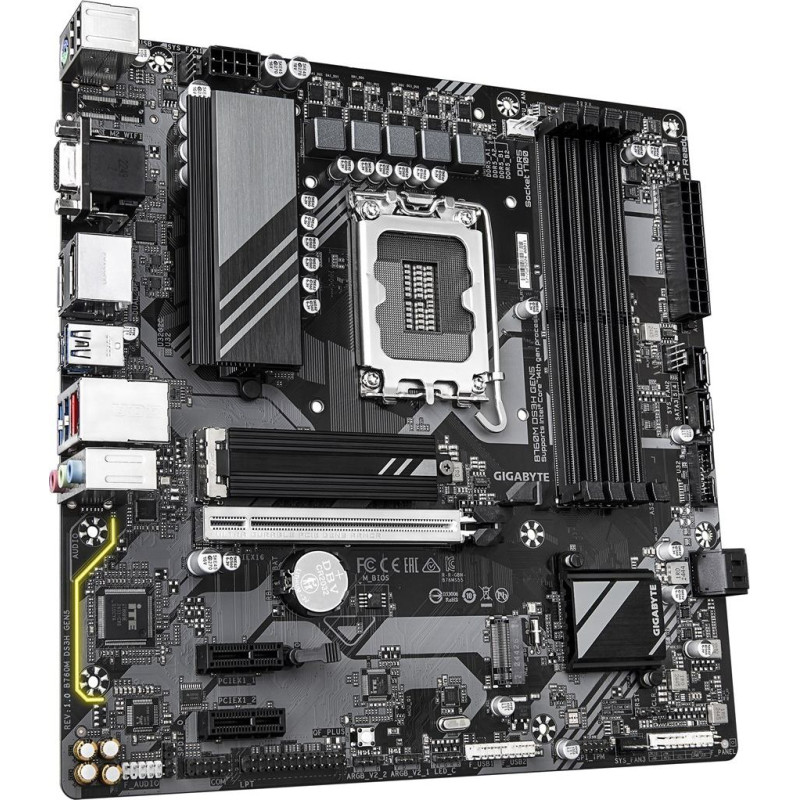

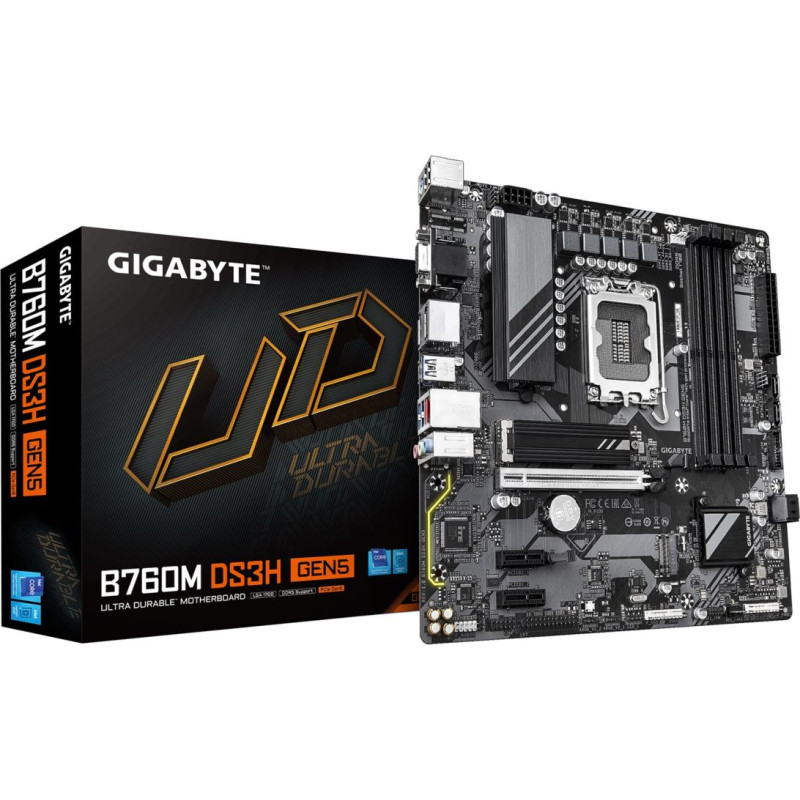

Gigabyte B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2

GIGABYTE

Gigabyte B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2

Delivery to the store takes 3 - 7 business days.
ID: 163089
Product Code: B760M DS3H GEN5
Barcode 4719331872793
97.23€
(Ex Tax: 78.41€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1700
Processor socketLGA 1700
Compatible processor seriesIntel® Pentium® Gold
Processor manufacturerIntel
HDCPYes
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
Power source typeATX
Audio output channels7.1 channels
PC health monitoringFan
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Motherboard chipsetIntel B760 Express
Cooling typePassive
Windows operating systems supportedWindows 10 x64
Supported memory clock speeds5200
Maximum internal memory256 GB
Unbuffered memoryYes
Supported memory typesDDR5-SDRAM
Supported memory clock speed (max)5600 MHz
Maximum internal memory per slot64 GB
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Memory channelsDual-channel
Number of memory slots4
Depth174 mm
Width244 mm
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
CPU fan connectorYes
Serial port headers1
Number of SATA III connectors4
Parallel connectorYes
USB 2.0 connectors2
Number of chassis fan connectors3
S/PDIF out connectorYes
Front panel audio connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Number of RGB LED pin headers3
Number of EPS power connectors (8-pin)1
Number of CPU fan connectors1
RGB LED pin headerYes
TPM connectorYes
Front panel connectorYes
12V power connectorYes
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Supported storage drive typesHDD & SSD
RAID levels1
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
RAID supportYes
Number of storage drives supported6
Number of HDDs supported4
DisplayPort version1.2

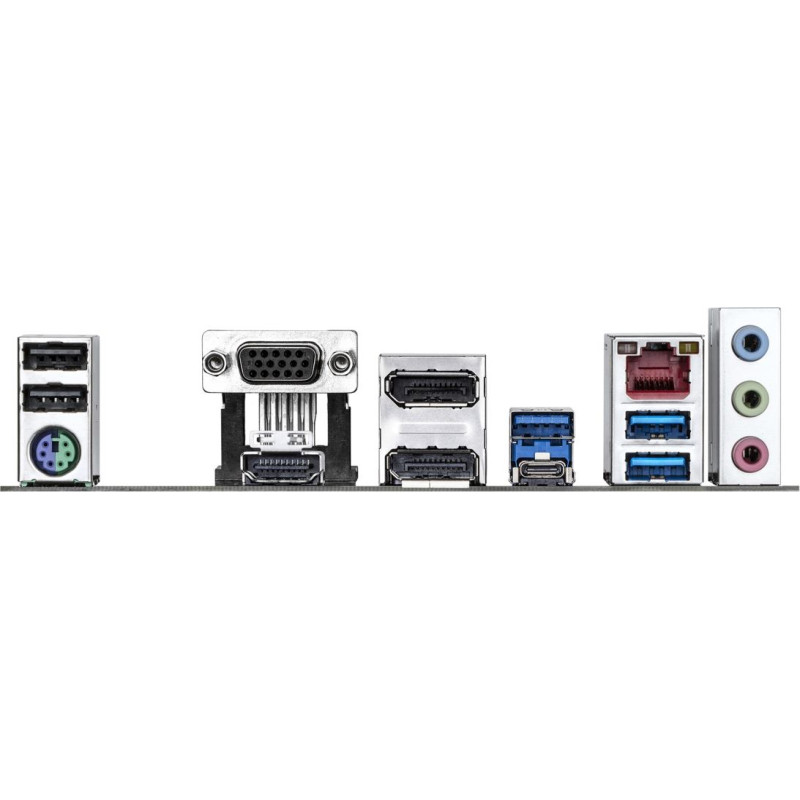

Ethernet LAN (RJ-45) ports1
DisplayPorts quantity2
USB 2.0 ports quantity2
Headphone outputs1
PS/2 ports quantity1
Microphone inYes
HDMI version2.1
Line-inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
VGA (D-Sub) ports quantity1
PCI Express x1 (Gen 3.x) slots2
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
PCI Express x16 (Gen 5.x) slots1
