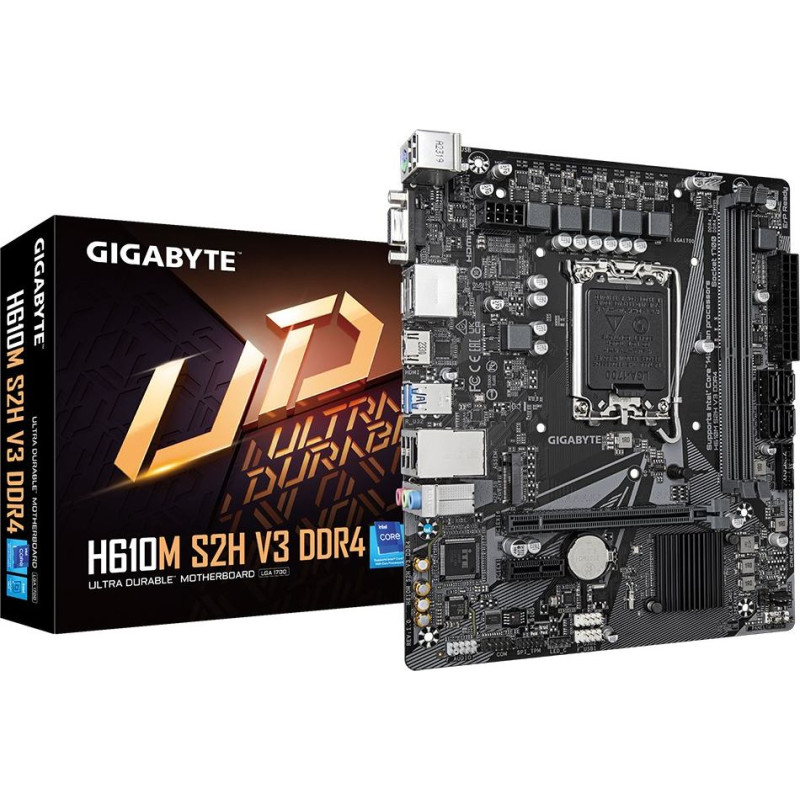

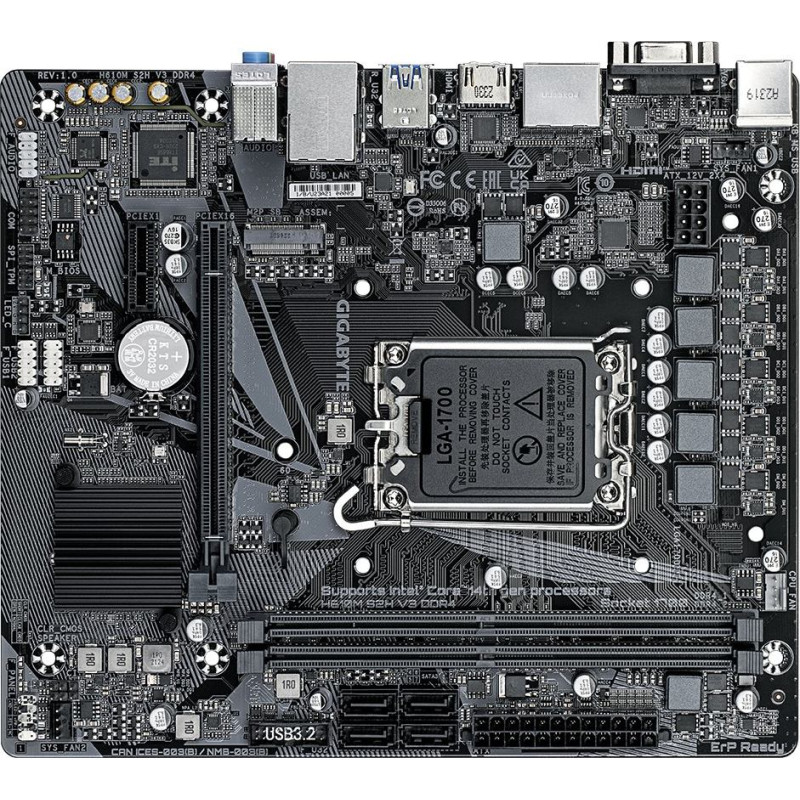

Home Computers and equipment Computer components Motherboard Gigabyte H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1
Gigabyte H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1

GIGABYTE

Gigabyte H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1

Delivery to the store takes 3 - 7 business days.
ID: 163091
Product Code: H610M S2H V3 DDR4
Barcode 4719331859732
66.66€
(Ex Tax: 53.76€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Processor manufacturerIntel
Compatible processor seriesIntel® Core™ i5
Supported processor socketsLGA 1700
Processor socketLGA 1700
Maximum internal memory supported by processor64 GB
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
HDCPYes
Motherboard chipset familyIntel
Product colourBlack
Audio chipRealtek ALC897
Motherboard chipsetIntel H610 Express
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64
Cooling typeActive
Power source typeATX
PC health monitoringWater cooling
Motherboard form factormicro ATX
Supported memory module capacities8GB
Maximum internal memory64 GB
Supported memory clock speeds3200
Number of memory slots2
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Unbuffered memoryYes
Supported memory clock speed (max)3200 MHz
Depth215 mm
Height35 mm
Width230 mm
Ethernet LANYes
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Front panel connectorYes
CPU fan connectorYes
TPM connectorYes
Serial port headers1
ATX Power connector (24-pin)Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
12V power connectorYes
Number of SATA III connectors4
RGB LED pin headerYes
EPS power connector (8-pin)Yes
USB 2.0 connectors2
Front panel audio connectorYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
Clear CMOS jumperYes
BIOS typeUEFI AMI
Package depth235 mm
Package height52 mm
Package width265 mm
Package weight703 g
Bundled softwareNorton Internet Security (OEM version) LAN bandwidth management software
Cables includedSATA
Batteries includedYes
Supported storage drive typesHDD & SSD
Number of HDDs supported1
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported5
Microphone inYes
USB 2.0 ports quantity4
DVI-D ports quantity1
VGA (D-Sub) ports quantity1
PS/2 ports quantity1
DisplayPorts quantity2
Headphone outputs3
USB connector typeUSB Type-A
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
Number of M.2 (M) slots1
PCI Express x1 slots1
PCI Express x16 slots1
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Lithium weight per battery0.07 g
Products per shipping (inner) case1 pc(s)
Country of originChina
