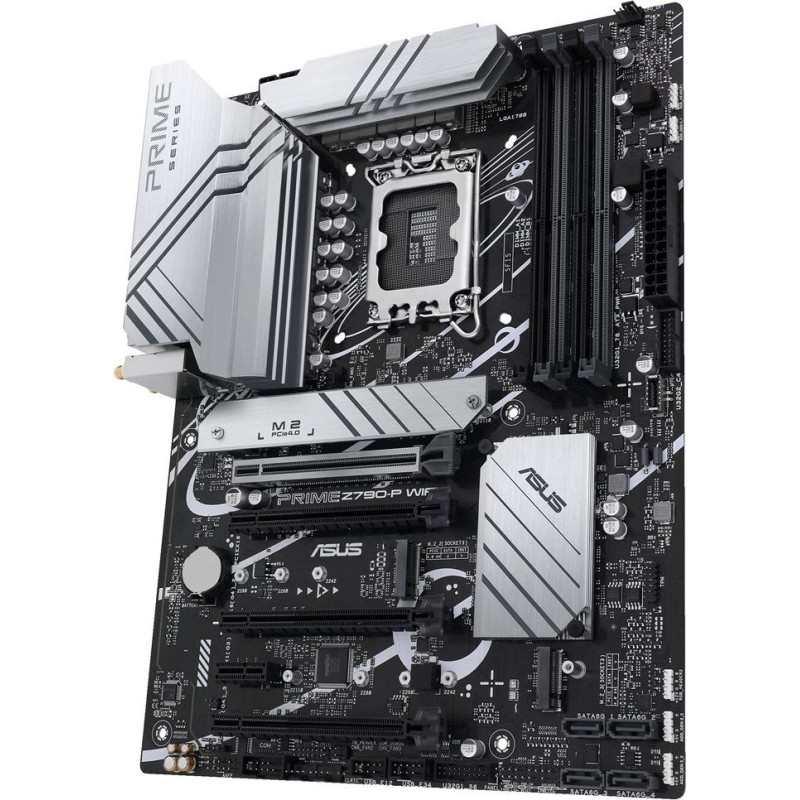

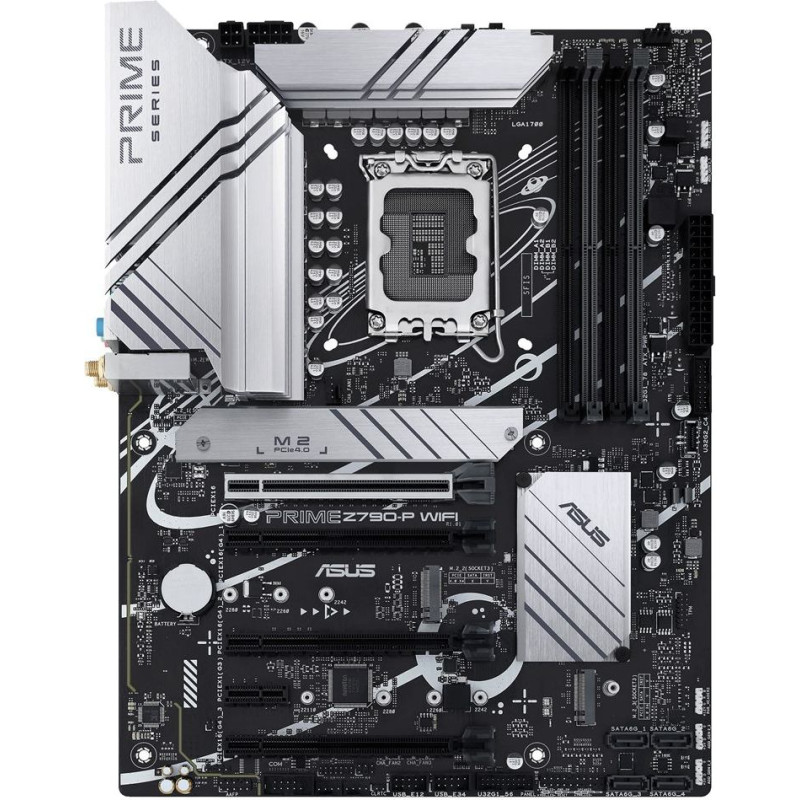

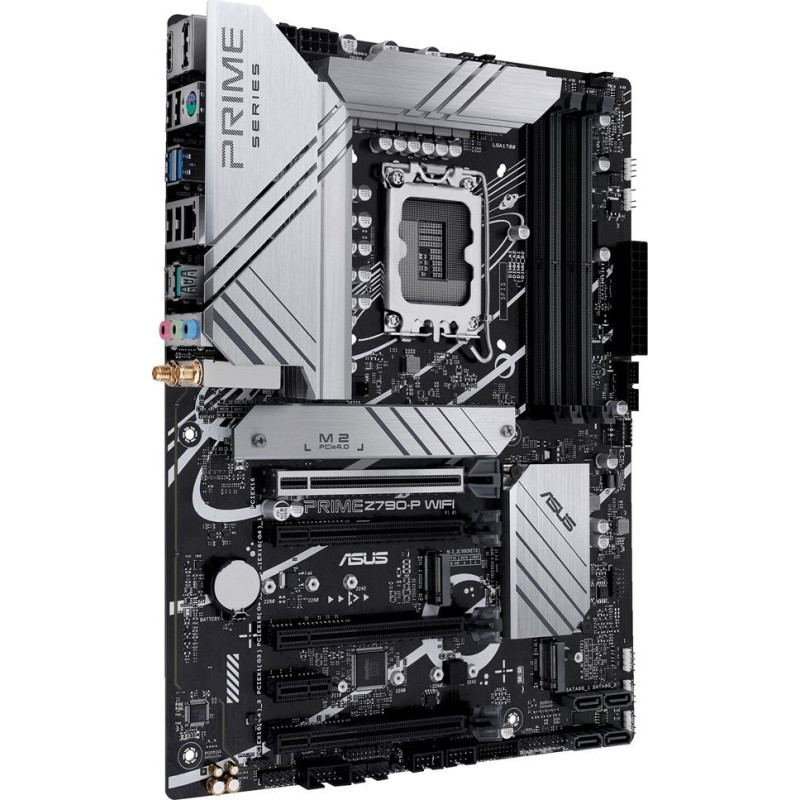

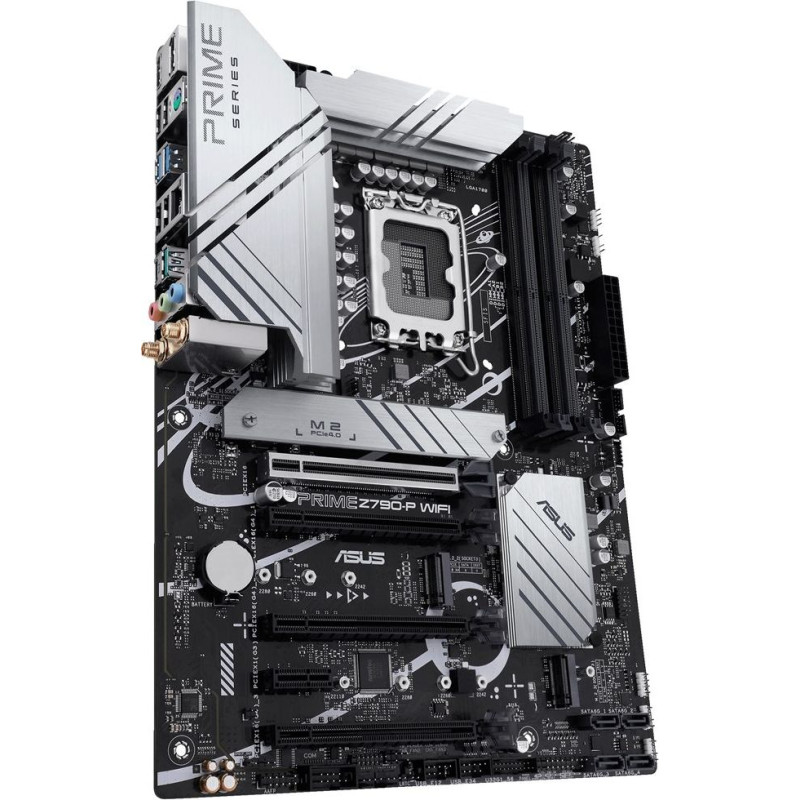

Asus PRIME Z790-P WIFI Intel Z790 LGA 1700 ATX motherboard

Asus PRIME Z790-P WIFI Intel Z790 LGA 1700 ATX motherboard

Delivery to the store takes 3 - 7 business days.
ID: 163096
Product Code: 90MB1CJ0-M1EAY0
Barcode 4711081937227
206.57€
(Ex Tax: 166.59€)
Payment options

Delivery options

omniva  venipak



Description
Description
Compatible processor seriesIntel® Core™ i7
Processor socketLGA 1700
Supported processor socketsLGA 1700
Processor manufacturerIntel
Parallel processing technology supportNot supported
On-board graphics cardNo
Audio output channels7.1 channels
Product colourBlack
Motherboard chipsetIntel Z790
Power source typeATX
Motherboard chipset familyIntel
Motherboard form factorATX
Windows operating systems supportedWindows 11
ECC сompatibilityNon-ECC
Unbuffered memoryYes
Supported memory clock speeds6600
Maximum internal memory128 GB
Supported memory clock speed (max)7200 MHz
Memory channelsDual-channel
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Height40 mm
Width305 mm
Depth234 mm
BluetoothYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-FiYes
Ethernet interface type2.5 Gigabit Ethernet
Bluetooth version5.2
Ethernet LANYes
Wi-Fi standards802.11g
S/PDIF out connectorYes
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel audio connectorYes
Thunderbolt headers1
12V power connectorYes
RGB LED pin headerYes
Number of COM connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
TPM connectorYes
Peripheral (Molex) power connectors (4-pin)1
CPU fan connectorYes
EPS power connector (8-pin)Yes
Number of chassis fan connectors3
Clear CMOS buttonYes
BIOS typeUEFI AMI
Package weight1.68 kg
Package width338 mm
Package depth273 mm
Package height68 mm
Drivers includedYes
Cables includedSATA
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
RAID levels5
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Headphone outputs1
PS/2 ports quantity1
USB 2.0 ports quantity4
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
WiFi-AP antenna jack1
Line-inYes
Microphone inYes
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots3
Number of M.2 (M) slots3
Weight1.03 kg
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
