Home Computers and equipment Computer components Motherboard Gigabyte Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

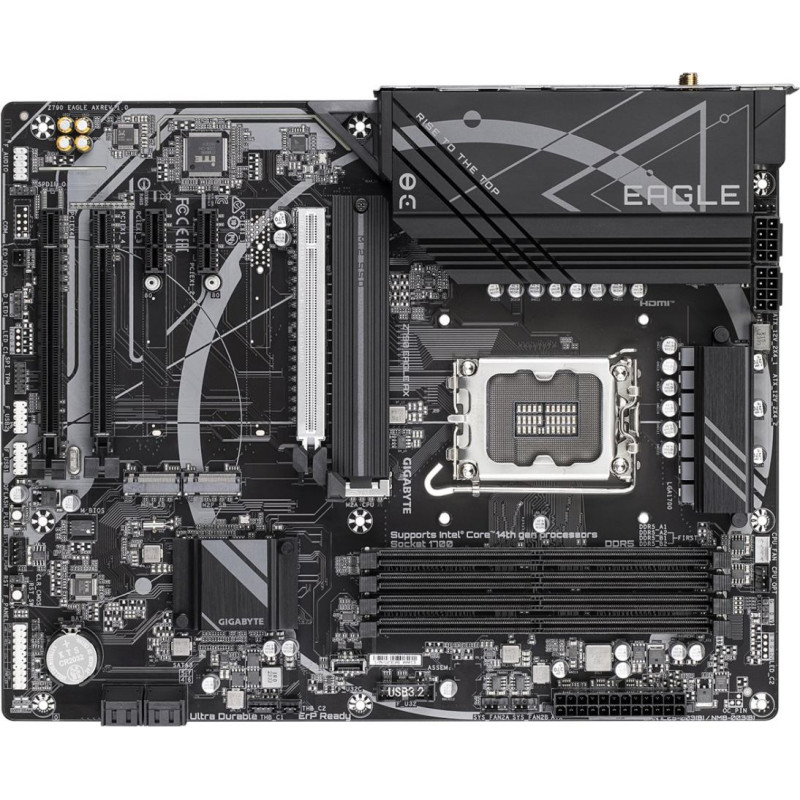

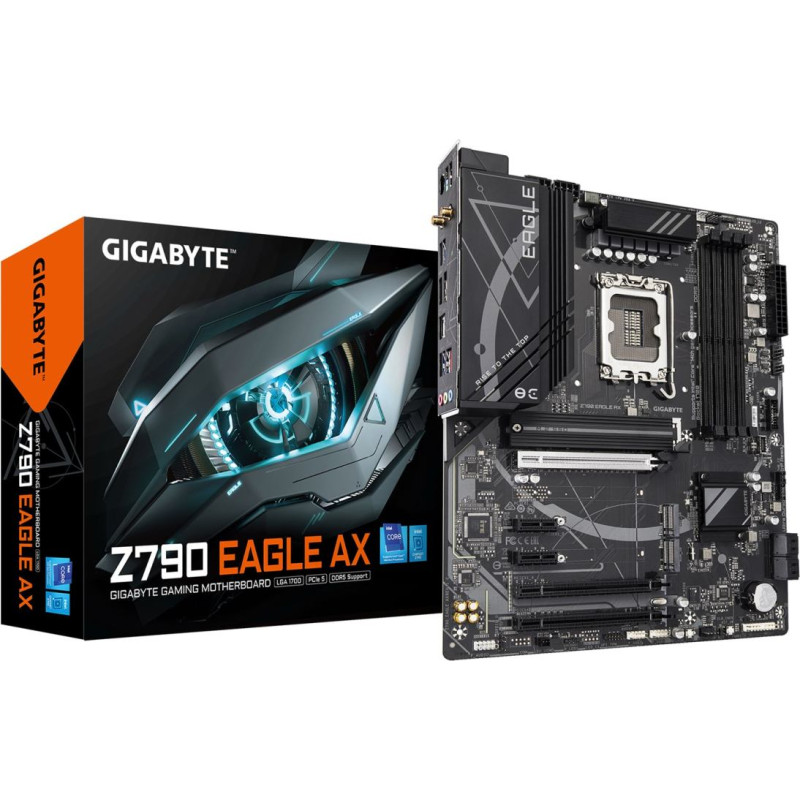

Gigabyte Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

GIGABYTE

Gigabyte Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

Delivery to the store takes 3 - 7 business days.
ID: 163102
Product Code: Z790 EAGLE AX
Barcode 4719331860998
183.37€
(Ex Tax: 147.88€)
Payment options

Delivery options

omniva  venipak



Description
Description
Warranty period3 year(s)
Compatible processor seriesIntel® Core™ i3
Supported processor socketsLGA 1700
Processor manufacturerIntel
Processor socketLGA 1700
Maximum internal memory supported by processor192 GB
Maximum number of SMP processors1
HDCPYes
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
On-board graphics cardNo
Audio output channels7.1 channels
Product colourBronze
Motherboard chipsetIntel Z790 Express
Audio chipRealtek ALC897
Motherboard form factorATX
PC health monitoringFan
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 11 x64
Supported memory module capacities32GB
Supported memory clock speeds7400
Maximum internal memory192 GB
Unbuffered memoryYes
Supported memory clock speed (max)7600 MHz
Memory channelsDual-channel
Number of memory slots4
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
ECC сompatibilityECC & Non-ECC
Width305 mm
Depth244 mm
Height35 mm
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Bluetooth version5.3
Wi-Fi standardsWi-Fi 6E (802.11ax)
ATX Power connector (24-pin)Yes
Front panel audio connectorYes
Number of SATA III connectors4
Thunderbolt headers2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 connectors2
TPM connectorYes
12V power connectorYes
EPS power connector (8-pin)Yes
Total number of SATA connectors4
RGB LED pin headerYes
CPU fan connectorYes
Number of EATX power connectors2
Front panel connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
BIOS typeUEFI AMI
Desktop Management Interface (DMI) version2.7
Clear CMOS buttonYes
Clear CMOS jumperYes
Package weight1.81 kg
Package height80 mm
Package depth270 mm
Package width335 mm
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Cables includedSATA
Batteries includedYes
Antenna includedYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels10
Number of storage drives supported7
Number of HDDs supported4
S/PDIF out portYes
Ethernet LAN (RJ-45) ports1
DisplayPort version1.2
DisplayPorts quantity1
USB 2.0 ports quantity2
USB 3.2 Gen 2x2 Type-C ports quantity1
HDMI version2.1
USB connector typeUSB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
WiFi-AP antenna jack2
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Headphone outputs1
PS/2 ports quantity1
Microphone inYes
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots3
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Number of battery cells1
Battery weight3 g
Lithium weight per battery0.07 g
Country of originChina
Products per shipping (inner) case1 pc(s)
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
