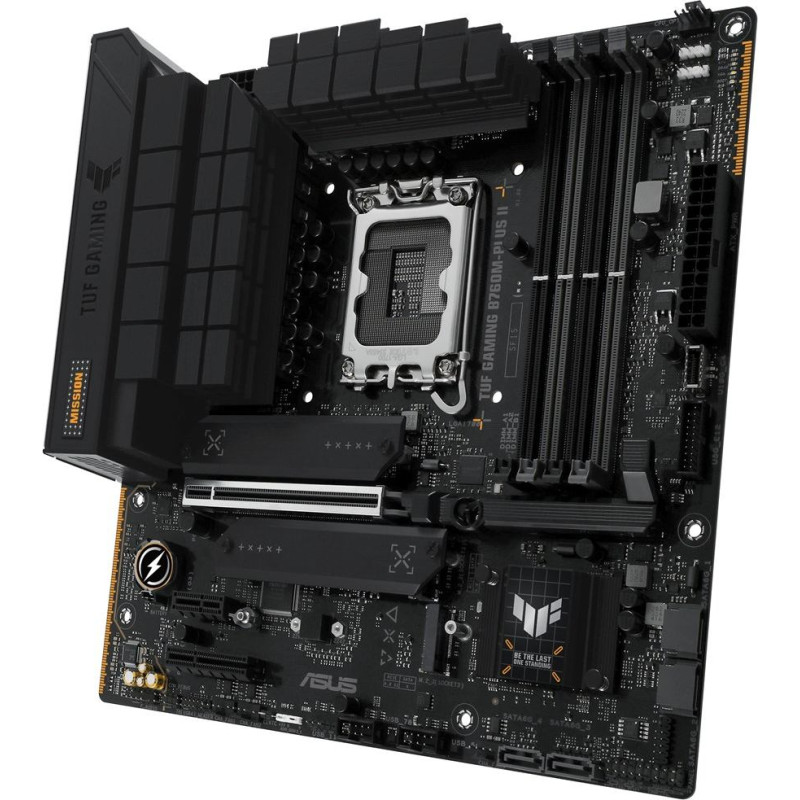

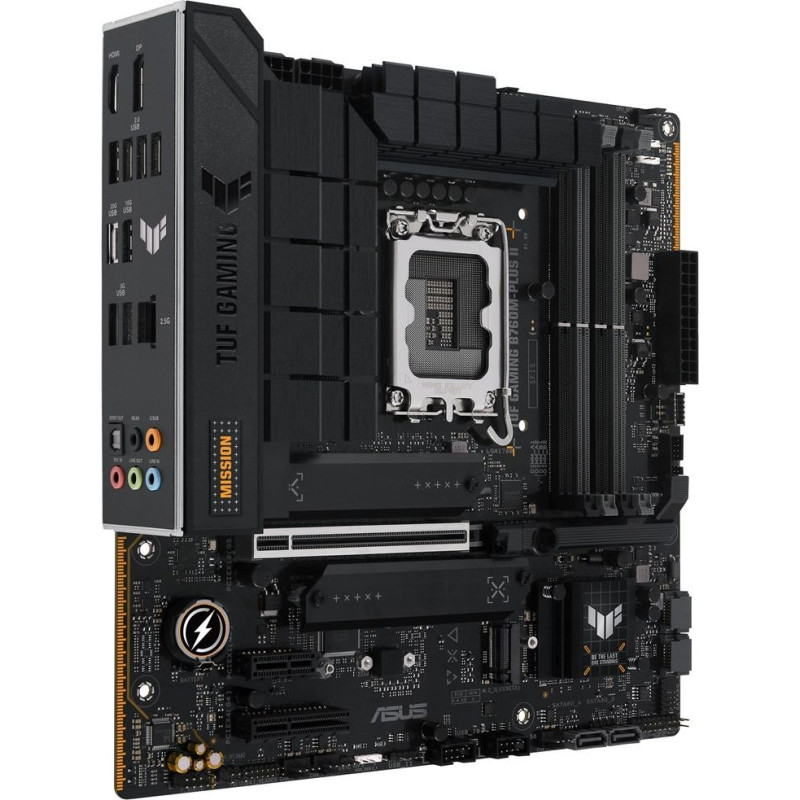

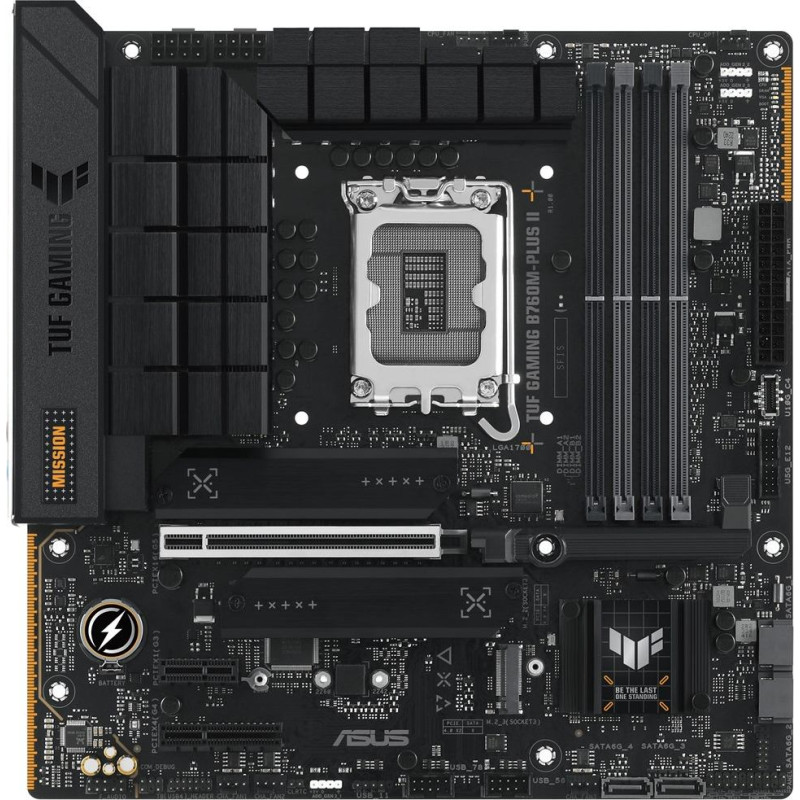

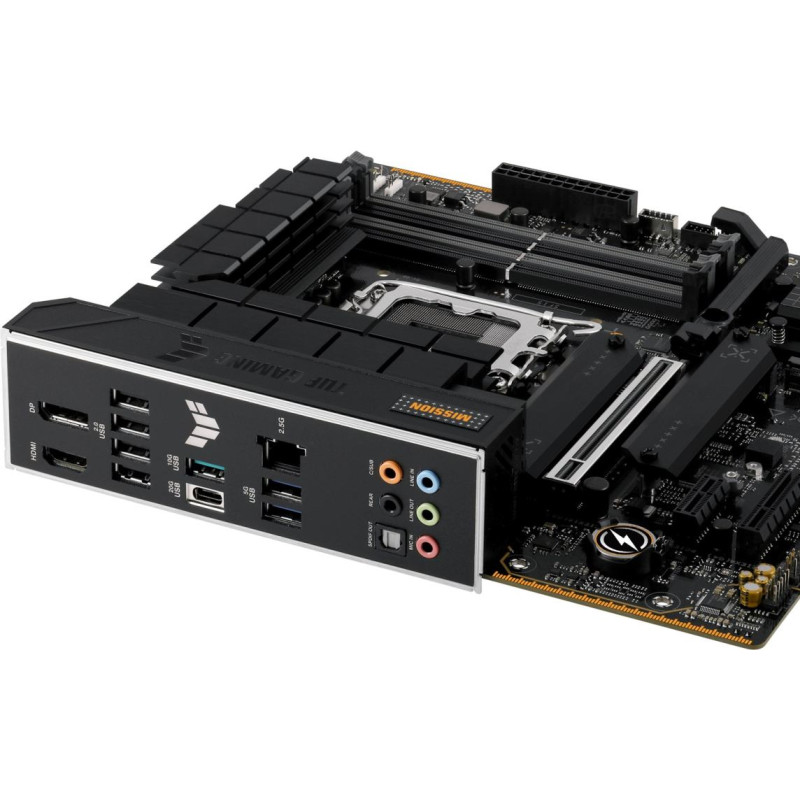

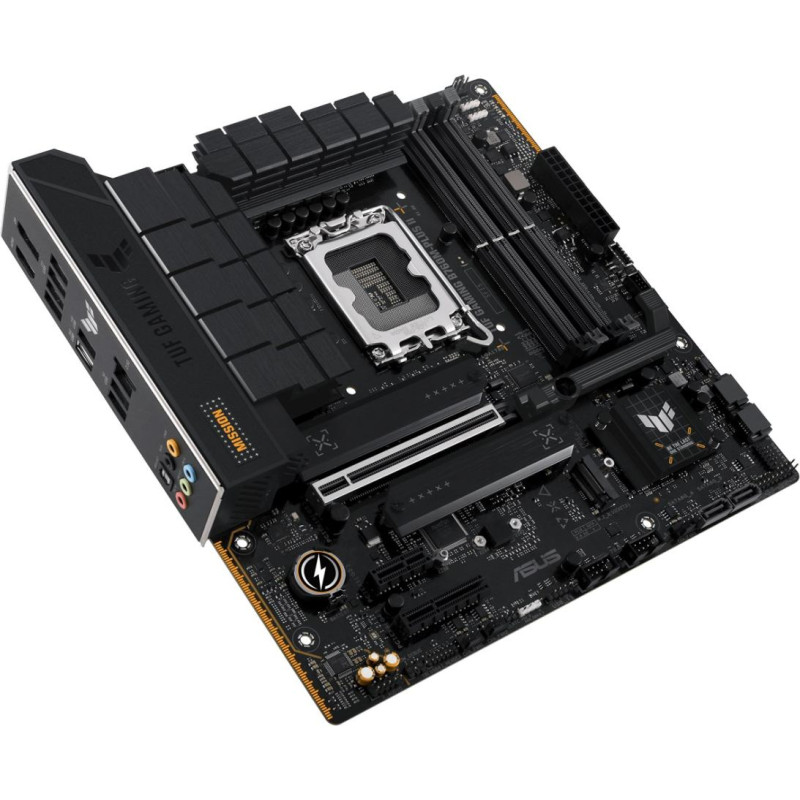

Asus TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

Asus TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 163104
Product Code: 90MB1HD0-M0EAY0
Barcode 4711387469798
130.78€
(Ex Tax: 105.47€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Supported processor socketsLGA 1700
Compatible processor seriesIntel® Core™ i3
Processor manufacturerIntel
Parallel processing technology supportNot supported
Windows operating systems supportedWindows 11
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Motherboard chipset familyIntel
Motherboard form factormicro ATX
ECC сompatibilityNon-ECC
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)7800 MHz
Supported memory clock speeds5800
Unbuffered memoryYes
Memory channelsDual-channel
Maximum internal memory192 GB
Height50 mm
Depth244 mm
Width244 mm
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiNo
Ethernet LANYes
USB 2.0 connectors3
Number of SATA III connectors4
EPS power connector (8-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel audio connectorYes
Thunderbolt headers1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of chassis fan connectors3
CPU fan connectorYes
ATX Power connector (24-pin)Yes
12V power connectorYes
BIOS typeUEFI AMI
Package weight1.65 kg
Package width280 mm
Package depth265 mm
Package height71 mm
Screws includedYes
Cables includedSATA
Number of HDDs supported4
RAID levels1
Number of storage drives supported7
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD

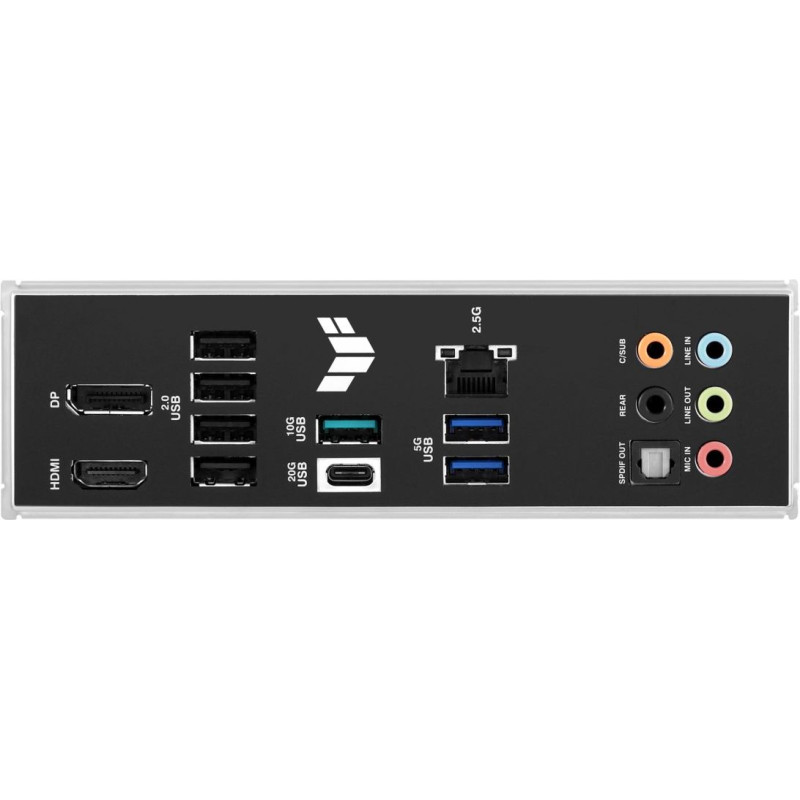

USB 3.2 Gen 2x2 Type-C ports quantity1
S/PDIF out portYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 2.0 ports quantity4
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DisplayPorts quantity1
Microphone inYes
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots3
Weight982 g
WarningsBefore starting any maintenance or installation, disconnect the product from the power supply.
