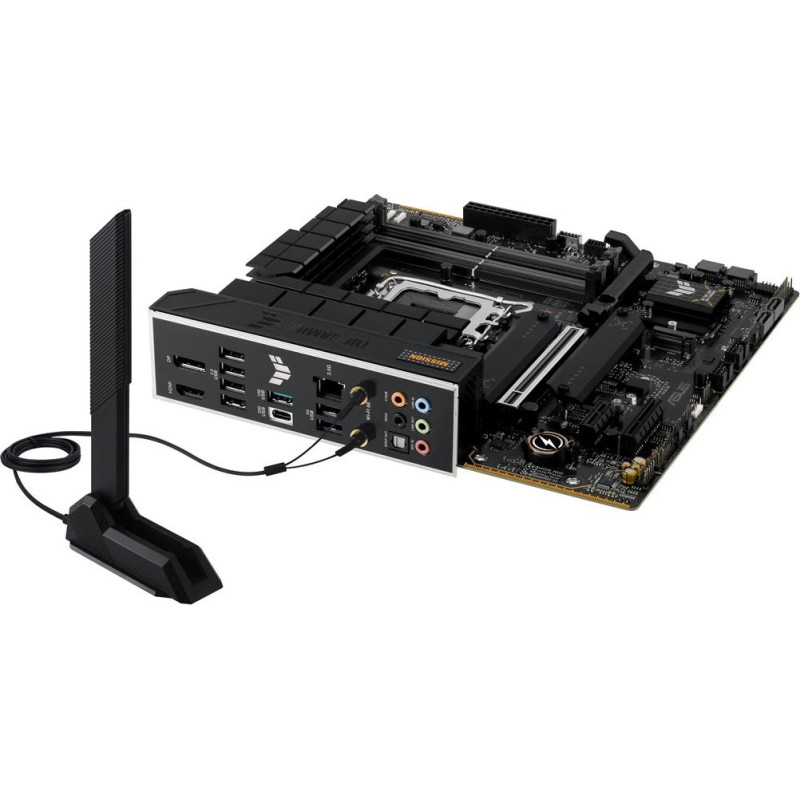

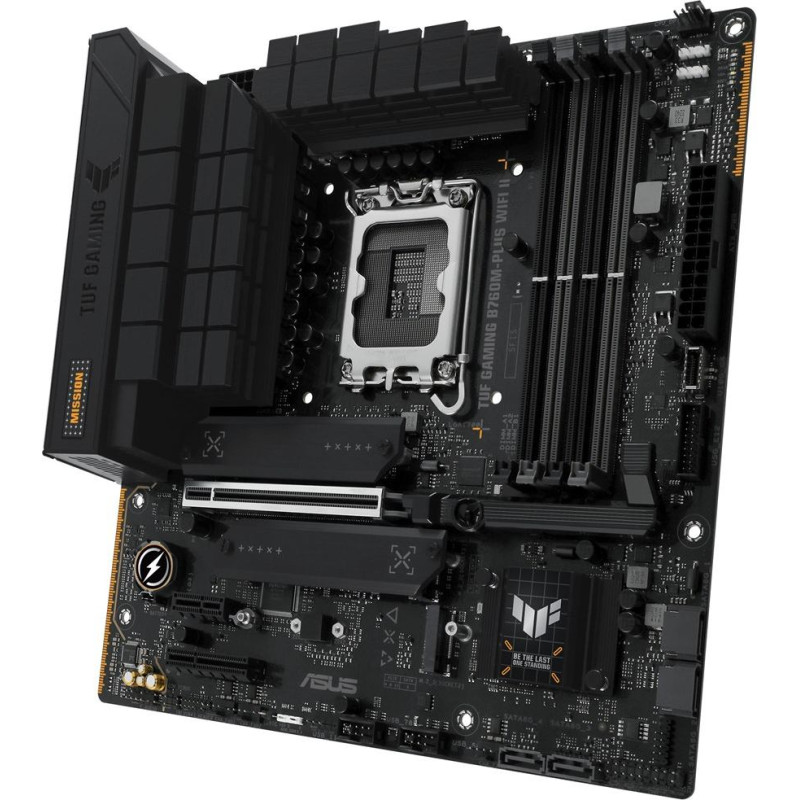

Asus TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

Asus TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 163126
Product Code: 90MB1HE0-M0EAY0
Barcode 4711387461365
185.07€
(Ex Tax: 149.25€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i7
Supported processor socketsLGA 1700
Processor manufacturerIntel
Parallel processing technology supportNot supported
Motherboard chipset familyIntel
Cooling typePassive
Motherboard form factormicro ATX
Product colourBlack
Windows operating systems supportedWindows 11
Power source typeATX
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Supported memory clock speed (max)7800 MHz
Number of memory slots4
ECC сompatibilityNon-ECC
Supported memory clock speeds6000
Maximum internal memory192 GB
Unbuffered memoryYes
Memory channelsDual-channel
Width244 mm
Depth244 mm
Wi-FiYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Bluetooth version5.3
Wi-Fi standardsWi-Fi 6E (802.11ax)
BluetoothYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
RGB LED pin headerYes
12V power connectorYes
USB 2.0 connectors3
Number of SATA III connectors4
CPU fan connectorYes
Chassis intrusion connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Front panel audio connectorYes
EPS power connector (8-pin)Yes
Thunderbolt headers1
ATX Power connector (24-pin)Yes
Number of chassis fan connectors3
BIOS typeUEFI AMI
Package height67.5 mm
Package depth275 mm
Package width275 mm
Package weight1.65 kg
Cables includedSATA
User guideYes
Number of storage drives supported7
Number of HDDs supported4
RAID levels1
Supported storage drive interfacesM.2, SATA III
RAID supportYes
Supported storage drive typesHDD & SSD
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2

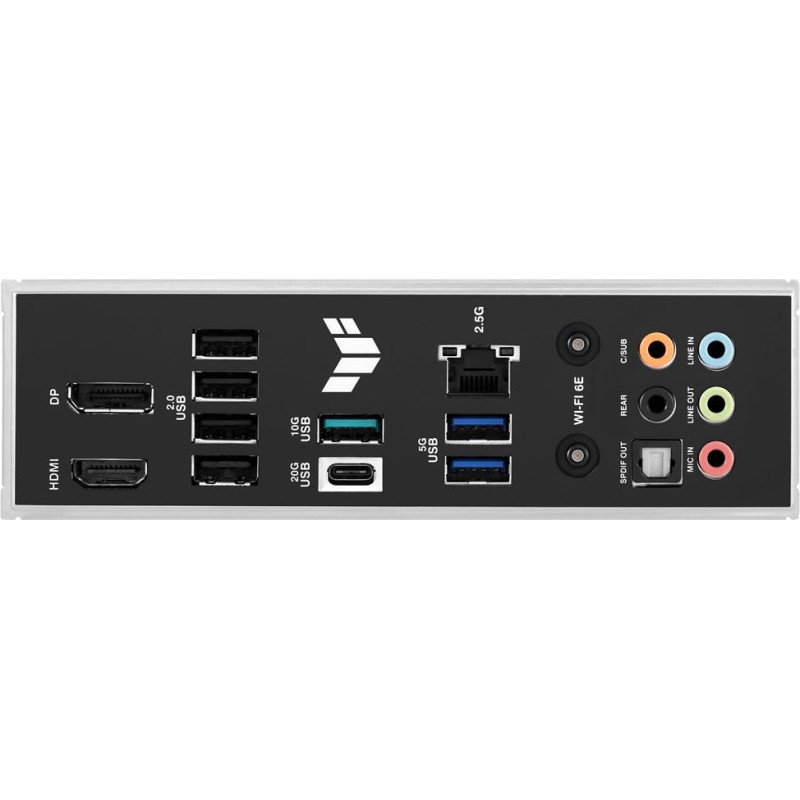

Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
S/PDIF out portYes
DisplayPort version1.4
HDMI version2.1
HDMI ports quantity1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
PCI Express x16 (Gen 5.x) slots1
PCI Express x4 (Gen 4.x) slots1
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots3
Weight982 g
WarningsDo not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
