Home Computers and equipment Computer components Motherboard Asus 90MB1FY0-M0EAY0 motherboard Intel B760 LGA 1700 ATX

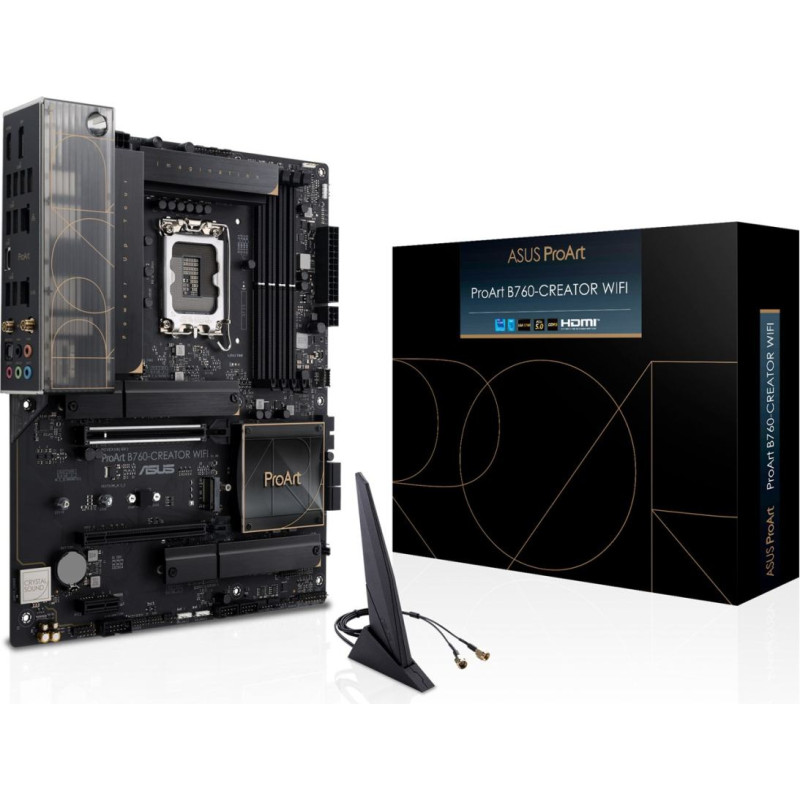

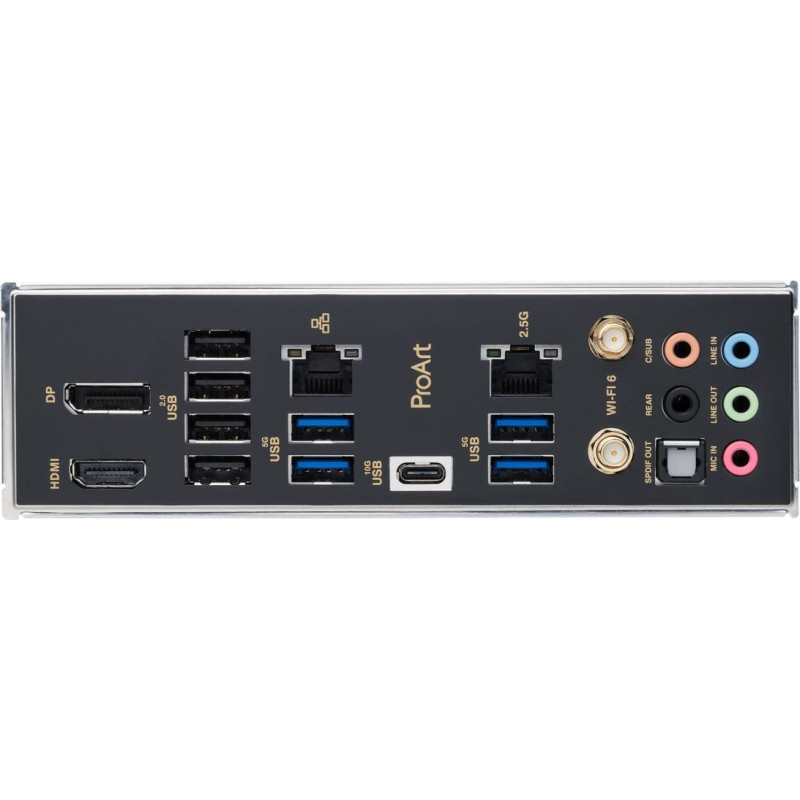

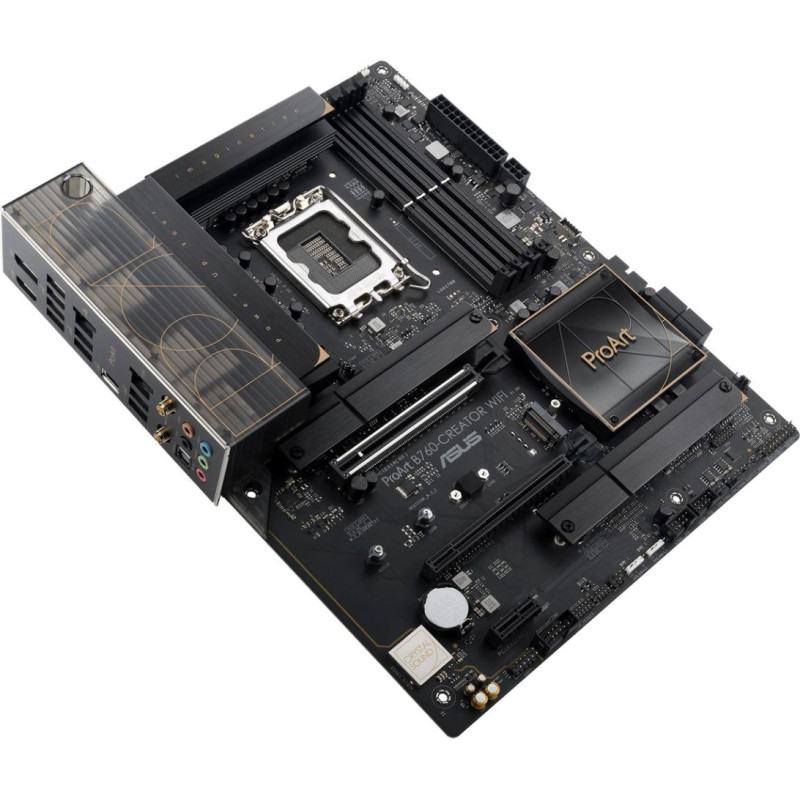

Asus 90MB1FY0-M0EAY0 motherboard Intel B760 LGA 1700 ATX

Asus 90MB1FY0-M0EAY0 motherboard Intel B760 LGA 1700 ATX

Delivery to the store takes 3 - 7 business days.
ID: 163127
Product Code: 90MB1FY0-M1EAY0
Barcode 4711387275962
225.05€
(Ex Tax: 181.49€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i3
Maximum number of SMP processors1
Processor manufacturerIntel
Supported processor socketsLGA 1700
Cooling typeliquid
Motherboard chipsetIntel B760
Motherboard form factorATX
Audio output channels7.1 channels
Motherboard chipset familyIntel
Memory channelsDual-channel
Maximum internal memory192 GB
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Wi-Fi standards802.11a
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
WLAN controller modelIntel Wi-Fi 6 AX201
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 2.0 connectors2
Power fan connectorYes
ATX Power connector (24-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Audio connectorYes
Supported storage drive typesSSD
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB connector typeUSB Type-A
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 2.0 ports quantity6
S/PDIF out portYes
USB 3.2 Gen 2x2 Type-C ports quantity1
Headphone outputs5
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots3
PCI Express x16 (Gen 5.x) slots1
PCI Express x16 (Gen 4.x) slots1
WarningsAvoid direct contact with electronics to prevent electrostatic damage.
