Home Computers and equipment Computer components Motherboard Asus TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX motherboard

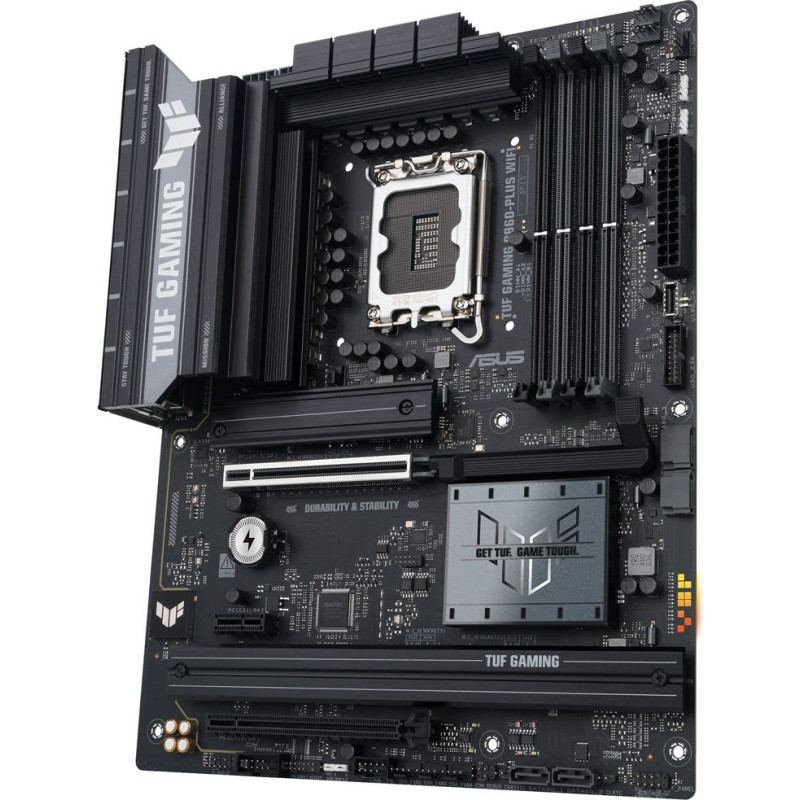

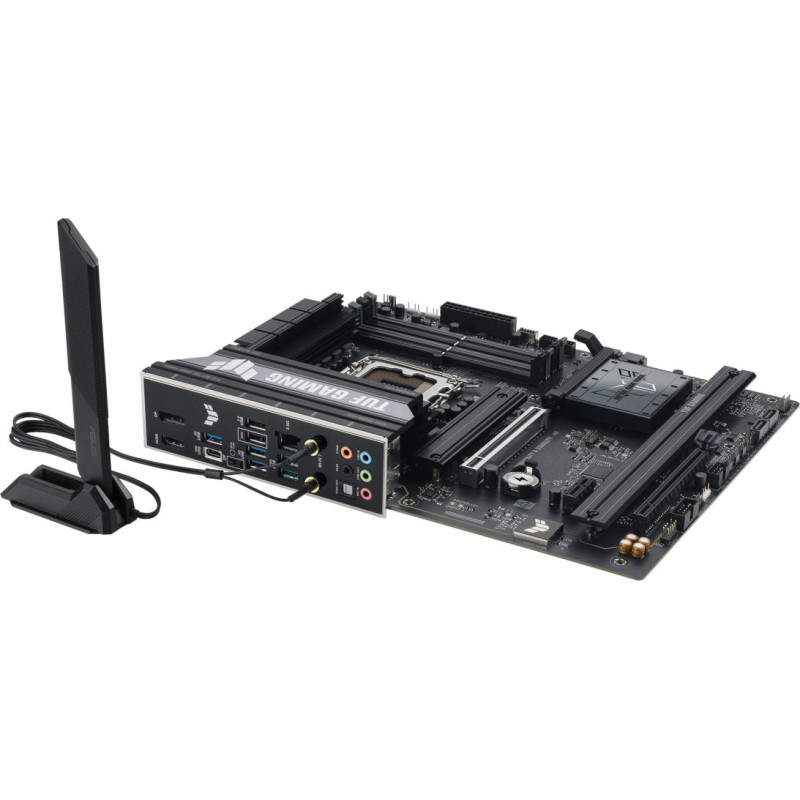

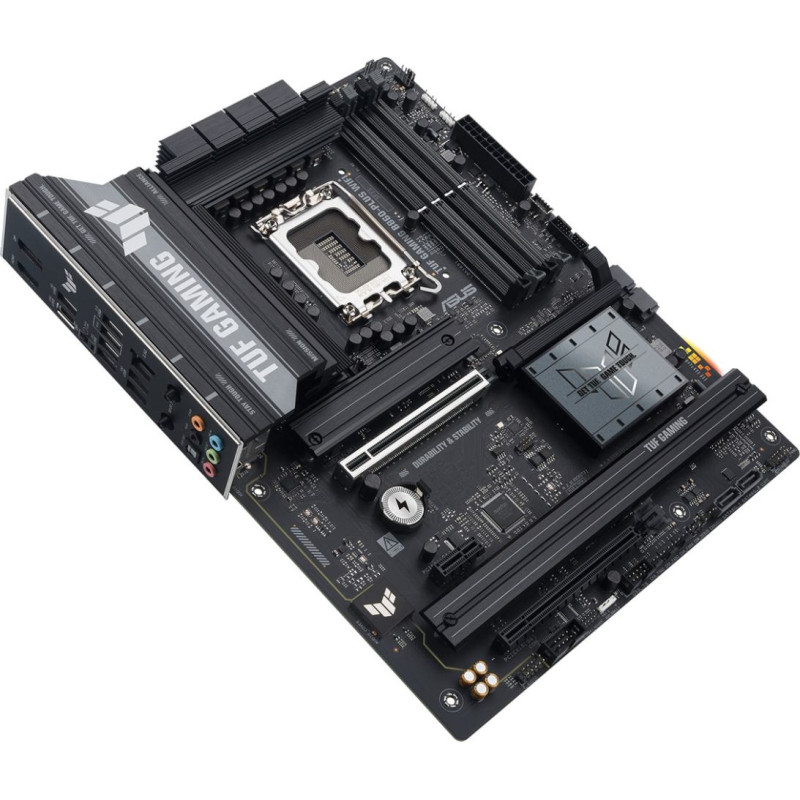

Asus TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX motherboard

Asus TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX motherboard

Delivery to the store takes 3 - 7 business days.
ID: 163131
Product Code: 90MB1JL0-M0EAY0
Barcode 4711387815144
178.19€
(Ex Tax: 143.70€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1851
Processor socketLGA 1851 (Socket V1)
Processor manufacturerIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Parallel processing technology supportNot supported
On-board graphics cardNo
Audio output channels7.1 channels
Product colourBlack
Motherboard chipsetIntel B860
Windows operating systems supportedWindows 11
Motherboard chipset familyIntel
Motherboard form factorATX
Unbuffered memoryYes
Maximum internal memory256 GB
Memory channelsDual-channel
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Number of memory slots4
ECC сompatibilityNon-ECC
Width305 mm
Depth244 mm
BluetoothYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
Ethernet LANYes
Wi-FiYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Thunderbolt headers1
USB 2.0 connectors1
S/PDIF out connectorYes
Front panel connectorYes
CPU fan connectorYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
ATX Power connector (24-pin)Yes
Number of COM connectors1
Number of SATA III connectors4
Front panel audio connectorYes
12V power connectorYes
Chassis intrusion connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of chassis fan connectors4
BIOS typeUEFI AMI
Package depth273 mm
Package weight2.1 kg
Package height68 mm
Package width353 mm
Cables includedSATA
Antenna includedYes
Screws includedYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
RAID levels1
RAID supportYes
Number of storage drives supported7
S/PDIF out portYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
DisplayPorts quantity1
WiFi-AP antenna jack1
USB 2.0 ports quantity2
USB 3.2 Gen 2x2 Type-C ports quantity1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots3
PCI Express x16 (Gen 5.x) slots1
PCI Express x1 (Gen 4.x) slots1
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
2nd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
