Home Computers and equipment Computer components Motherboard MSI B860M GAMING PLUS WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX

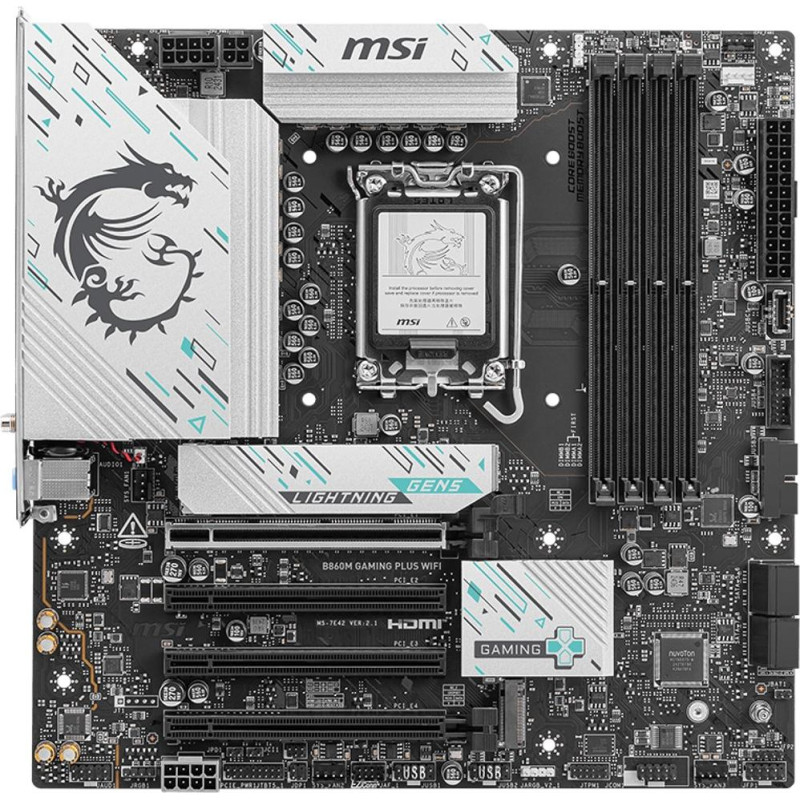

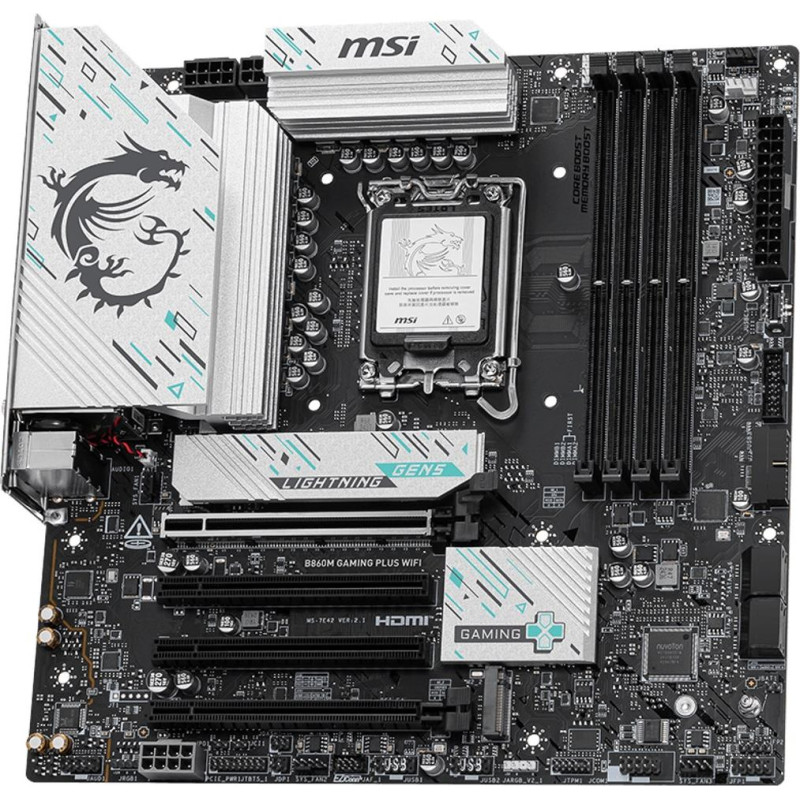

MSI B860M GAMING PLUS WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX

MSI

MSI B860M GAMING PLUS WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX

Delivery to the store takes 3 - 7 business days.
ID: 163134
Product Code: B860M GAMING PLUS WIFI
Barcode 4711377286558
171.57€
(Ex Tax: 138.36€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1851 (Socket V1)
Maximum internal memory supported by processor256 GB
Processor manufacturerIntel
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Motherboard chipsetIntel B860
Audio chipRealtek ALC897
Product colourBlack
Windows operating systems supportedWindows 11 x64
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Supported memory clock speeds4800
Maximum internal memory256 GB
Memory channelsDual-channel
Supported memory typesDDR5-SDRAM
ECC сompatibilityNon-ECC
Memory slots typeDIMM
Supported memory clock speed (max)8800 MHz
Number of memory slots4
Width243.8 mm
Depth243.8 mm
BluetoothYes
Ethernet interface type5 Gigabit Ethernet
Bluetooth version5.4
Top Wi-Fi standardWi-Fi 7 (802.11be)
WLAN controller modelKiller Wi-Fi 7 1750x
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANYes
Wi-FiYes
USB 2.0 connectors4
Total number of SATA connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Number of RGB LED pin headers3
RGB LED pin headerYes
Number of water pump connectors1
Number of CPU fan connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
CPU fan connectorYes
BIOS typeUEFI AMI
Supported storage drive typesHDD & SSD
RAID levels10
Number of storage drives supported7
Number of HDDs supported4
RAID supportYes
Supported storage drive interfacesM.2, Micro SATA III
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
HDMI version2.1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
Number of M.2 (M) slots3
PCI Express x16 (Gen 5.x) slots1
1st M.2 highest PCI Express generation5.0
3rd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
PCI Express x16 (Gen 4.x) slots3
2nd M.2 largest key size2280
3rd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
