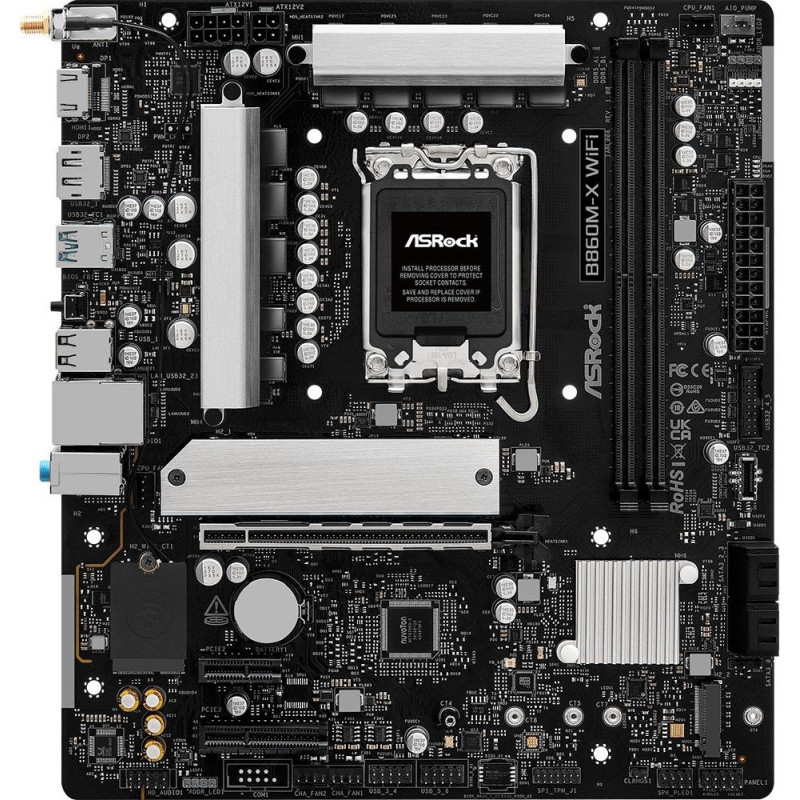

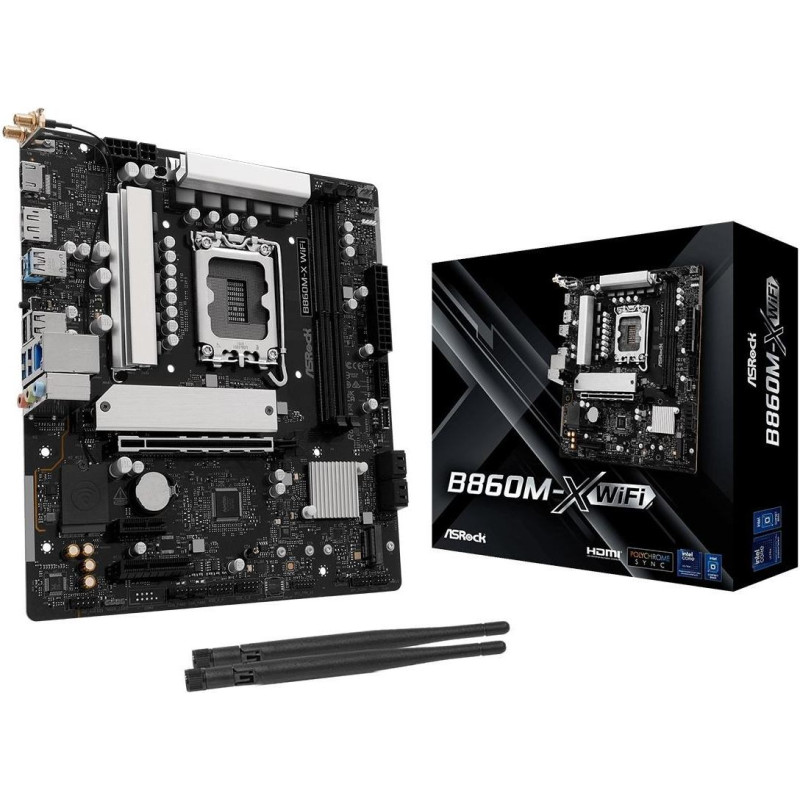

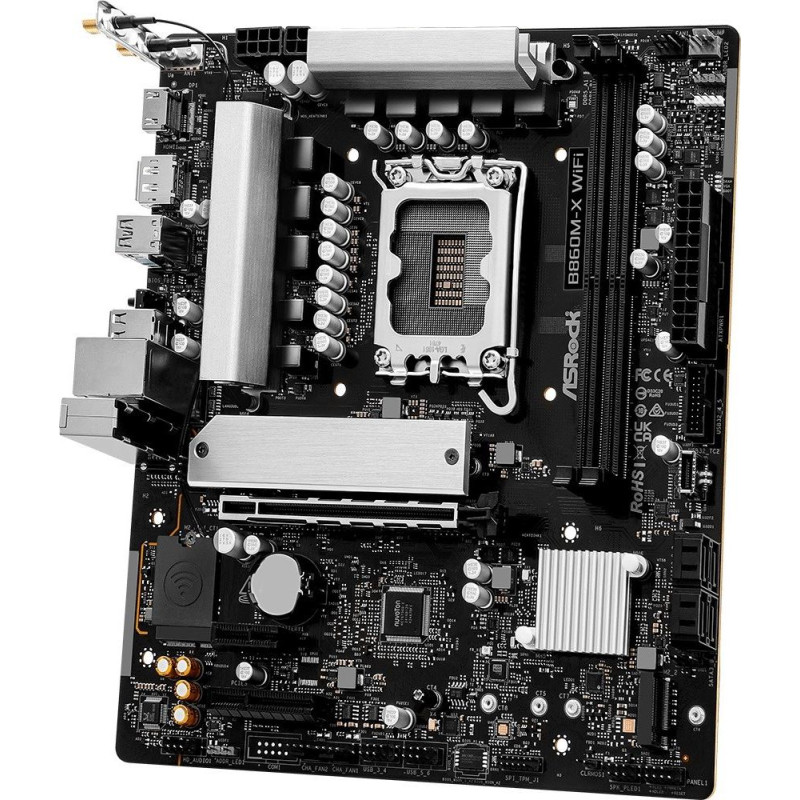

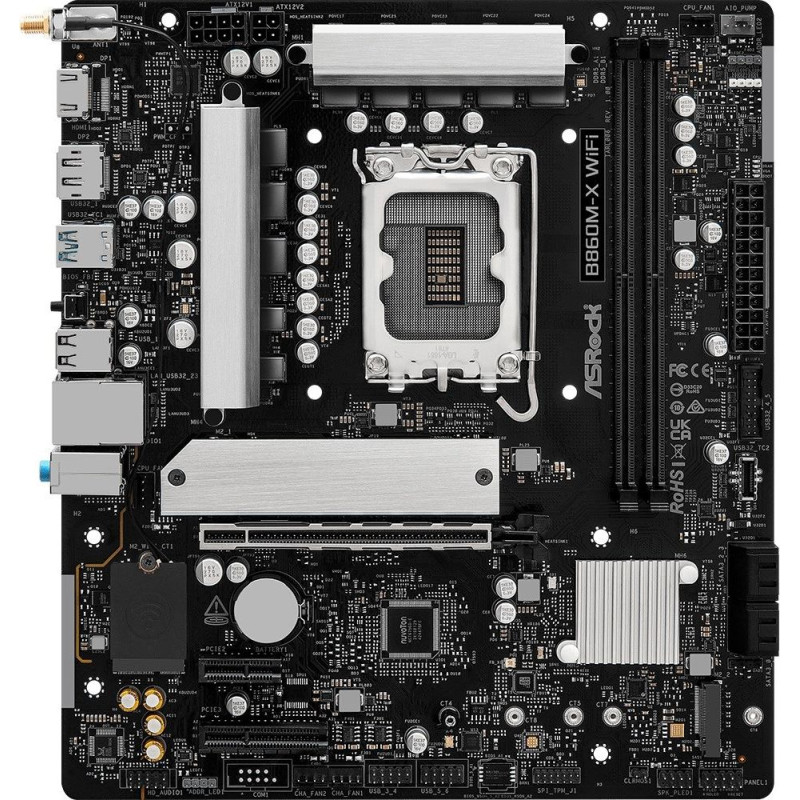

Asrock B860M-X WiFi motherboard

Asrock B860M-X WiFi motherboard

Out Of Stock
ID: 163139
Product Code: B860M-X WIFI
Barcode 4711581490413
124.71€
(Ex Tax: 100.57€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Supported processor socketsLGA 1851
HDCPYes
On-board graphics card familyIntel Iris Xe Graphics
Maximum resolution7680 x 4320 pixels
CertificationFCC, CE, ErP/EuP
Motherboard chipsetIntel B860
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Audio chipRealtek ALC897
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Memory channelsDual-channel
Unbuffered memoryYes
ECC сompatibilityNon-ECC
Number of memory slots2
Supported memory typesDDR5-SDRAM
Maximum internal memory128 GB
Memory slots typeDIMM
Depth218 mm
Width244 mm
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
Bluetooth version5.3
Ethernet LAN data rates10,100,1000,2500 Mbit/s
LAN controllerDragon RTL8125BG
Wi-FiYes
MU-MIMOYes
Top Wi-Fi standardWi-Fi 6E (802.11axe)
Wi-Fi standards802.11g
Front panel audio connectorYes
USB 2.0 connectors4
Number of SATA III connectors4
TPM connectorYes
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Number of water pump connectors1
RGB LED pin headerYes
Number of chassis fan connectors2
12V power connectorYes
Number of CPU fan connectors2
Number of RGB LED pin headers1
ATX Power connector (24-pin)Yes
BIOS typeUEFI AMI
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
RAID levels10
Number of storage drives supported6
RAID supportYes
Supported storage drive typesHDD & SSD
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 2.0 ports quantity2
Headphone outputs1
Ethernet LAN (RJ-45) ports1
Flashback BIOS buttonYes
USB connector typeUSB Type-C
MIC input1
HDMI ports quantity1
DisplayPort version1.4
DisplayPorts quantity1
Antennas quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Number of SATA III connectors4
PCI Express x16 (Gen 5.x) slots1
1st M.2 largest key size2280
PCI Express x16 (Gen 4.x) slots1
2nd M.2 highest PCI Express generation4.0
1st M.2 highest PCI Express generation5.0
Number of M.2 (M) slots4
2nd M.2 largest key size2280
WarningsDo not open or modify the motherboard to prevent damage.
