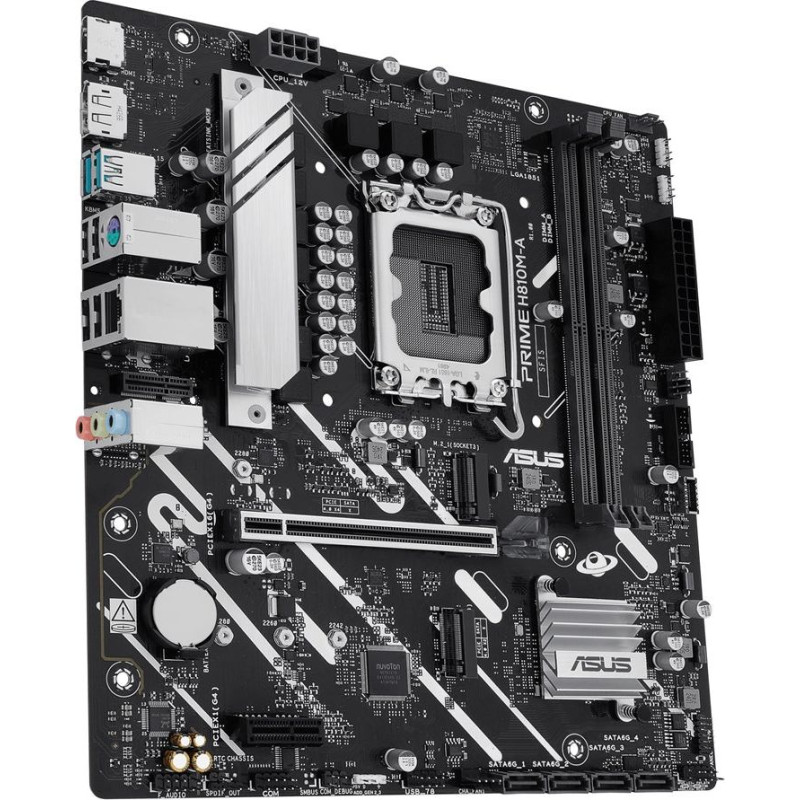

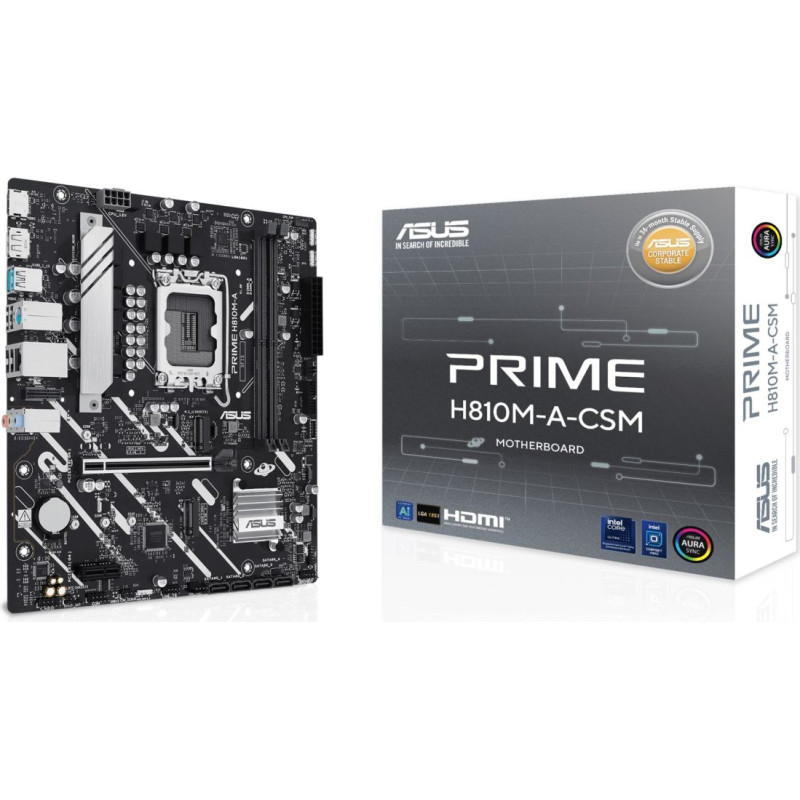

Asus PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX motherboard

Asus PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX motherboard

Delivery to the store takes 3 - 7 business days.
ID: 163140
Product Code: 90MB1KK0-M0EAYC
Barcode 4711387844625
121.71€
(Ex Tax: 98.15€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1851
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Parallel processing technology supportNot supported
On-board graphics cardNo
Power source typeATX
Windows operating systems supportedWindows 10 x64
Motherboard chipsetIntel H810
Motherboard form factormicro ATX
Product colourBlack
Audio output channels7.1 channels
Motherboard chipset familyIntel
Unbuffered memoryYes
Maximum internal memory128 GB
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Number of memory slots2
Supported memory clock speed (max)6400 MHz
ECC сompatibilityNon-ECC
Height37 mm
Width244 mm
Depth222 mm
Wake-on-LAN readyYes
LAN controllerIntel I219V
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Number of SATA III connectors4
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
USB 2.0 connectors1
Number of COM connectors1
S/PDIF out connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Front panel connectorYes
Front panel audio connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
RGB LED pin headerYes
TPM connectorYes
Number of CPU fan connectors1
Number of RGB LED pin headers3
Number of EPS power connectors (8-pin)1
BIOS typeUEFI AMI
Package width270 mm
Package weight782 g
Package depth263 mm
Package height51.5 mm
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Number of HDDs supported4
Number of storage drives supported6
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
DisplayPort version1.4
USB 2.0 ports quantity4
PS/2 ports quantity1
HDMI version2.1
HDMI ports quantity1
Microphone inYes
Line-inYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Number of M.2 (M) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x1 (Gen 4.x) slots1
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
1st M.2 largest key size2280
Weight534 g
Number of M.2 (E) slots1
WarningsDo not open or modify the motherboard to prevent damage.
