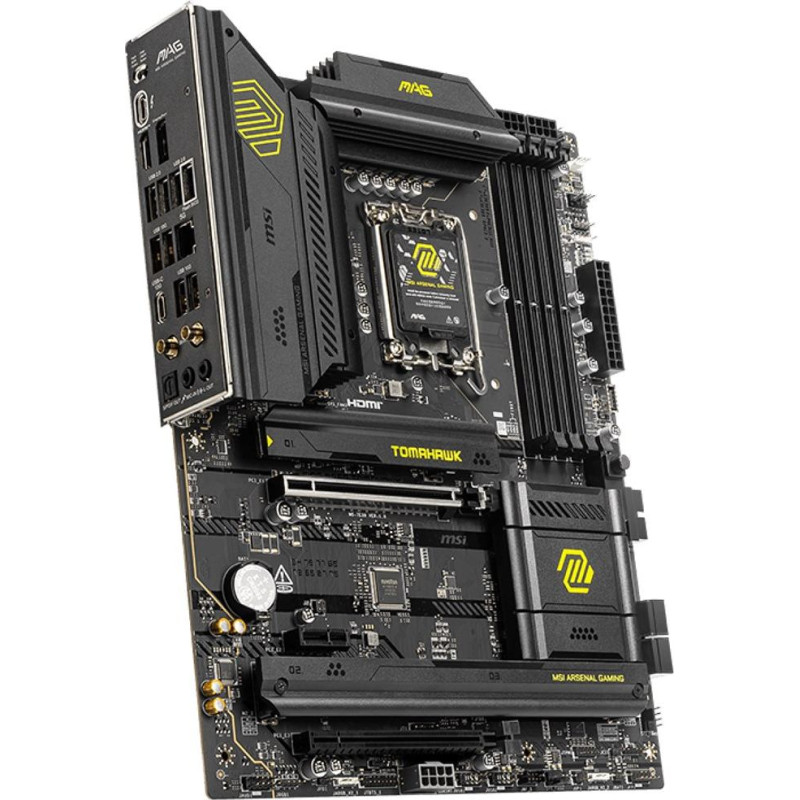

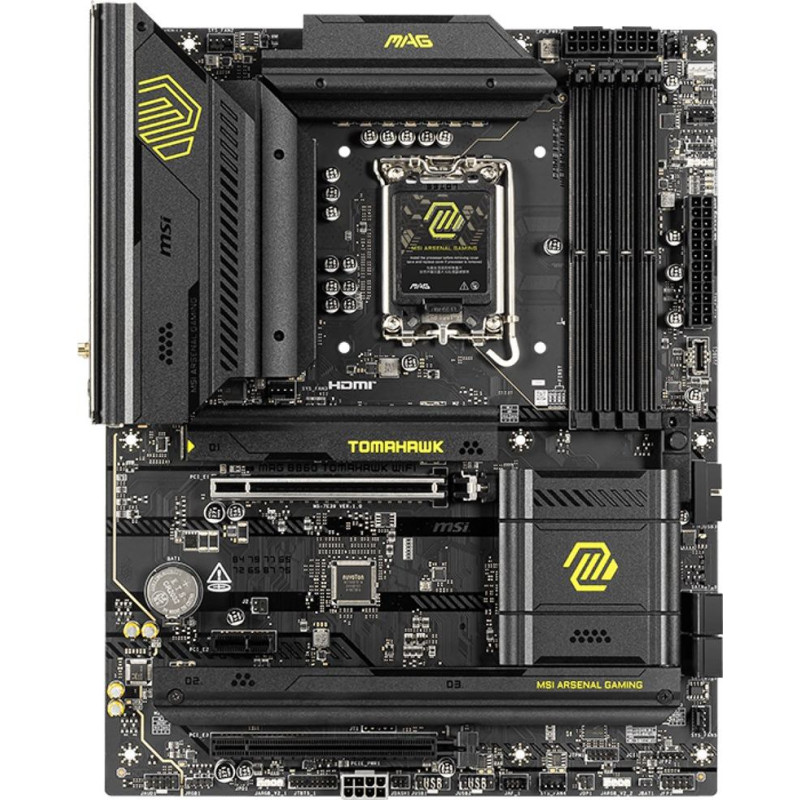

MSI MAG B860 TOMAHAWK WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX

MSI

MSI MAG B860 TOMAHAWK WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX

Delivery to the store takes 3 - 7 business days.
ID: 163144
Product Code: MAG B860 TOMAHAWK WIFI
Barcode 4711377279642
218.93€
(Ex Tax: 176.56€)
Payment options

Delivery options

omniva  venipak



Description
Description
Supported processor socketsLGA 1851
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Maximum internal memory supported by processor256 GB
On-board graphics cardNo
Motherboard chipsetIntel B860
Product colourBlack
Audio chipRealtek ALC897
Motherboard chipset familyAMD
Audio output channels7.1 channels
Windows operating systems supportedWindows 11 x64
Motherboard form factorATX
Supported memory clock speeds9200 MHz
Maximum internal memory256 GB
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speed (max)9200 MHz
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Number of memory slots4
Width243.8 mm
Depth304.8 mm
BluetoothYes
Wi-Fi standards802.11a
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Ethernet LANYes
WLAN controller modelKiller Wi-Fi 7 1750x
Bluetooth version5.4
Ethernet interface type5 Gigabit Ethernet
Total number of SATA connectors4
CPU fan connectorYes
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors4
Number of SATA III connectors4
Number of water pump connectors1
Number of CPU fan connectors1
Number of RGB LED pin headers3
RGB LED pin headerYes
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
BIOS typeUEFI AMI
Supported storage drive typesHDD & SSD
RAID levels1
Supported storage drive interfacesM.2, Micro SATA III
RAID supportYes
Number of HDDs supported4
Number of storage drives supported7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.1
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2x2 Type-C ports quantity1
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
2nd M.2 highest PCI Express generation4.0
Number of M.2 (M) slots3
1st M.2 highest PCI Express generation5.0
PCI Express x16 (Gen 5.x) slots1
2nd M.2 largest key size22110
1st M.2 largest key size2280
PCI Express x1 slots1
PCI Express x16 (Gen 4.x) slots1
WarningsIn case of installation problems, contact a qualified service technician.
